I-TASSER results for job id S802148

(Click on S802148_results.tar.bz2 to download the tarball file including all modeling results listed on this page. Click on Annotation of I-TASSER Output to read the instructions for how to interpret the results on this page. Model results are kept on the server for 60 days, there is no way to retrieve the modeling data older than 2 months)

Submitted Sequence in FASTA format

>protein
MYRMQLLSCIALSLALVTNSAPTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRML
TFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSE
TTFMCEYADETATIVEFLNRWITFCQSIISTLT

Predicted Secondary Structure

Sequence	20 40 60 80 100 120 140 \| \| \| \| \| \| \| MYRMQLLSCIALSLALVTNSAPTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT
Prediction	CCHHHHHHHHHHHHHHHHCCCCCCCCCCCHHHHHHHHHHHHHHHHHHCCCCCCCCHHHHHCCCCCCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCHHHHHHHHHHHHHHCCCCCCCCSSSCCCCHHHHHHHHHHHHHHHHHHHHHCC
Conf.Score	950199999999999992899989886346999999999999999860554453104552203047875006789999999987699984125304546542888877777664201577542001265420299999999999999997329
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 120 140 \| \| \| \| \| \| \| MYRMQLLSCIALSLALVTNSAPTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT
Prediction	744231110110101011333234554653353044004303301430553754413323514132264344253041036304304611714545634354542033031103303347342414246431303400440031024125438
	Values range from 0 (buried residue) to 9 (highly exposed residue)

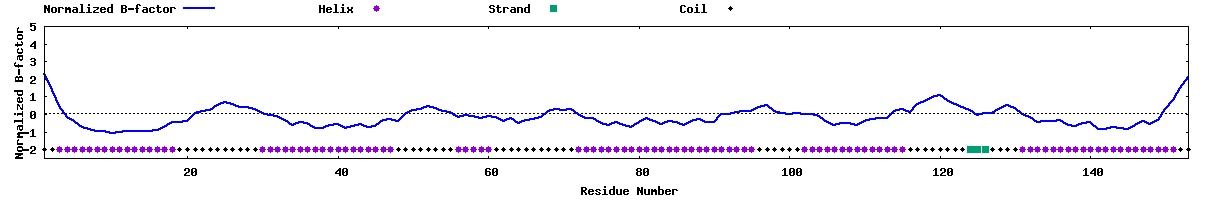

Predicted normalized B-factor

(B-factor is a value to indicate the extent of the inherent thermal mobility of residues/atoms in proteins. In I-TASSER, this value is deduced from threading template proteins from the PDB in combination with the sequence profiles derived from sequence databases. The reported B-factor profile in the figure below corresponds to the normalized B-factor of the target protein, defined by B=(B'-u)/s, where B' is the raw B-factor value, u and s are respectively the mean and standard deviation of the raw B-factors along the sequence. Click here to read more about predicted normalized B-factor)

Top 10 threading templates used by I-TASSER

(I-TASSER modeling starts from the structure templates identified by LOMETS from the PDB library. LOMETS is a meta-server threading approach containing multiple threading programs, where each threading program can generate tens of thousands of template alignments. I-TASSER only uses the templates of the highest significance in the threading alignments, the significance of which are measured by the Z-score, i.e. the difference between the raw and average scores in the unit of standard deviation. The templates in this section are the 10 best templates selected from the LOMETS threading programs. Usually, one template of the highest Z-score is selected from each threading program, where the threading programs are sorted by the average performance in the large-scale benchmark test experiments.)

Rank

PDB
Hit

Iden1

Iden2

Cov

Norm.
Z-score

Download
Align.

                  20                  40                  60                  80                 100                 120                 140
                   |                   |                   |                   |                   |                   |                   |

Sec.Str
Seq

CCHHHHHHHHHHHHHHHHCCCCCCCCCCCHHHHHHHHHHHHHHHHHHCCCCCCCCHHHHHCCCCCCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCHHHHHHHHHHHHHHCCCCCCCCSSSCCCCHHHHHHHHHHHHHHHHHHHHHCC
MYRMQLLSCIALSLALVTNSAPTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT

1irlA

0.99

0.86

0.87

2.73

Download

--------------------APTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTAKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT

7ra9A

0.86

0.71

0.82

2.68

Download

-------------------------STKKTQLQLEHLLLDLQMILNMLNNYDNPKLTRLLTFKFYMPKKATSLKHLQCLEEELKPLEEALNAAGDDP--KTIRDVVSNINVFVLELKGSETTFMCEYADETATIIEFLNRWITFCQSIISTLT

1irl

0.99

0.86

0.87

6.77

Download

--------------------APTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTAKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT

1irl

0.98

0.86

5.47

Download

--------------------APTSSSTKTQ-LQLEHLLLDLQMILNGINNYKNPKLTRMLTAKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT

1irlA

0.99

0.86

0.87

2.54

Download

--------------------APTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTAKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT

1irl

0.98

0.86

8.57

Download

--------------------APTSSSTKTQ-LQLEHLLLDLQMILNGINNYKNPKLTRMLTAKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTL-

4zf7A

0.74

0.63

0.82

3.85

Download

-----------------------SSSTKEAQQQLEQLLLDLQLLLNGVKNYES---PRMLTFKFYMPKKATELTHLQCLAEELKLLEEVLYLAQSKH-LTDIKELMSNINVTLLKLKGSETSFKCEYDDETVTITEFLNKWITFCQSIFSTLT

7ra9A

0.86

0.71

0.82

1.51

Download

-------------------------STKKTQLQLEHLLLDLQMILNMLNNYDNPKLTRLLTFKFYMPKKATSLKHLQCLEEELKPLEEALNAAGDDPKTI--RDVVSNINVFVLELKGSETTFMCEYADETATIIEFLNRWITFCQSIISTLT

1m47A

0.96

0.80

5.20

Download

-------------------------STKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQNFHLR--PRDLISNINVIVLELKG----FMCEYADETATIVEFLNRWITFCQSIISTLT

1irlA

0.99

0.86

0.87

5.61

Download

--------------------APTSSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTAKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFCQSIISTLT

(a)	All the residues are colored in black; however, those residues in template which are identical to the residue in the query sequence are highlighted in color. Coloring scheme is based on the property of amino acids, where polar are brightly coloured while non-polar residues are colored in dark shade. (more about the colors used)
(b)	Rank of templates represents the top ten threading templates used by I-TASSER.
(c)	Ident1 is the percentage sequence identity of the templates in the threading aligned region with the query sequence.
(d)	Ident2 is the percentage sequence identity of the whole template chains with query sequence.
(e)	Cov represents the coverage of the threading alignment and is equal to the number of aligned residues divided by the length of query protein.
(f)	Norm. Z-score is the normalized Z-score of the threading alignments. Alignment with a Normalized Z-score >1 mean a good alignment and vice versa.
(g)	Download Align. provides the 3D structure of the aligned regions of the threading templates.
(h)	The top 10 alignments reported above (in order of their ranking) are from the following threading programs:
	1: MUSTER 2: SPARKS-X 3: HHSEARCH2 4: HHSEARCH I 5: Neff-PPAS 6: HHSEARCH 7: pGenTHREADER 8: PROSPECT2 9: SP3 10: FFAS03

Top 5 final models predicted by I-TASSER

(For each target, I-TASSER simulations generate a large ensemble of structural conformations, called decoys. To select the final models, I-TASSER uses the SPICKER program to cluster all the decoys based on the pair-wise structure similarity, and reports up to five models which corresponds to the five largest structure clusters. The confidence of each model is quantitatively measured by C-score that is calculated based on the significance of threading template alignments and the convergence parameters of the structure assembly simulations. C-score is typically in the range of [-5, 2], where a C-score of a higher value signifies a model with a higher confidence and vice-versa. TM-score and RMSD are estimated based on C-score and protein length following the correlation observed between these qualities. Since the top 5 models are ranked by the cluster size, it is possible that the lower-rank models have a higher C-score in rare cases. Although the first model has a better quality in most cases, it is also possible that the lower-rank models have a better quality than the higher-rank models as seen in our benchmark tests. If the I-TASSER simulations converge, it is possible to have less than 5 clusters generated; this is usually an indication that the models have a good quality because of the converged simulations.)

(By right-click on the images, you can export image file or change the configurations, e.g. modifying the background color or stopping the spin of your models)

Download Model 1 C-score=-0.01 (Read more about C-score) Estimated TM-score = 0.71±0.11 Estimated RMSD = 4.8±3.1Å	Download Model 2 C-score = -1.01	Download Model 3 C-score = -2.60	Download Model 4 C-score = -3.18	Download Model 5 C-score = -3.29

Proteins structurally close to the target in the PDB (as identified by TM-align)

(After the structure assembly simulation, I-TASSER uses the TM-align structural alignment program to match the first I-TASSER model to all structures in the PDB library. This section reports the top 10 proteins from the PDB that have the closest structural similarity, i.e. the highest TM-score, to the predicted I-TASSER model. Due to the structural similarity, these proteins often have similar function to the target. However, users are encouraged to use the data in the next section 'Predicted function using COACH' to infer the function of the target protein, since COACH has been extensively trained to derive biological functions from multi-source of sequence and structure features which has on average a higher accuracy than the function annotations derived only from the global structure comparison.)

Top 10 Identified stuctural analogs in PDB

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov	Alignment
1	1irl_	0.748	2.05	0.992	0.869	Download
2	7ra9A	0.687	2.37	0.857	0.824	Download
3	4zf7A	0.676	2.44	0.597	0.810	Download
4	4nejA	0.656	2.06	0.889	0.765	Download
5	4yqxA	0.636	2.50	0.521	0.778	Download
6	1pvhD	0.592	3.59	0.103	0.797	Download
7	1bbn_	0.591	3.10	0.133	0.784	Download
8	1f6fA	0.589	3.44	0.053	0.810	Download
9	1alu_	0.588	2.97	0.090	0.752	Download
10	1lki_	0.580	3.45	0.086	0.784	Download

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted function using COFACTOR and COACH

(This section reports biological annotations of the target protein by COFACTOR and COACH based on the I-TASSER structure prediction. While COFACTOR deduces protein functions (ligand-binding sites, EC and GO) using structure comparison and protein-protein networks, COACH is a meta-server approach that combines multiple function annotation results (on ligand-binding sites) from the COFACTOR, TM-SITE and S-SITE programs.)

Ligand binding sites

Rank	C-score	Cluster size	PDB Hit	Lig Name	Download Complex	Ligand Binding Site Residues
1	0.73	22	1py2A	FRH	Rep, Mult	54,55,58,59,61,62,63,64,65,82,85,89,92,93,131
2	0.15	4	1m4aA	MPE	Rep, Mult	51,55,56,59,62,92,93
3	0.12	3	1nbpA	MHC	Rep, Mult	47,51,55,90,93,94,102,105
4	0.12	3	1qvnC	FRI	Rep, Mult	49,56,60,133,136
5	0.12	4	2b5i0	PEPTIDE	Rep, Mult	55,58,62,63,64,65,81,82,84,85,88,89,92,127

	Download the residue-specific ligand binding probability, which is estimated by SVM.
	Download the all possible binding ligands and detailed prediction summary.
	Download the templates clustering results.
(a)	C-score is the confidence score of the prediction. C-score ranges [0-1], where a higher score indicates a more reliable prediction.
(b)	Cluster size is the total number of templates in a cluster.
(c)	Lig Name is name of possible binding ligand. Click the name to view its information in the BioLiP database.
(d)	Rep is a single complex structure with the most representative ligand in the cluster, i.e., the one listed in the Lig Name column. Mult is the complex structures with all potential binding ligands in the cluster.

Enzyme Commission (EC) numbers and active sites

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov	EC Number	Active Site Residues
1	0.232	2wpnB	0.536	3.56	0.088	0.732	1.12.7.2	NA
2	0.230	1yrqI	0.525	3.96	0.053	0.765	1.12.2.1	NA
3	0.230	1yqwR	0.523	3.99	0.059	0.771	1.12.2.1	NA
4	0.224	1cc1L	0.542	3.90	0.066	0.771	1.12.99.6	NA
5	0.219	3djlA	0.529	4.60	0.041	0.902	1.3.99.-	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the EC number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Gene Ontology (GO) terms

Rank	Cscore^GO	TM-score	RMSD^a	IDEN^a	Cov	PDB Hit	Associated GO Terms
Top 10 homologous GO templates in PDB
1	0.65	0.6636	1.95	0.97	0.76	1m49B	GO:0050672 GO:0046013 GO:0007186 GO:0043208 GO:0034105 GO:0005125 GO:0006955 GO:0019209 GO:0051024 GO:0045944 GO:0005615 GO:0007267 GO:0030101 GO:0030217 GO:0042523 GO:0006916 GO:0002903 GO:0042327 GO:0030246 GO:0031851 GO:0045822 GO:0032740 GO:0005576 GO:0030307 GO:0001933 GO:0007204 GO:0008083 GO:0007155 GO:0008284 GO:0007205 GO:0045582 GO:0050729 GO:0045591 GO:0005134 GO:0030890 GO:0001934 GO:0042102 GO:0050728 GO:0042104 GO:0048304
2	0.33	0.7484	2.05	0.99	0.87	1irlA	GO:0031851 GO:0030246 GO:0032740 GO:0005576 GO:0030307 GO:0001933 GO:0007204 GO:0008083 GO:0007155 GO:0008284 GO:0007205 GO:0045582 GO:0050729 GO:0045591 GO:0005134 GO:0030890 GO:0001934 GO:0042102 GO:0050728 GO:0042104 GO:0046013 GO:0050672 GO:0051024 GO:0045944 GO:0005615 GO:0007267 GO:0030101 GO:0030217 GO:0042523 GO:0048304 GO:0007186 GO:0043208 GO:0034105 GO:0005125 GO:0006955 GO:0019209 GO:0006916 GO:0002903 GO:0042327 GO:0045822
3	0.25	0.5887	3.44	0.05	0.81	1f6fA	GO:0005179 GO:0005576
4	0.25	0.5586	3.75	0.06	0.82	1buyA	GO:0043249 GO:0033574 GO:0042523 GO:0032496 GO:0010766 GO:0005615 GO:0051602 GO:0001666 GO:0048678 GO:0070555 GO:0006357 GO:0042541 GO:0043526 GO:0007568 GO:0046579 GO:0033189 GO:0043627 GO:0008284 GO:0071474 GO:0006915 GO:0055093 GO:0043499 GO:0007584 GO:0043066 GO:0005515 GO:0045893 GO:0007566 GO:0030218 GO:0045666 GO:0045740 GO:0032413 GO:0009651 GO:0008015 GO:0005576 GO:0005179 GO:0007165 GO:0005128
5	0.25	0.5795	3.13	0.09	0.75	1i1rB	GO:0005125 GO:0005138 GO:0005576 GO:0006955
6	0.24	0.5795	3.44	0.10	0.78	1il6A	GO:0005125 GO:0005138 GO:0005576 GO:0006955
7	0.24	0.5914	3.10	0.13	0.78	1bbnA	GO:0042102 GO:0045892 GO:0030183 GO:0005576 GO:0007565 GO:0014070 GO:0045671 GO:0045189 GO:0010155 GO:0051091 GO:0030890 GO:0008284 GO:0042493 GO:0045471 GO:0032736 GO:0043066 GO:0048304 GO:0008083 GO:0008203 GO:0005125 GO:0006968 GO:0002677 GO:0005515 GO:0042104 GO:0042523 GO:0045893 GO:0005615 GO:0045019 GO:0050727 GO:0050776 GO:0050871 GO:0006955 GO:0002674 GO:0007584 GO:0071288 GO:0035745 GO:0045944 GO:0042092 GO:0045191 GO:0042113 GO:0032733 GO:0034097 GO:0045582 GO:0042325 GO:0045348 GO:0005136 GO:0006935 GO:0050731 GO:0048295 GO:0005126
8	0.24	0.5775	3.43	0.09	0.78	2q7nB	GO:0051461 GO:0048708 GO:0033141 GO:0008083 GO:0005125 GO:0048286 GO:0031100 GO:0060463 GO:0060290 GO:0008284 GO:0005146 GO:0001974 GO:0042517 GO:0045835 GO:0019827 GO:0005102 GO:0042511 GO:0072108 GO:0010976 GO:0007275 GO:0005576 GO:0008285 GO:0060426 GO:0060708 GO:0016525 GO:0060707 GO:0045944 GO:0042503 GO:0048666 GO:0048861 GO:0007566 GO:0030324 GO:0005615 GO:0050731 GO:0046888 GO:0045595 GO:0048711 GO:0043410 GO:0046697 GO:0045651 GO:0033138 GO:0048644 GO:0060135 GO:0072307 GO:0070373 GO:0060041 GO:0006955
9	0.24	0.5783	3.88	0.07	0.82	1a7mA	GO:0050731 GO:0048666 GO:0010976 GO:0048708 GO:0016525 GO:0048861 GO:0048286 GO:0033138 GO:0005576 GO:0033141 GO:0043410 GO:0070373 GO:0005125 GO:0008083 GO:0045651 GO:0042503 GO:0060707 GO:0030324 GO:0005146 GO:0042511 GO:0005615 GO:0051461 GO:0045835 GO:0008284 GO:0060463 GO:0008285 GO:0060708 GO:0060426 GO:0019827 GO:0007566 GO:0048644 GO:0042517 GO:0048711 GO:0005102 GO:0072307 GO:0060135 GO:0031100 GO:0045595 GO:0060290 GO:0046697 GO:0001974 GO:0072108 GO:0060041 GO:0046888 GO:0045944 GO:0006955
10	0.23	0.5570	3.76	0.07	0.78	3oq3A	GO:0005576 GO:0009615 GO:0005615 GO:0005125 GO:0005126 GO:0006952

Consensus prediction of GO terms

Molecular Function GO:0005125 GO:0043208 GO:0031851 GO:0005134 GO:0019209 GO:0030246 GO:0008083 GO:0043498 GO:0005179

GO-Score 0.82 0.77 0.77 0.77 0.77 0.77 0.77 0.49 0.44

Biological Process GO:0042523 GO:0050672 GO:0042104 GO:0030890 GO:0006916 GO:0030307 GO:0050729 GO:0007267 GO:0001933 GO:0032740

GO-Score 0.82 0.77 0.77 0.77 0.77 0.77 0.77 0.77 0.77 0.77

Cellular Component GO:0005615

GO-Score 0.82

(a) Cscore^GO is a combined measure for evaluating global and local similarity between query and template protein. It's range is [0-1] and higher values indicate more confident predictions.

(b) TM-score is a measure of global structural similarity between query and template protein.

(c) RMSD^a is the RMSD between residues that are structurally aligned by TM-align.

(d) IDEN^a is the percentage sequence identity in the structurally aligned region.

(e) Cov represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

(f) The second table shows a consensus GO terms amongst the top scoring templates. The GO-Score associated with each prediction is defined as the average weight of the GO term, where the weights are assigned based on Cscore^GO of the template.

[Click on S802148_results.tar.bz2 to download the tarball file including all modeling results listed on this page]

Please cite the following articles when you use the I-TASSER server:

Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. Cell Reports Methods, 1: 100014 (2021).
Chengxin Zhang, Peter L. Freddolino, and Yang Zhang. COFACTOR: improved protein function prediction by combining structure, sequence and protein-protein interaction information. Nucleic Acids Research, 45: W291-299 (2017).
Jianyi Yang, Yang Zhang. I-TASSER server: new development for protein structure and function predictions, Nucleic Acids Research, 43: W174-W181, 2015.
