D-I-TASSER Q14397

D-I-TASSER results for Q14397

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q14397
Protein Name: Glucokinase regulatory protein
Gene Name: GCKR

Input Sequence in FASTA format

>Q14397 (625 residues)
MPGTKRFQHVIETPEPGKWELSGYEAAVPITEKSNPLTQDLDKADAENIVRLLGQCDAEI
FQEEGQALSTYQRLYSESILTTMVQVAGKVQEVLKEPDGGLVVLSGGGTSGRMAFLMSVS
FNQLMKGLGQKPLYTYLIAGGDRSVVASREGTEDSALHGIEELKKVAAGKKRVIVIGISV
GLSAPFVAGQMDCCMNNTAVFLPVLVGFNPVSMARNDPIEDWSSTFRQVAERMQKMQEKQ
KAFVLNPAIGPEGLSGSSRMKGGSATKILLETLLLAAHKTVDQGIAASQRCLLEILRTFE
RAHQVTYSQSPKIATLMKSVSTSLEKKGHVYLVGWQTLGIIAIMDGVECIHTFGADFRDV
RGFLIGDHSDMFNQKAELTNQGPQFTFSQEDFLTSILPSLTEIDTVVFIFTLDDNLTEVQ
TIVEQVKEKTNHIQALAHSTVGQTLPIPLKKLFPSIISITWPLLFFEYEGNFIQKFQREL
STKWVLNTVSTGAHVLLGKILQNHMLDLRISNSKLFWRALAMLQRFSGQSKARCIESLLR
AIHFPQPLSDDIRAAPISCHVQVAHEKEQVIPIALLSLLFRCSITEAQAHLAAAPSVCEA
VRSALAGPGQKRTADPLEILEPDVQ

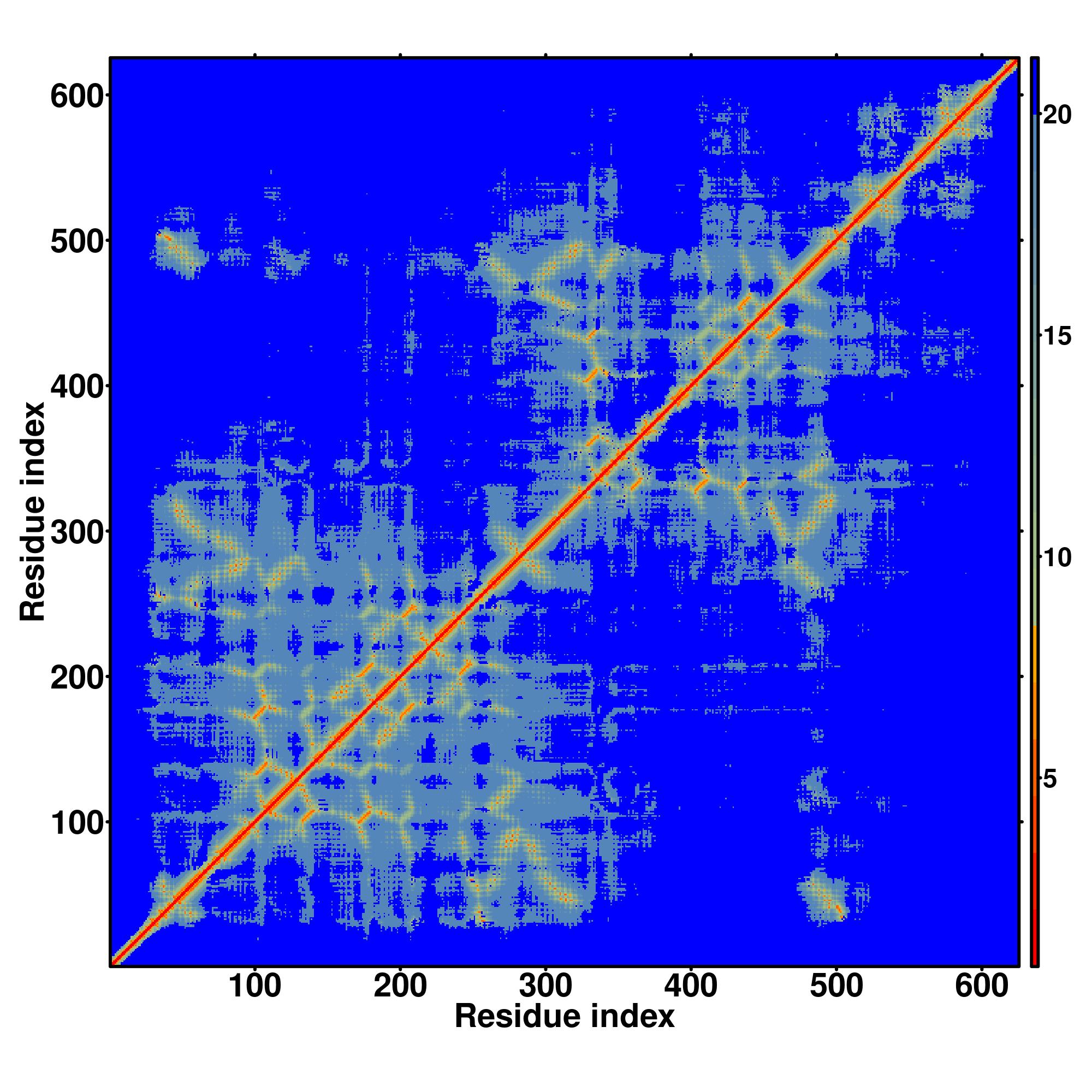

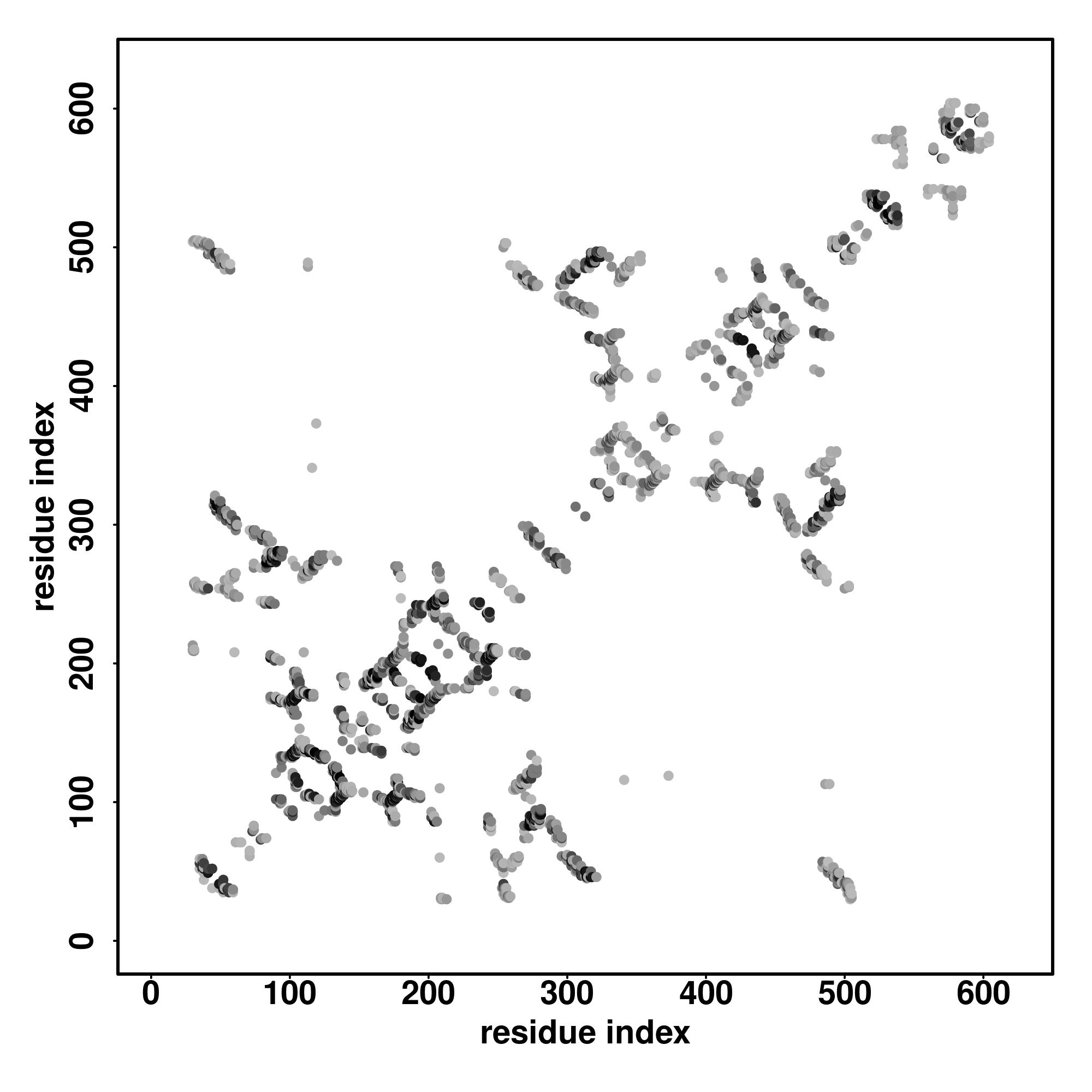

Predicted Contact and Distance Map Used in D-I-TASSER simulation

Contact Map

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q14397-D1	1-309,460-625	475		MPGTKRFQHVIETPEPGKWELSGYEAAVPITEKSNPLTQDLDKADAENIVRLLGQCDAEIFQEEGQALSTYQRLYSESILTTMVQVAGKVQEVLKEPDGGLVVLSGGGTSGRMAFLMSVSFNQLMKGLGQKPLYTYLIAGGDRSVVASREGTEDSALHGIEELKKVAAGKKRVIVIGISVGLSAPFVAGQMDCCMNNTAVFLPVLVGFNPVSMARNDPIEDWSSTFRQVAERMQKMQEKQKAFVLNPAIGPEGLSGSSRMKGGSATKILLETLLLAAHKTVDQGIAASQRCLLEILRTFERAHQVTYSQTWPLLFFEYEGNFIQKFQRELSTKWVLNTVSTGAHVLLGKILQNHMLDLRISNSKLFWRALAMLQRFSGQSKARCIESLLRAIHFPQPLSDDIRAAPISCHVQVAHEKEQVIPIALLSLLFRCSITEAQAHLAAAPSVCEAVRSALAGPGQKRTADPLEILEPDVQ
2	Q14397-D2	310-459	150		SPKIATLMKSVSTSLEKKGHVYLVGWQTLGIIAIMDGVECIHTFGADFRDVRGFLIGDHSDMFNQKAELTNQGPQFTFSQEDFLTSILPSLTEIDTVVFIFTLDDNLTEVQTIVEQVKEKTNHIQALAHSTVGQTLPIPLKKLFPSIISI

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.82

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	4bb9A	0.89	2.33	0.958	0.928	model1_4bb9A.pdb.gz
2	3w0lB	0.87	2.25	0.563	0.917	model1_3w0lB.pdb.gz
3	6r4eA	0.51	4.65	0.099	0.621	model1_6r4eA.pdb.gz
4	2j6hA	0.51	4.77	0.097	0.621	model1_2j6hA.pdb.gz
5	3i0zA	0.51	3.92	0.101	0.590	model1_3i0zA.pdb.gz
6	3odpA	0.50	3.81	0.106	0.584	model1_3odpA.pdb.gz
7	3ujhA	0.49	5.16	0.080	0.618	model1_3ujhA.pdb.gz
8	3pr3A	0.49	4.82	0.075	0.600	model1_3pr3A.pdb.gz
9	2zj4A	0.49	3.87	0.107	0.565	model1_2zj4A.pdb.gz
10	6bzbA	0.48	4.87	0.071	0.598	model1_6bzbA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0070095	0.97	fructose-6-phosphate binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0050794	0.98	regulation of cellular process
GO:0033132	0.97	negative regulation of glucokinase activity
GO:0008152	0.88	metabolic process
GO:0071704	0.86	organic substance metabolic process
GO:0044699	0.86	single-organism process
GO:0044710	0.84	single-organism metabolic process
GO:0044281	0.83	small molecule metabolic process
GO:0006810	0.82	transport
GO:0071702	0.81	organic substance transport
GO:0009750	0.80	response to fructose
GO:0000060	0.80	protein import into nucleus, translocation
GO:0009987	0.68	cellular process
GO:0044237	0.61	cellular metabolic process
GO:0044763	0.60	single-organism cellular process
GO:0065008	0.56	regulation of biological quality
GO:0006082	0.56	organic acid metabolic process
GO:0070328	0.54	triglyceride homeostasis
GO:0046415	0.54	urate metabolic process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0005737	1.00	cytoplasm
GO:0005654	1.00	nucleoplasm
GO:0044444	0.71	cytoplasmic part
GO:0043226	0.65	organelle
GO:0043229	0.64	intracellular organelle
GO:0005829	0.63	cytosol
GO:0043227	0.61	membrane-bounded organelle
GO:0043231	0.60	intracellular membrane-bounded organelle
GO:0005634	0.56	nucleus

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.310	1zzgA	0.462	4.00	0.097	0.541	5.3.1.9	560
2	0.080	3c3jA	0.494	3.90	0.079	0.571	5.3.1.-	NA
3	0.066	1b0zA	0.480	4.55	0.072	0.579	5.3.1.9	NA
4	0.066	2pgiA	0.480	4.55	0.072	0.579	5.3.1.9	NA
5	0.066	2q8nB	0.473	4.36	0.081	0.565	5.3.1.9	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	3oojA	0.490	4.24	0.104	0.582	0.29	G6Q	complex1.pdb.gz	57,257,260
2	0.01	2vf5X	0.493	3.94	0.114	0.576	0.14	GLP	complex2.pdb.gz	57,250,251
3	0.01	2bplA	0.517	4.45	0.098	0.621	0.10	F6R	complex3.pdb.gz	108,109,110
4	0.01	2x2iA	0.374	7.98	0.052	0.614	0.11	QPS	complex4.pdb.gz	107,182,215
5	0.01	2x2iD	0.374	8.02	0.057	0.616	0.19	QPS	complex5.pdb.gz	8,111,187
6	0.01	2cxqA	0.480	4.97	0.069	0.597	0.21	S6P	complex6.pdb.gz	11,261,265
7	0.01	2pocA	0.454	3.83	0.108	0.526	0.17	UD1	complex7.pdb.gz	53,56,253,254
8	0.01	2x2jA	0.374	7.95	0.045	0.613	0.12	NOJ	complex8.pdb.gz	35,50,264
9	0.01	3m5pA	0.482	5.01	0.074	0.600	0.15	F6P	complex9.pdb.gz	10,261,269
10	0.01	3q88A	0.482	4.90	0.077	0.595	0.13	RI2	complex10.pdb.gz	252,256,501

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
