D-I-TASSER Q9HC77

D-I-TASSER results for Q9HC77

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q9HC77
Protein Name: Centromere protein J
Gene Name: CENPJ

Input Sequence in FASTA format

>Q9HC77 (1338 residues)
MFLMPTSSELNSGQNFLTQWMTNPSRAGVILNRGFPILEADKEKRAAVDISTSFPIKGTH
FSDSFSFINEEDSLLEEQKLESNNPYKPQSDKSETHTAFPCIKKGPQVAACHSAPGHQEE
NKNDFIPDLASEFKEGAYKDPLFKKLEQLKEVQQKKQEQLKRQQLEQLQRLMEEQEKLLT
MVSGQCTLPGLSLLPDDQSQKHRSPGNTTTGERATCCFPSYVYPDPTQEETYPSNILSHE
QSNFCRTAHGDFVLTSKRASPNLFSEAQYQEAPVEKNNLKEENRNHPTGESILCWEKVTE
QIQEANDKNLQKHDDSSEVANIEERPIKAAIGERKQTFEDYLEEQIQLEEQELKQKQLKE
AEGPLPIKAKPKQPFLKRGEGLARFTNAKSKFQKGKESKLVTNQSTSEDQPLFKMDRQQL
QRKTALKNKELCADNPILKKDSKARTKSGSVTLSQKPKMLKCSNRKSLSPSGLKIQTGKK
CDGQFRDQIKFENKVTSNNKENVTECPKPCDTGCTGWNKTQGKDRLPLSTGPASRLAAKS
PIRETMKESESSLDVSLQKKLETWEREKEKENLELDEFLFLEQAADEISFSSNSSFVLKI
LERDQQICKGHRMSSTPVKAVPQKTNPADPISHCNRSEDLDHTAREKESECEVAPKQLHS
LSSADELREQPCKIRKAVQKSTSENQTEWNARDDEGVPNSDSSTDSEEQLDVTIKPSTED
RERGISSREDSPQVCDDKGPFKDTRTQEDKRRDVDLDLSDKDYSSDESIMESIKHKVSEP
SRSSSLSLSKMDFDDERTWTDLEENLCNHDVVLGNESTYGTPQTCYPNNEIGILDKTIKR
KIAPVKRGEDLSKSRRSRSPPTSELMMKFFPSLKPKPKSDSHLGNELKLNISQDQPPGDN
ARSQVLREKIIELETEIEKFKAENASLAKLRIERESALEKLRKEIADFEQQKAKELARIE
EFKKEEMRKLQKERKVFEKYTTAARTFPDKKEREEIQTLKQQIADLREDLKRKETKWSST
HSRLRSQIQMLVRENTDLREEIKVMERFRLDAWKRAEAIESSLEVEKKDKLANTSVRFQN
SQISSGTQVEKYKKNYLPMQGNPPRRSKSAPPRDLGNLDKGQAASPREPLEPLNFPDPEY
KEEEEDQDIQGEISHPDGKVEKVYKNGCRVILFPNGTRKEVSADGKTITVTFFNGDVKQV
MPDQRVIYYYAAAQTTHTTYPEGLEVLHFSSGQIEKHYPDGRKEITFPDQTVKNLFPDGQ
EESIFPDGTIVRVQRDGNKLIEFNNGQRELHTAQFKRREYPDGTVKTVYANGHQETKYRS
GRIRVKDKEGNVLMDTEL

Predicted Contact and Distance Map Used in D-I-TASSER simulation

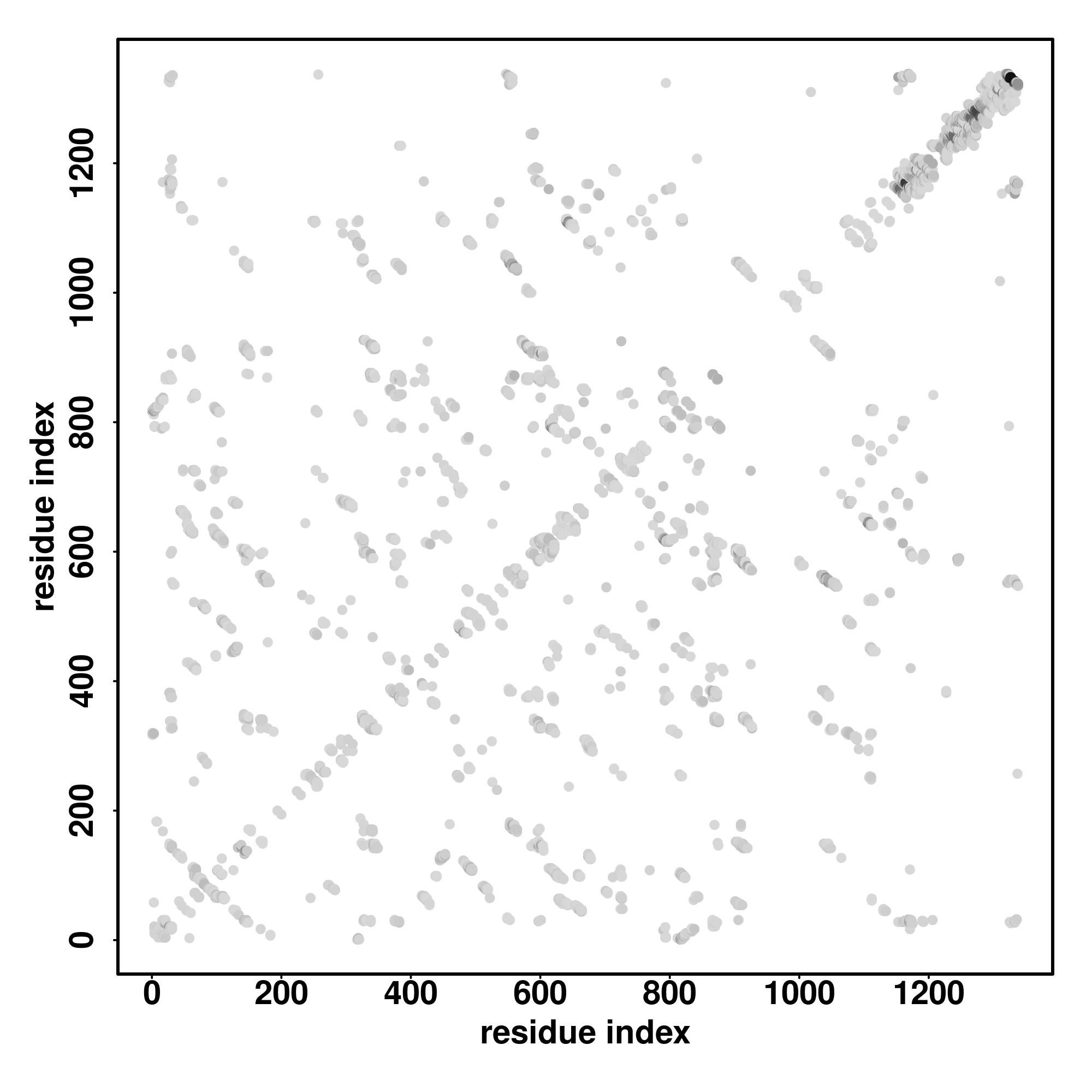

Contact Map

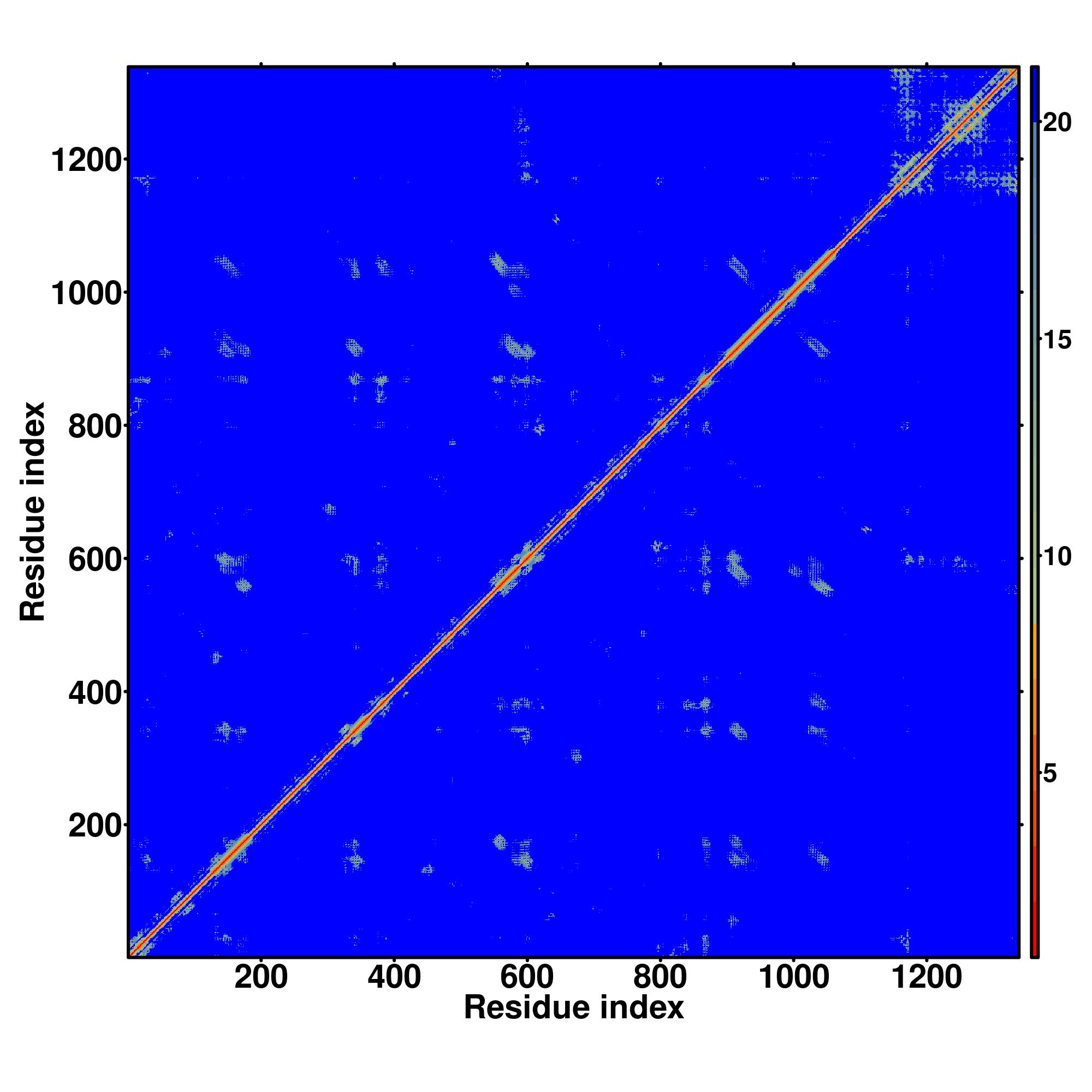

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q9HC77-D1	1-368,1188-1338	519		MFLMPTSSELNSGQNFLTQWMTNPSRAGVILNRGFPILEADKEKRAAVDISTSFPIKGTHFSDSFSFINEEDSLLEEQKLESNNPYKPQSDKSETHTAFPCIKKGPQVAACHSAPGHQEENKNDFIPDLASEFKEGAYKDPLFKKLEQLKEVQQKKQEQLKRQQLEQLQRLMEEQEKLLTMVSGQCTLPGLSLLPDDQSQKHRSPGNTTTGERATCCFPSYVYPDPTQEETYPSNILSHEQSNFCRTAHGDFVLTSKRASPNLFSEAQYQEAPVEKNNLKEENRNHPTGESILCWEKVTEQIQEANDKNLQKHDDSSEVANIEERPIKAAIGERKQTFEDYLEEQIQLEEQELKQKQLKEAEGPLPIKITVTFFNGDVKQVMPDQRVIYYYAAAQTTHTTYPEGLEVLHFSSGQIEKHYPDGRKEITFPDQTVKNLFPDGQEESIFPDGTIVRVQRDGNKLIEFNNGQRELHTAQFKRREYPDGTVKTVYANGHQETKYRSGRIRVKDKEGNVLMDTEL
2	Q9HC77-D2	369-522,602-667,1146-1187	262		AKPKQPFLKRGEGLARFTNAKSKFQKGKESKLVTNQSTSEDQPLFKMDRQQLQRKTALKNKELCADNPILKKDSKARTKSGSVTLSQKPKMLKCSNRKSLSPSGLKIQTGKKCDGQFRDQIKFENKVTSNNKENVTECPKPCDTGCTGWNKTQGERDQQICKGHRMSSTPVKAVPQKTNPADPISHCNRSEDLDHTAREKESECEVAPKQLHSLSSADELDQDIQGEISHPDGKVEKVYKNGCRVILFPNGTRKEVSADGKT
3	Q9HC77-D3	523-601	79		KDRLPLSTGPASRLAAKSPIRETMKESESSLDVSLQKKLETWEREKEKENLELDEFLFLEQAADEISFSSNSSFVLKIL
4	Q9HC77-D4	668-745,1118-1145	106		REQPCKIRKAVQKSTSENQTEWNARDDEGVPNSDSSTDSEEQLDVTIKPSTEDRERGISSREDSPQVCDDKGPFKDTRLDKGQAASPREPLEPLNFPDPEYKEEEE
5	Q9HC77-D5	746-1117	372		TQEDKRRDVDLDLSDKDYSSDESIMESIKHKVSEPSRSSSLSLSKMDFDDERTWTDLEENLCNHDVVLGNESTYGTPQTCYPNNEIGILDKTIKRKIAPVKRGEDLSKSRRSRSPPTSELMMKFFPSLKPKPKSDSHLGNELKLNISQDQPPGDNARSQVLREKIIELETEIEKFKAENASLAKLRIERESALEKLRKEIADFEQQKAKELARIEEFKKEEMRKLQKERKVFEKYTTAARTFPDKKEREEIQTLKQQIADLREDLKRKETKWSSTHSRLRSQIQMLVRENTDLREEIKVMERFRLDAWKRAEAIESSLEVEKKDKLANTSVRFQNSQISSGTQVEKYKKNYLPMQGNPPRRSKSAPPRDLGN

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.34

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6r9tA	0.21	9.83	0.041	0.333	model1_6r9tA.pdb.gz
2	6mu1A	0.21	10.11	0.026	0.339	model1_6mu1A.pdb.gz
3	6vr4A	0.20	9.61	0.036	0.302	model1_6vr4A.pdb.gz
4	5xjcA	0.20	10.27	0.034	0.317	model1_5xjcA.pdb.gz
5	3javA	0.19	10.03	0.020	0.303	model1_3javA.pdb.gz
6	6g7eB	0.19	9.58	0.040	0.288	model1_6g7eB.pdb.gz
7	3ei2A	0.19	9.51	0.048	0.285	model1_3ei2A.pdb.gz
8	5hy7A	0.19	9.44	0.047	0.280	model1_5hy7A.pdb.gz
9	7dxjA	0.18	9.43	0.034	0.275	model1_7dxjA.pdb.gz
10	6rw9A	0.18	10.07	0.034	0.288	model1_6rw9A.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0019899	0.91	enzyme binding
GO:0019901	0.90	protein kinase binding
GO:0015631	0.90	tubulin binding
GO:0019904	0.89	protein domain specific binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	1.00	single-organism process
GO:0009987	1.00	cellular process
GO:0007099	0.99	centriole replication
GO:0050794	0.98	regulation of cellular process
GO:0061511	0.97	centriole elongation
GO:0046599	0.97	regulation of centriole replication
GO:1903047	0.68	mitotic cell cycle process
GO:0006461	0.66	protein complex assembly
GO:0000226	0.66	microtubule cytoskeleton organization
GO:0048522	0.65	positive regulation of cellular process
GO:0043623	0.65	cellular protein complex assembly
GO:0046785	0.64	microtubule polymerization
GO:0007165	0.64	signal transduction
GO:0007020	0.62	microtubule nucleation

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044444	1.00	cytoplasmic part
GO:0043226	1.00	organelle
GO:0005814	0.99	centriole
GO:0005815	0.63	microtubule organizing center
GO:0005813	0.62	centrosome
GO:0005829	0.53	cytosol

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1vbgA	0.143	8.70	0.038	0.205	2.7.9.1	NA
2	0.060	2pffA	0.181	9.89	0.027	0.280	2.3.1.41 2.3.1.86	NA
3	0.060	2hpiA	0.144	9.53	0.030	0.217	2.7.7.7	NA
4	0.060	1gthA	0.123	8.46	0.018	0.172	1.3.1.2	504
5	0.060	1ofdA	0.160	10.35	0.030	0.258	1.4.7.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

No Binding sites was predicted

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
