D-I-TASSER Q9BXM0

D-I-TASSER results for Q9BXM0

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q9BXM0
Protein Name: Periaxin
Gene Name: PRX

Input Sequence in FASTA format

>Q9BXM0 (1461 residues)
MEARSRSAEELRRAELVEIIVETEAQTGVSGINVAGGGKEGIFVRELREDSPAARSLSLQ
EGDQLLSARVFFENFKYEDALRLLQCAEPYKVSFCLKRTVPTGDLALRPGTVSGYEIKGP
RAKVAKLNIQSLSPVKKKKMVPGALGVPADLAPVDVEFSFPKFSRLRRGLKAEAVKGPVP
AAPARRRLQLPRLRVREVAEEAQAARLAAAAPPPRKAKVEAEVAAGARFTAPQVELVGPR
LPGAEVGVPQVSAPKAAPSAEAAGGFALHLPTLGLGAPAPPAVEAPAVGIQVPQVELPAL
PSLPTLPTLPCLETREGAVSVVVPTLDVAAPTVGVDLALPGAEVEARGEAPEVALKMPRL
SFPRFGARAKEVAEAKVAKVSPEARVKGPRLRMPTFGLSLLEPRPAAPEVVESKLKLPTI
KMPSLGIGVSGPEVKVPKGPEVKLPKAPEVKLPKVPEAALPEVRLPEVELPKVSEMKLPK
VPEMAVPEVRLPEVELPKVSEMKLPKVPEMAVPEVRLPEVQLLKVSEMKLPKVPEMAVPE
VRLPEVQLPKVSEMKLPEVSEVAVPEVRLPEVQLPKVPEMKVPEMKLPKVPEMKLPEMKL
PEVQLPKVPEMAVPDVHLPEVQLPKVPEMKLPEMKLPEVKLPKVPEMAVPDVHLPEVQLP
KVPEMKLPKMPEMAVPEVRLPEVQLPKVSEMKLPKVPEMAVPDVHLPEVQLPKVCEMKVP
DMKLPEIKLPKVPEMAVPDVHLPEVQLPKVSEIRLPEMQVPKVPDVHLPKAPEVKLPRAP
EVQLKATKAEQAEGMEFGFKMPKMTMPKLGRAESPSRGKPGEAGAEVSGKLVTLPCLQPE
VDGEAHVGVPSLTLPSVELDLPGALGLQGQVPAAKMGKGERVEGPEVAAGVREVGFRVPS
VEIVTPQLPAVEIEEGRLEMIETKVKPSSKFSLPKFGLSGPKVAKAEAEGAGRATKLKVS
KFAISLPKARVGAEAEAKGAGEAGLLPALDLSIPQLSLDAHLPSGKVEVAGADLKFKGPR
FALPKFGVRGRDTEAAELVPGVAELEGKGWGWDGRVKMPKLKMPSFGLARGKEAEVQGDR
ASPGEKAESTAVQLKIPEVELVTLGAQEEGRAEGAVAVSGMQLSGLKVSTAGQVVTEGHD
AGLRMPPLGISLPQVELTGFGEAGTPGQQAQSTVPSAEGTAGYRVQVPQVTLSLPGAQVA
GGELLVGEGVFKMPTVTVPQLELDVGLSREAQAGEAATGEGGLRLKLPTLGARARVGGEG
AEEQPPGAERTFCLSLPDVELSPSGGNHAEYQVAEGEGEAGHKLKVRLPRFGLVRAKEGA
EEGEKAKSPKLRLPRVGFSQSEMVTGEGSPSPEEEEEEEEEGSGEGASGRRGRVRVRLPR
VGLAAPSKASRGQEGDAAPKSPVREKSPKFRFPRVSLSPKARSGSGDQEEGGLRVRLPSV
GFSETGAPGPARMEGAQAAAV

Predicted Contact and Distance Map Used in D-I-TASSER simulation

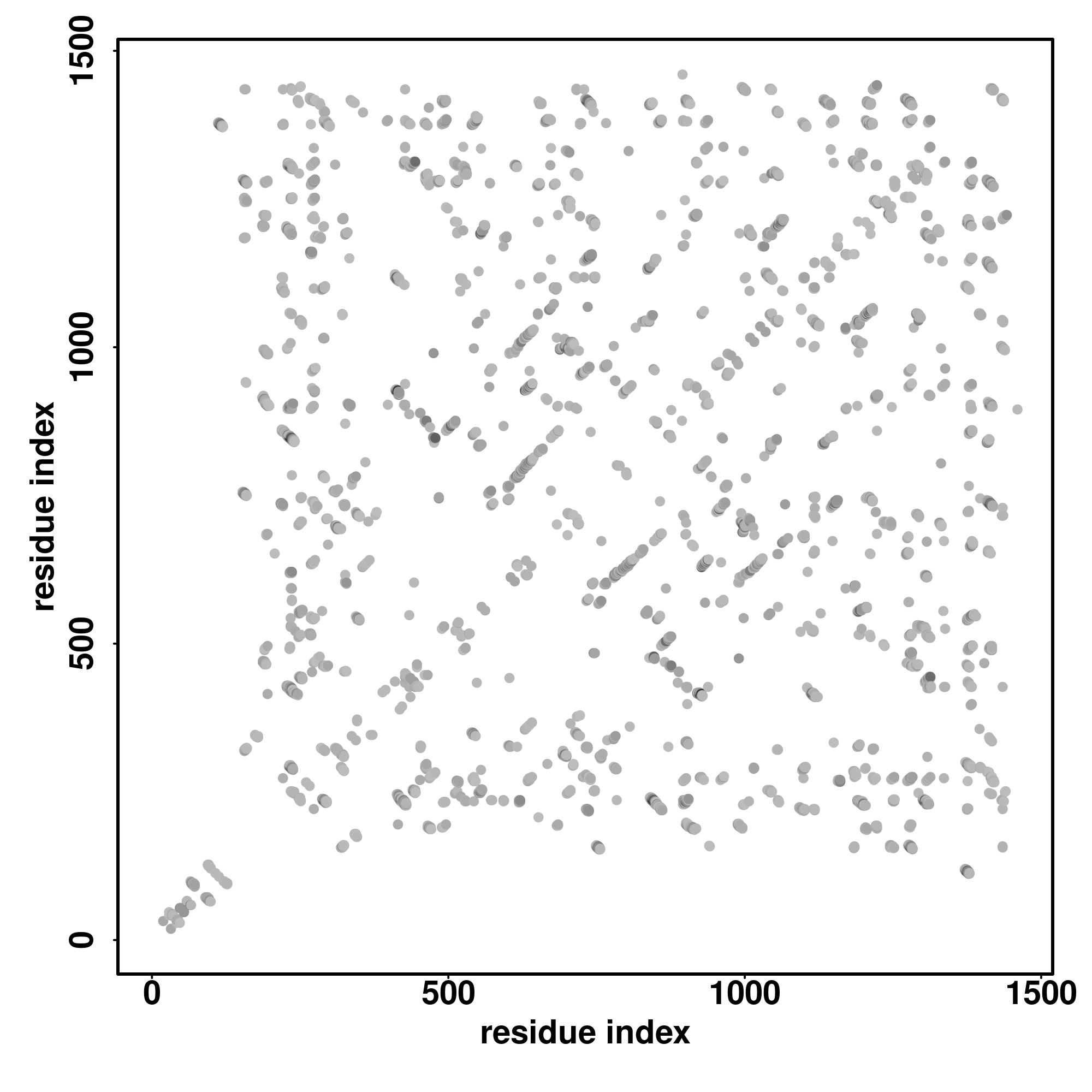

Contact Map

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q9BXM0-D1	1-552,898-1461	1116		MEARSRSAEELRRAELVEIIVETEAQTGVSGINVAGGGKEGIFVRELREDSPAARSLSLQEGDQLLSARVFFENFKYEDALRLLQCAEPYKVSFCLKRTVPTGDLALRPGTVSGYEIKGPRAKVAKLNIQSLSPVKKKKMVPGALGVPADLAPVDVEFSFPKFSRLRRGLKAEAVKGPVPAAPARRRLQLPRLRVREVAEEAQAARLAAAAPPPRKAKVEAEVAAGARFTAPQVELVGPRLPGAEVGVPQVSAPKAAPSAEAAGGFALHLPTLGLGAPAPPAVEAPAVGIQVPQVELPALPSLPTLPTLPCLETREGAVSVVVPTLDVAAPTVGVDLALPGAEVEARGEAPEVALKMPRLSFPRFGARAKEVAEAKVAKVSPEARVKGPRLRMPTFGLSLLEPRPAAPEVVESKLKLPTIKMPSLGIGVSGPEVKVPKGPEVKLPKAPEVKLPKVPEAALPEVRLPEVELPKVSEMKLPKVPEMAVPEVRLPEVELPKVSEMKLPKVPEMAVPEVRLPEVQLLKVSEMKLPKVPEMAVPEVRLPEVQLPKVSVPSVEIVTPQLPAVEIEEGRLEMIETKVKPSSKFSLPKFGLSGPKVAKAEAEGAGRATKLKVSKFAISLPKARVGAEAEAKGAGEAGLLPALDLSIPQLSLDAHLPSGKVEVAGADLKFKGPRFALPKFGVRGRDTEAAELVPGVAELEGKGWGWDGRVKMPKLKMPSFGLARGKEAEVQGDRASPGEKAESTAVQLKIPEVELVTLGAQEEGRAEGAVAVSGMQLSGLKVSTAGQVVTEGHDAGLRMPPLGISLPQVELTGFGEAGTPGQQAQSTVPSAEGTAGYRVQVPQVTLSLPGAQVAGGELLVGEGVFKMPTVTVPQLELDVGLSREAQAGEAATGEGGLRLKLPTLGARARVGGEGAEEQPPGAERTFCLSLPDVELSPSGGNHAEYQVAEGEGEAGHKLKVRLPRFGLVRAKEGAEEGEKAKSPKLRLPRVGFSQSEMVTGEGSPSPEEEEEEEEEGSGEGASGRRGRVRVRLPRVGLAAPSKASRGQEGDAAPKSPVREKSPKFRFPRVSLSPKARSGSGDQEEGGLRVRLPSVGFSETGAPGPARMEGAQAAAV
2	Q9BXM0-D2	553-763	211		EMKLPEVSEVAVPEVRLPEVQLPKVPEMKVPEMKLPKVPEMKLPEMKLPEVQLPKVPEMAVPDVHLPEVQLPKVPEMKLPEMKLPEVKLPKVPEMAVPDVHLPEVQLPKVPEMKLPKMPEMAVPEVRLPEVQLPKVSEMKLPKVPEMAVPDVHLPEVQLPKVCEMKVPDMKLPEIKLPKVPEMAVPDVHLPEVQLPKVSEIRLPEMQVPKV
3	Q9BXM0-D3	764-820	57		PDVHLPKAPEVKLPRAPEVQLKATKAEQAEGMEFGFKMPKMTMPKLGRAESPSRGKP
4	Q9BXM0-D4	821-897	77		GEAGAEVSGKLVTLPCLQPEVDGEAHVGVPSLTLPSVELDLPGALGLQGQVPAAKMGKGERVEGPEVAAGVREVGFR

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.33

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	5nz7A	0.60	2.15	0.081	0.613	model1_5nz7A.pdb.gz
2	2cqtA	0.46	3.43	0.074	0.496	model1_2cqtA.pdb.gz
3	3qdeA	0.46	3.36	0.064	0.492	model1_3qdeA.pdb.gz
4	1v7vA	0.46	3.49	0.072	0.489	model1_1v7vA.pdb.gz
5	6ggyA	0.45	3.96	0.066	0.496	model1_6ggyA.pdb.gz
6	5h3zA	0.45	5.05	0.061	0.509	model1_5h3zA.pdb.gz
7	4zleA	0.45	4.03	0.061	0.488	model1_4zleA.pdb.gz
8	6hq6A	0.42	5.76	0.053	0.498	model1_6hq6A.pdb.gz
9	2eabA	0.38	5.37	0.064	0.435	model1_2eabA.pdb.gz
10	6m5aA	0.37	5.21	0.062	0.429	model1_6m5aA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0097159	0.51	organic cyclic compound binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.85	single-organism process
GO:0009987	0.74	cellular process
GO:0065007	0.67	biological regulation
GO:0044763	0.65	single-organism cellular process
GO:0032502	0.59	developmental process
GO:0050789	0.58	regulation of biological process
GO:0044767	0.55	single-organism developmental process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.96	cell part
GO:0044424	0.84	intracellular part
GO:0016020	0.70	membrane
GO:0005737	0.65	cytoplasm
GO:0043226	0.63	organelle
GO:0044444	0.62	cytoplasmic part
GO:0043227	0.60	membrane-bounded organelle
GO:0005886	0.60	plasma membrane
GO:0043229	0.59	intracellular organelle
GO:0044422	0.51	organelle part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1etuA	0.068	5.53	0.060	0.080	3.6.5.3	NA
2	0.060	2g49A	0.231	8.79	0.035	0.328	3.4.24.56	NA
3	0.060	2vdcA	0.250	10.62	0.043	0.402	1.4.1.13	NA
4	0.060	1ofdA	0.248	10.66	0.042	0.401	1.4.7.1	NA
5	0.060	2pffD	0.249	10.36	0.028	0.392	2.3.1.86	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

No Binding sites was predicted

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
