D-I-TASSER Q92834

D-I-TASSER results for Q92834

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q92834
Protein Name: X-linked retinitis pigmentosa GTPase regulator
Gene Name: RPGR

Input Sequence in FASTA format

>Q92834 (1020 residues)
MREPEELMPDSGAVFTFGKSKFAENNPGKFWFKNDVPVHLSCGDEHSAVVTGNNKLYMFG
SNNWGQLGLGSKSAISKPTCVKALKPEKVKLAACGRNHTLVSTEGGNVYATGGNNEGQLG
LGDTEERNTFHVISFFTSEHKIKQLSAGSNTSAALTEDGRLFMWGDNSEGQIGLKNVSNV
CVPQQVTIGKPVSWISCGYYHSAFVTTDGELYVFGEPENGKLGLPNQLLGNHRTPQLVSE
IPEKVIQVACGGEHTVVLTENAVYTFGLGQFGQLGLGTFLFETSEPKVIENIRDQTISYI
SCGENHTALITDIGLMYTFGDGRHGKLGLGLENFTNHFIPTLCSNFLRFIVKLVACGGCH
MVVFAAPHRGVAKEIEFDEINDTCLSVATFLPYSSLTSGNVLQRTLSARMRRRERERSPD
SFSMRRTLPPIEGTLGLSACFLPNSVFPRCSERNLQESVLSEQDLMQPEEPDYLLDEMTK
EAEIDNSSTVESLGETTDILNMTHIMSLNSNEKSLKLSPVQKQKKQQTIGELTQDTALTE
NDDSDEYEEMSEMKEGKACKQHVSQGIFMTQPATTIEAFSDEEVGNDTGQVGPQADTDGE
GLQKEVYRHENNNGVDQLDAKEIEKESDGGHSQKESEAEEIDSEKETKLAEIAGMKDLRE
REKSTKKMSPFFGNLPDRGMNTESEENKDFVKKRESCKQDVIFDSERESVEKPDSYMEGA
SESQQGIADGFQQPEAIEFSSGEKEDDEVETDQNIRYGRKLIEQGNEKETKPIISKSMAK
YDFKCDRLSEIPEEKEGAEDSKGNGIEEQEVEANEENVKVHGGRKEKTEILSDDLTDKAE
DHEFSKTEELKLEDVDEEINAENVESKKKTVGDDESVPTGYHSKTEGAERTNDDSSAETI
EKKEKANLEERAICEYNENPKGYMLDDADSSSLEILENSETTPSKDMKKTKKIFLFKRVP
SINQKIVKNNNEPLPEIKSIGDQIILKSDNKDADQNHMSQNHQNIPPTNTERRSKSCTIL

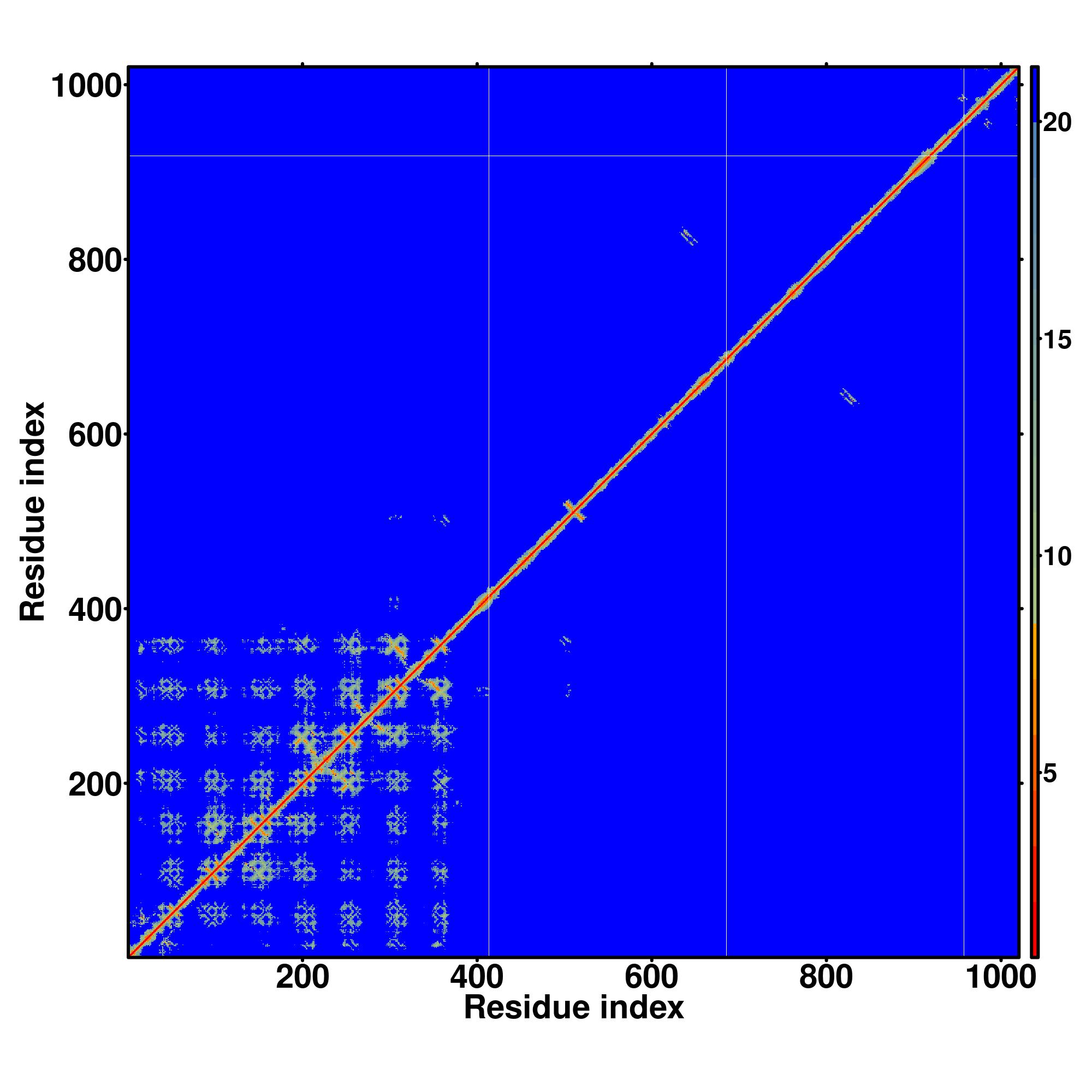

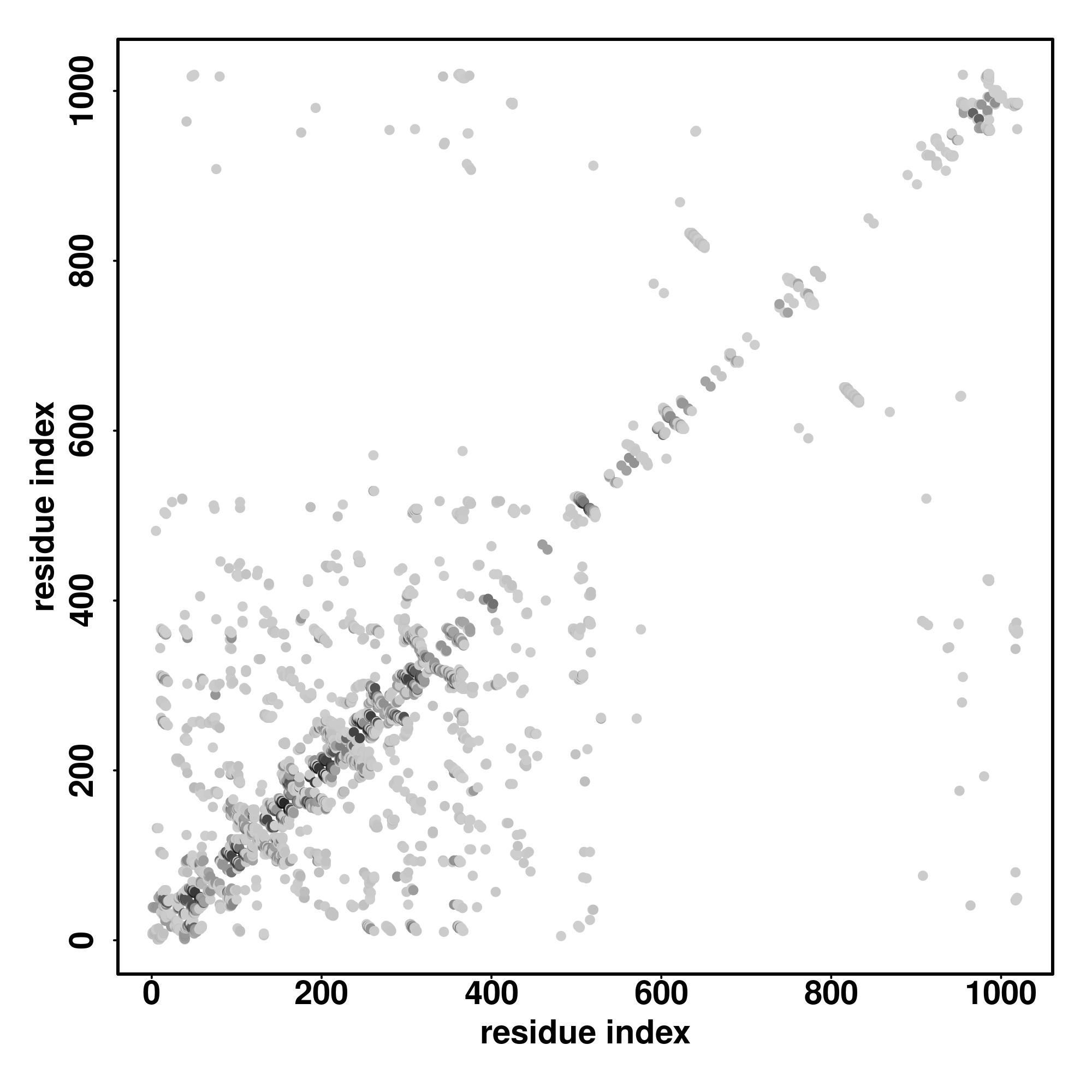

Predicted Contact and Distance Map Used in D-I-TASSER simulation

Contact Map

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q92834-D1	1-1020	1020		MREPEELMPDSGAVFTFGKSKFAENNPGKFWFKNDVPVHLSCGDEHSAVVTGNNKLYMFGSNNWGQLGLGSKSAISKPTCVKALKPEKVKLAACGRNHTLVSTEGGNVYATGGNNEGQLGLGDTEERNTFHVISFFTSEHKIKQLSAGSNTSAALTEDGRLFMWGDNSEGQIGLKNVSNVCVPQQVTIGKPVSWISCGYYHSAFVTTDGELYVFGEPENGKLGLPNQLLGNHRTPQLVSEIPEKVIQVACGGEHTVVLTENAVYTFGLGQFGQLGLGTFLFETSEPKVIENIRDQTISYISCGENHTALITDIGLMYTFGDGRHGKLGLGLENFTNHFIPTLCSNFLRFIVKLVACGGCHMVVFAAPHRGVAKEIEFDEINDTCLSVATFLPYSSLTSGNVLQRTLSARMRRRERERSPDSFSMRRTLPPIEGTLGLSACFLPNSVFPRCSERNLQESVLSEQDLMQPEEPDYLLDEMTKEAEIDNSSTVESLGETTDILNMTHIMSLNSNEKSLKLSPVQKQKKQQTIGELTQDTALTENDDSDEYEEMSEMKEGKACKQHVSQGIFMTQPATTIEAFSDEEVGNDTGQVGPQADTDGEGLQKEVYRHENNNGVDQLDAKEIEKESDGGHSQKESEAEEIDSEKETKLAEIAGMKDLREREKSTKKMSPFFGNLPDRGMNTESEENKDFVKKRESCKQDVIFDSERESVEKPDSYMEGASESQQGIADGFQQPEAIEFSSGEKEDDEVETDQNIRYGRKLIEQGNEKETKPIISKSMAKYDFKCDRLSEIPEEKEGAEDSKGNGIEEQEVEANEENVKVHGGRKEKTEILSDDLTDKAEDHEFSKTEELKLEDVDEEINAENVESKKKTVGDDESVPTGYHSKTEGAERTNDDSSAETIEKKEKANLEERAICEYNENPKGYMLDDADSSSLEILENSETTPSKDMKKTKKIFLFKRVPSINQKIVKNNNEPLPEIKSIGDQIILKSDNKDADQNHMSQNHQNIPPTNTERRSKSCTIL

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.4434

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	4jhnA	0.35	1.50	0.983	0.351	model1_4jhnA.pdb.gz
2	5gwnA	0.34	2.89	0.235	0.360	model1_5gwnA.pdb.gz
3	1a12A	0.33	2.72	0.243	0.347	model1_1a12A.pdb.gz
4	3kciA	0.33	2.03	0.277	0.339	model1_3kciA.pdb.gz
5	4o2wA	0.33	2.02	0.287	0.337	model1_4o2wA.pdb.gz
6	3mvdK	0.32	2.90	0.231	0.342	model1_3mvdK.pdb.gz
7	4d4oA	0.29	2.83	0.148	0.303	model1_4d4oA.pdb.gz
8	1jtdB	0.25	2.64	0.243	0.263	model1_1jtdB.pdb.gz
9	3of7A2	0.15	3.12	0.172	0.164	model1_3of7A2.pdb.gz
10	2f02A	0.15	6.50	0.063	0.200	model1_2f02A.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003824	0.70	catalytic activity
GO:0016740	0.68	transferase activity
GO:0004842	0.67	ubiquitin-protein transferase activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.89	cellular process
GO:0071704	0.64	organic substance metabolic process
GO:0044237	0.64	cellular metabolic process
GO:0044260	0.63	cellular macromolecule metabolic process
GO:0044238	0.63	primary metabolic process
GO:0043412	0.62	macromolecule modification
GO:0006464	0.61	cellular protein modification process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0044424	0.88	intracellular part
GO:0043226	0.88	organelle
GO:0043231	0.77	intracellular membrane-bounded organelle
GO:0005737	0.66	cytoplasm
GO:0005634	0.61	nucleus

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	2ebsB	0.246	5.57	0.060	0.297	3.2.1.150	NA
2	0.060	3ffzA	0.252	8.81	0.025	0.382	3.4.24.69	NA
3	0.060	2e1qA	0.262	9.25	0.036	0.415	1.17.3.2 1.17.1.4	NA
4	0.060	1qksB	0.244	5.63	0.081	0.299	1.7.2.1	54
5	0.060	1k3iA	0.252	6.55	0.042	0.323	1.1.3.9	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	2vc2A	0.235	4.77	0.060	0.271	0.39	180	complex1.pdb.gz	18,19,46,61
2	0.01	1n35A	0.286	9.08	0.033	0.447	0.11	QNA	complex2.pdb.gz	13,14,29,310
3	0.01	1b0pA	0.280	8.81	0.040	0.431	0.34	SF4	complex3.pdb.gz	19,44,357,359
4	0.01	3i7kA	0.272	7.17	0.042	0.366	0.16	III	complex4.pdb.gz	145,155,196,205
5	0.01	2b5l0	0.272	7.92	0.035	0.386	0.13	III	complex5.pdb.gz	187,206,210,211,240,260
6	0.01	1n1hA	0.285	9.11	0.031	0.447	0.18	CH1	complex6.pdb.gz	12,25,26,28
7	0.01	3k71E	0.326	7.82	0.058	0.457	0.31	UUU	complex7.pdb.gz	26,28,29
8	0.01	1n38A	0.286	9.14	0.033	0.450	0.10	QNA	complex8.pdb.gz	12,40,41,43,100,103
9	0.01	1n1hA	0.285	9.11	0.031	0.447	0.13	QNA	complex9.pdb.gz	15,16,17,47,48,51,58
10	0.01	1b0pA	0.280	8.81	0.040	0.431	0.18	SF4	complex10.pdb.gz	20,44,59

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
