D-I-TASSER Q8NBU5-D2

D-I-TASSER results for Q8NBU5-D2

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>Q8NBU5 (103 residues)
QPALKQREAILKLILKNENVDRHVDLLEVAQETDGFSGSDLKEMCRDAALLCVREYVNST
SEESHDEDEIRPVQQQDLHRAIEKMKKSKDAAFQNVLTHVCLD

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| QPALKQREAILKLILKNENVDRHVDLLEVAQETDGFSGSDLKEMCRDAALLCVREYVNSTSEESHDEDEIRPVQQQDLHRAIEKMKKSKDAAFQNVLTHVCLD
Prediction	CCCHHHHHHHHHHHHCCCCCCCCCCHHHHHHHCCCCCHHHHHHHHHHHHHHHHHHCCCCCCHHHHHHHHHCCCCHHHHHHHHHCHCHHHHHHHHHHHHHCCCC
Confidence	9888999999999976998987789999996198998899999999999999997041369555435664212449999975213115787999864110159
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| QPALKQREAILKLILKNENVDRHVDLLEVAQETDGFSGSDLKEMCRDAALLCVREYVNSTSEESHDEDEIRPVQQQDLHRAIEKMKKSKDAAFQNVLTHVCLD
Prediction	8554731440041125736147704154007415423123033004300131035427525575264544341437414513563554333122432341338
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

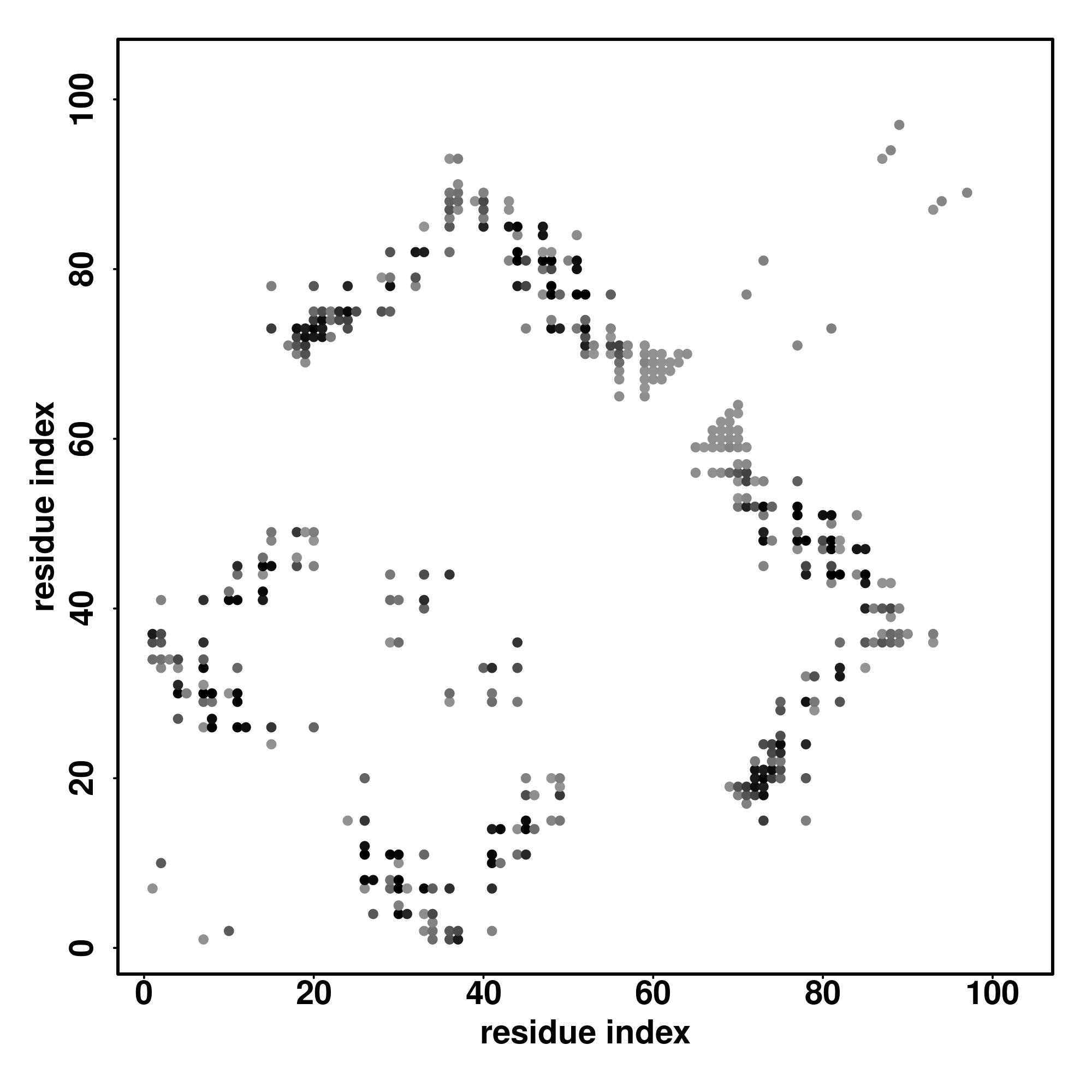

Contact Map

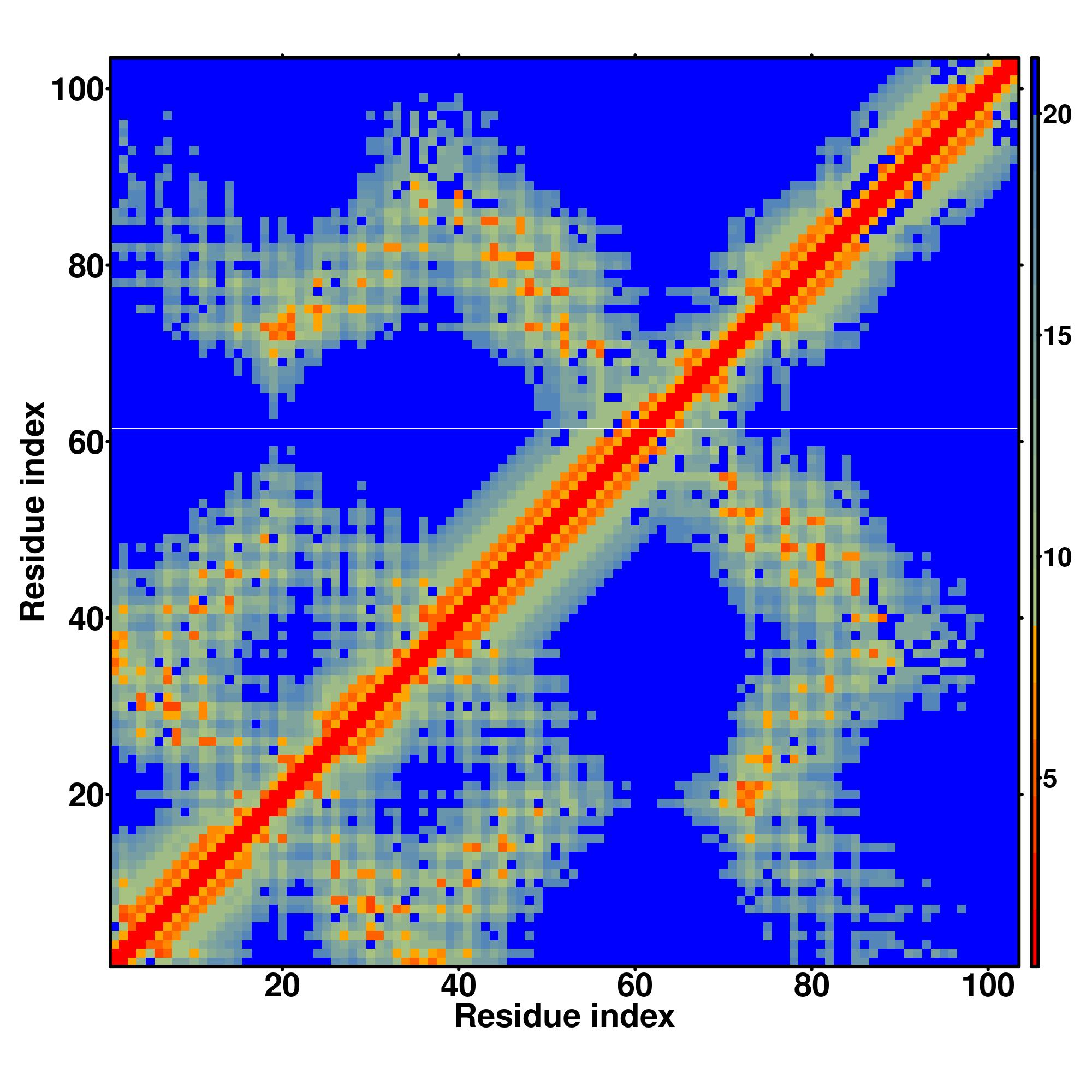

Distance Map

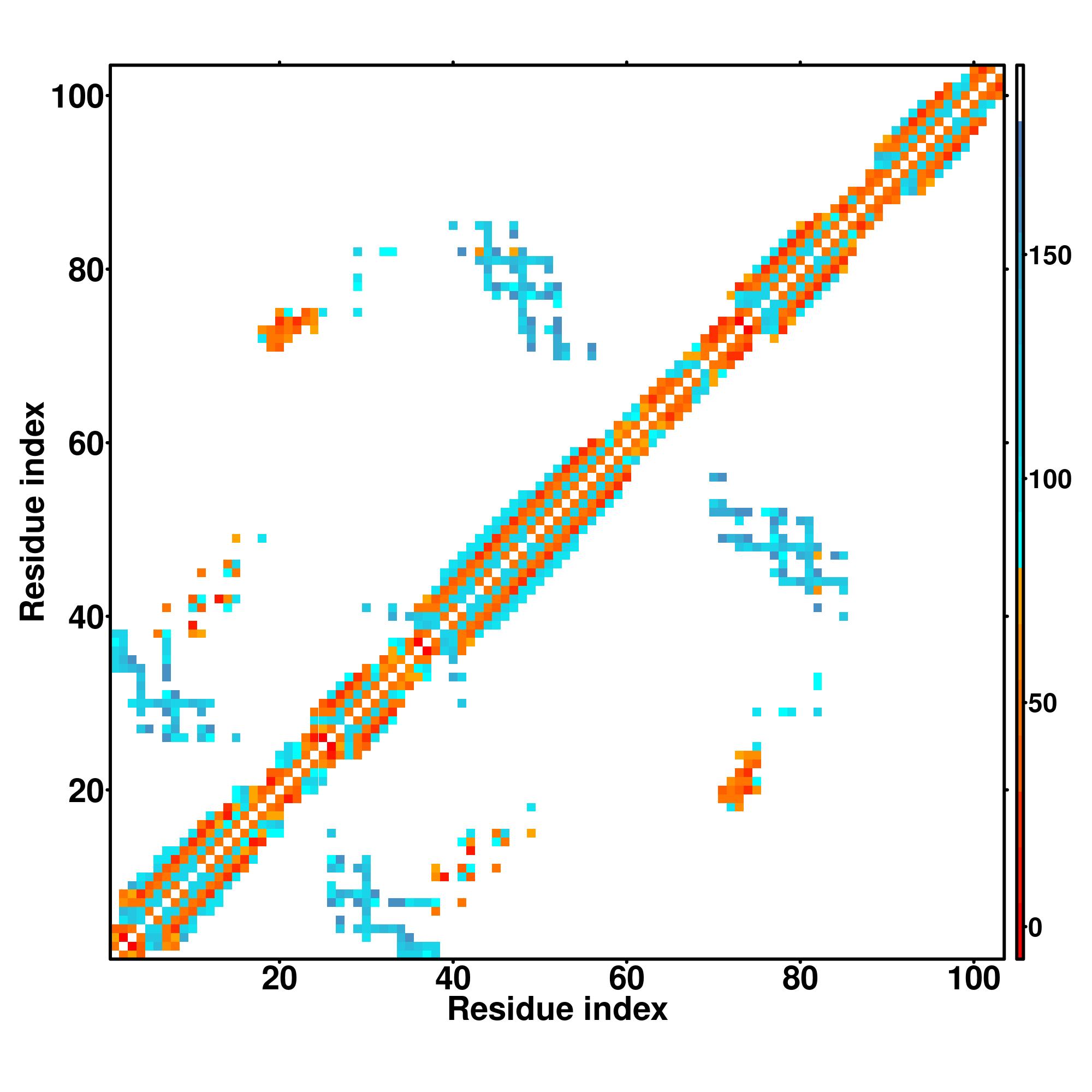

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCHHHHHHHHHHHHCCCCCCCCCCHHHHHHHCCCCCHHHHHHHHHHHHHHHHHHCCCCCCHHHHHHHHHCCCCHHHHHHHHHCHCHHHHHHHHHHHHHCCCC
QPALKQREAILKLILKNENVDRHVDLLEVAQETDGFSGSDLKEMCRDAALLCVREYVNSTSEESHDEDEIRPVQQQDLHRAIEKMKKSKDAAFQNVLTHVCLD

4lcbA

0.23

0.21

6.70

1.33

DEthreader

LPDFNQRLALFKYYTSKVKLG-NVDLQELAKMTEGYSASDIRDIVQSAHMRVVKEMFEKN----L-SE-PREITMDDFKEVLKIRKPSVNQELLKAYEAWTEF

5z6qA2

0.28

0.27

8.32

1.82

SPARKS-K

-PNEETRLLLLKNLLCKQGSPTQKELAQLARMTDGYSGSDLTALAKDAALGPIRELKPEQVKNM-SASEMRNIRLSDFTESLKKIKRSVSPQTLEAYIRWNKD

6b5cA

0.29

8.85

0.82

MapAlign

LPTAKGRAELLKINLREVELDPDIQLEDIAEKIEGYSGADITNVCRDASLMAMRRRINEEIRALSKEELQMPVTKGDFELALKKIAKSVSAADLEKYEKWMV-

6b5cA

0.30

9.13

0.62

CEthreader

LPTAKGRAELLKINLREVELDPDIQLEDIAEKIEGYSGADITNVCRDASLMAMRRRINGLSPEEIRALLQMPVTKGDFELALKKIAKSVSAADLEKYEKWMVE

6b5cA

0.30

9.13

1.22

MUSTER

LPTAKGRAELLKINLREVELDPDIQLEDIAEKIEGYSGADITNVCRDASLMAMRRRINGLSPEEIRALSQMPVTKGDFELALKKIAKSVSAADLEKYEKWMVE

5e7pA

0.26

0.23

7.18

1.35

HHsearch

PPDAAARRDILRTAGKSIPLADDVDLDSLADDLDGYSAADCVALLRESAMTAMRRSIDA-----------ADVTAADVAKARETVRPSLDPAQVESLREFAEK

3cf1B4

0.31

0.27

8.22

1.88

FFAS-3D

-PDATGRLEILQIHTKNMKLADDVDLEQVANETHGHVGADLAALCSEAALQAIRKKMDLIDLEDETIDNSLAVTMDDFRWALSQSNPSALRE-----------

6b5cA

0.30

9.13

1.03

EigenThreader

LPTAKGRAELLKINLREVELDPDIQLEDIAEKIEGYSGADITNVCRDASLMAMRRRINGLSRALSKEELQMPVTKGDFELALKKIAKSVSAADLEKYEKWMVE

5e7pA

0.26

0.23

7.18

0.92

CNFpred

PPDAAARRDILRTAGKSIPLADDVDLDSLADDLDGYSAADCVALLRESAMTAMRRSID-----------AADVTAADVAKARETVRPSLDPAQVESLREFAEK

3eihA

0.18

0.17

5.68

1.33

DEthreader

LPDLAARTTMFEINVGDTPCVLTKDYRTLGAMTEGYSGSDIAVVVKDALMQPIRKIQSATHMSDIELK-EPDLTIKDFLKAIKSTRPTV-N--EDDLLKQEQR

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.8514

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	3eihA	0.82	2.40	0.165	0.961	model1_3eihA.pdb.gz
2	6b5cA	0.82	1.89	0.301	0.952	model1_6b5cA.pdb.gz
3	4lcbA	0.80	1.95	0.240	0.893	model1_4lcbA.pdb.gz
4	3cf1B	0.79	1.80	0.305	0.893	model1_3cf1B.pdb.gz
5	4l15A	0.78	2.64	0.250	0.961	model1_4l15A.pdb.gz
6	5z6qA	0.78	2.71	0.270	0.952	model1_5z6qA.pdb.gz
7	1xwiA	0.78	2.60	0.243	0.952	model1_1xwiA.pdb.gz
8	5wc0A	0.77	2.50	0.188	0.942	model1_5wc0A.pdb.gz
9	5e7pA	0.76	2.39	0.213	0.903	model1_5e7pA.pdb.gz
10	3b9pA	0.75	2.08	0.308	0.874	model1_3b9pA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0016787	0.99	hydrolase activity
GO:0016887	0.98	ATPase activity
GO:0042623	0.94	ATPase activity, coupled
GO:0008568	0.67	microtubule-severing ATPase activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.98	cellular process
GO:0044699	0.87	single-organism process
GO:0044763	0.85	single-organism cellular process
GO:0016043	0.82	cellular component organization
GO:0006996	0.75	organelle organization
GO:1902589	0.72	single-organism organelle organization
GO:0007017	0.68	microtubule-based process
GO:0000226	0.66	microtubule cytoskeleton organization
GO:0031122	0.65	cytoplasmic microtubule organization
GO:0008152	0.56	metabolic process
GO:0071704	0.55	organic substance metabolic process
GO:0044238	0.53	primary metabolic process
GO:0043170	0.50	macromolecule metabolic process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0044424	0.99	intracellular part
GO:0043229	0.86	intracellular organelle
GO:0043227	0.83	membrane-bounded organelle
GO:0043231	0.82	intracellular membrane-bounded organelle
GO:0005634	0.72	nucleus
GO:0044444	0.59	cytoplasmic part
GO:0044422	0.57	organelle part
GO:0044446	0.56	intracellular organelle part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1n63B	0.502	4.06	0.053	0.786	1.2.99.2	NA
2	0.060	2iukB	0.404	3.81	0.075	0.641	1.13.11.12	34,38
3	0.060	2ptwA	0.490	3.41	0.125	0.699	4.2.1.11	NA
4	0.060	3iydC	0.516	4.25	0.090	0.932	2.7.7.6	NA
5	0.060	3glfG	0.500	3.18	0.119	0.689	2.7.7.7	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.10	3cf0A	0.791	1.60	0.305	0.893	0.72	ADP	complex1.pdb.gz	10,14,38,39,42
2	0.09	2dvw1	0.648	1.47	0.274	0.709	1.15	III	complex2.pdb.gz	4,5,8,22,23,24,25,27,28,32,55,74,75,76
3	0.02	3zuhA	0.596	2.84	0.106	0.806	0.42	RUB	complex3.pdb.gz	39,43,47

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
