D-I-TASSER Q8NBS9-D2

D-I-TASSER results for Q8NBS9-D2

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>Q8NBS9 (129 residues)
VTPEPEVEPPSAPELKQGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLAL
GLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVES
QLQRTETGA

Predicted Secondary Structure

Sequence	20 40 60 80 100 120 \| \| \| \| \| \| VTPEPEVEPPSAPELKQGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLALGLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVESQLQRTETGA
Prediction	CCCCCCCCCCCCCCCCCCCSSSCHHHHHHHHHCCCSSSSSSCCCCHHHHHHHHHHHHHHHHHHCCCCSSSSSSSCCCCHHHHHHCCCCCCCSSSSSSCCCSCSSSCCCCCHHHHHHHHHHHCCCCCCCC
Confidence	999998899899888898489362348999844997999968989678713389999999972179848999868888567887198656679997099631354188999999999998647788899
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 120 \| \| \| \| \| \| VTPEPEVEPPSAPELKQGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLALGLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVESQLQRTETGA
Prediction	856547266662564774125035720562067450001020320330441332045007515757503002020452572076260421000110364642662635242740251057317646678
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

Contact Map

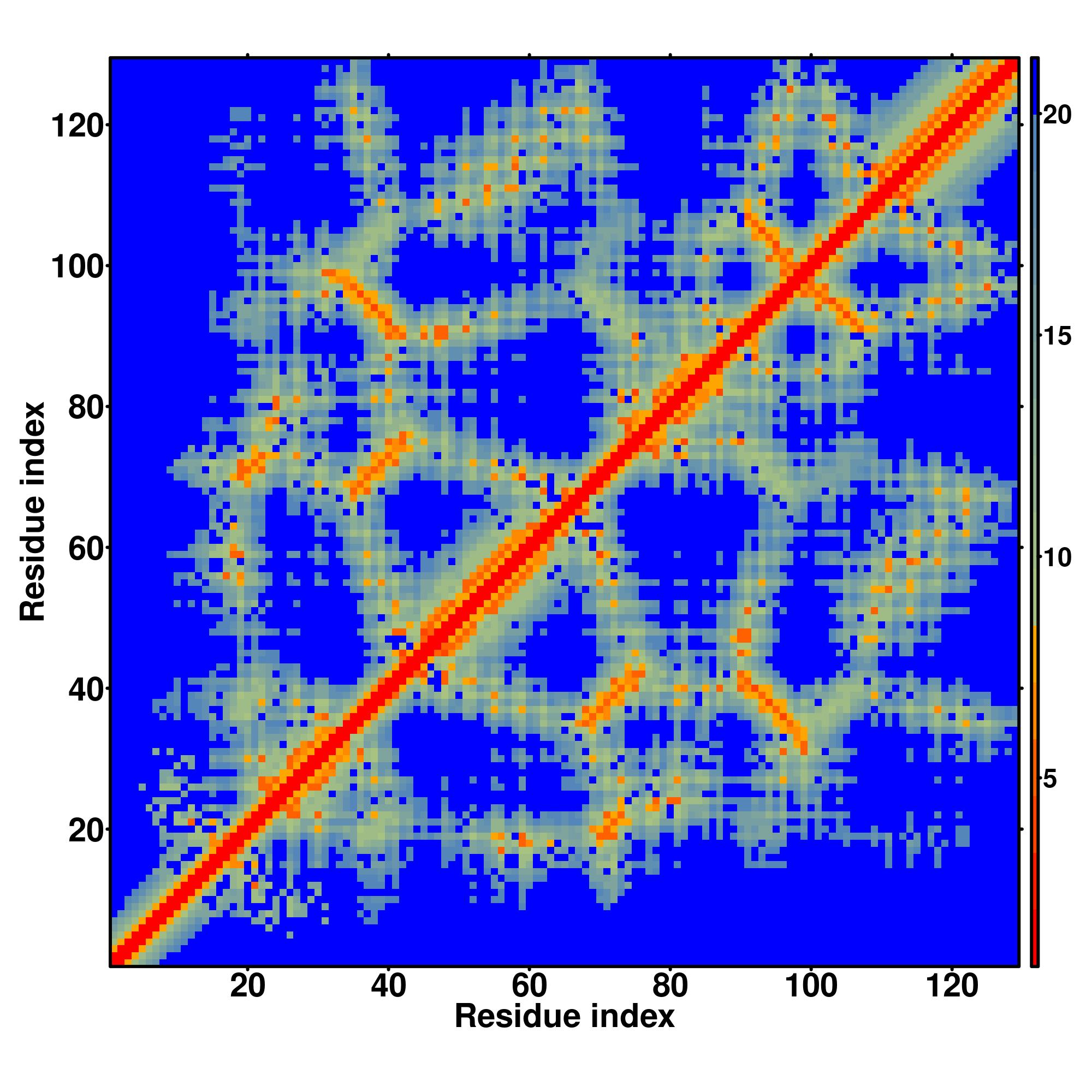

Distance Map

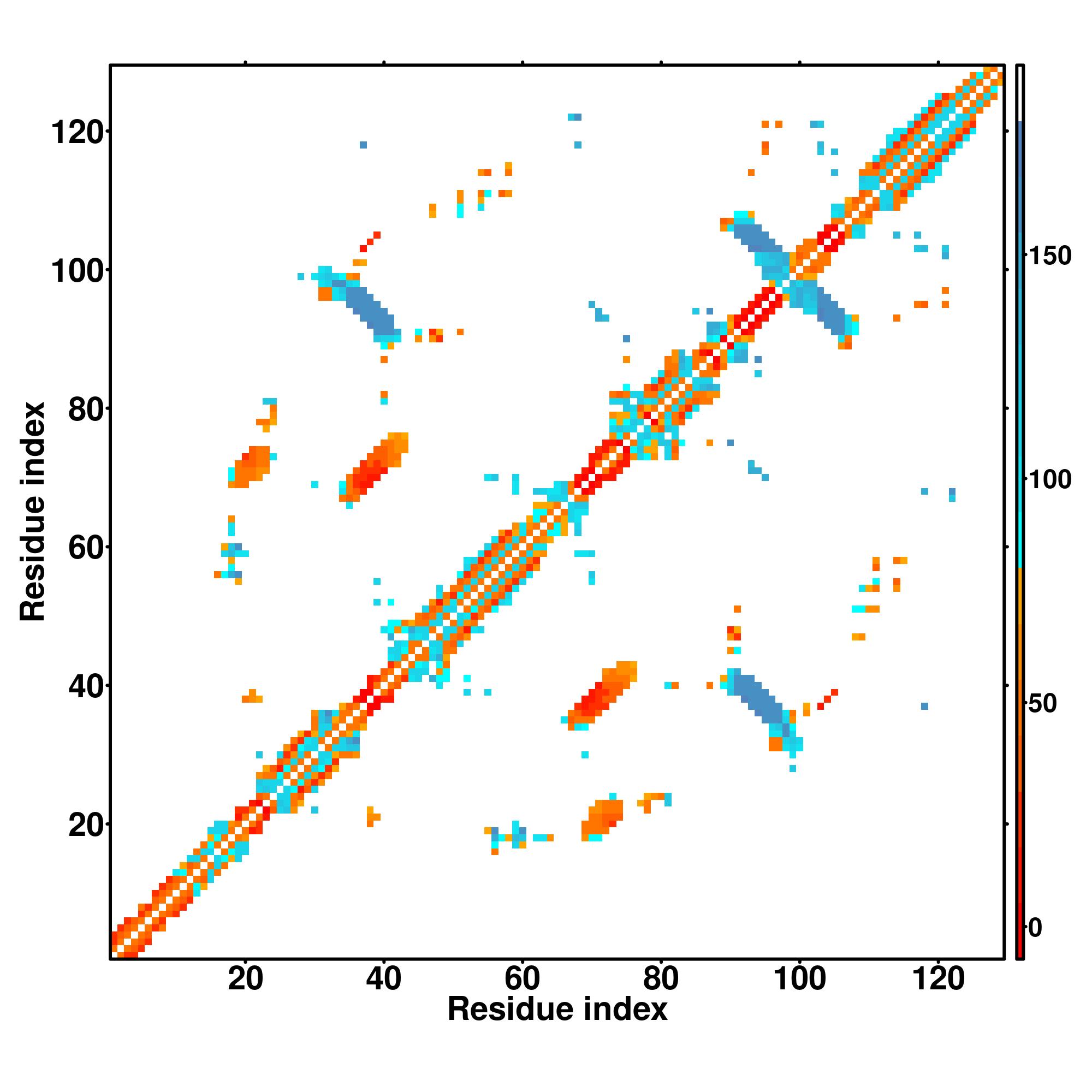

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100                 120

                   |                   |                   |                   |                   |                   |

SS
Seq

CCCCCCCCCCCCCCCCCCCSSSCHHHHHHHHHCCCSSSSSSCCCCHHHHHHHHHHHHHHHHHHCCCCSSSSSSSCCCCHHHHHHCCCCCCCSSSSSSCCCSCSSSCCCCCHHHHHHHHHHHCCCCCCCC
VTPEPEVEPPSAPELKQGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLALGLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVESQLQRTETGA

5xf7A

0.19

0.18

5.75

1.33

DEthreader

---T-KPVHI-L-EE-RSLLVLTPAGLTQMLNQTFLMVLFHNPSSKQSRNLAEELGKAVEIMGGKNGIGFGKVDITIEKELQQEFGITKAPELKLFFEGNEPISCKGVVESAALVVWLRRQISQK-AFT

3wgeA

0.96

0.83

23.26

1.82

SPARKS-K

-------------GSHMGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLALGLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVESQLQR-----

2l5lA

0.24

0.21

6.53

0.53

MapAlign

--------------GNGKVIHLTKAEFAKVYEGKPAIVDFYADWCGPCKMVAPILDELAKEYD--GQIVIYKVDTEKEQELAGAFGIRSIPSILFIPMEGKPEMAQGAMPKASFKKAIEFLLKKEGHHH

1dbyA

0.25

0.20

6.26

0.34

CEthreader

----------------MEAGAVNDDTFKNVVSSVPVLVDFWAPWCGPCRIIAPVVDEIAGEY--KDKLKCVKLNTDESPNVASEYGIRSIPTIMVFKGGKKCETIIGAVPKATIVQTVEKYLN------

3wgeA

0.96

0.83

23.26

1.74

MUSTER

-------------GSHMGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLALGLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVESQLQR-----

6yt3B

0.25

0.22

6.72

0.92

HHsearch

----------------DKIIHLTDDSFDTDVLDGAILVDFWAEWCGPCKMIAPILDEIADEYQ--GKLTVAKLNIDQNPGTAPKYGIRGIPTLLLFKNGEVAATKVGALSKGQLKEFLDANLEEEKRKR

3wgeA

0.97

0.83

23.25

2.22

FFAS-3D

--------------SHMGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLALGLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVESQLQR-----

2diyA

0.21

0.20

6.41

0.68

EigenThreader

SSGSSGMAAGAAEAAVAAVEEVSAGQFEELLRLKSLVVHFWAPWAPQCAQMNEVMAELAKELP---QVSFVKLEAEGVPEVSEKYEISSVPTFLFFKNSQKIDRLDGAH-APELTKKVQRHASSGPSSG

3wgeA

0.96

0.83

23.26

1.77

CNFpred

-------------GSHMGLYELSASNFELHVAQGDHFIKFFAPWCGHCKALAPTWEQLALGLEHSETVKIGKVDCTQHYELCSGNQVRGYPTLLWFRDGKKVDQYKGKRDLESLREYVESQLQR-----

2dj2A

0.32

0.29

8.87

1.33

DEthreader

-------GSSG--S-SGVTLSLTKDNFDDVVNNAIILVEFYAPWCGHCKKLAPEYEKAAKELKRSPPIPLAKVDATEQTDLAKRFDVSGYPTLKIFRKGRPFDYNG-PREKYGIVDYMIEQSGSGPSSG

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.8695

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	3wgeA	0.82	1.26	0.955	0.861	model1_3wgeA.pdb.gz
2	3idvA1	0.80	2.24	0.305	0.915	model1_3idvA1.pdb.gz
3	6esxA	0.80	1.12	0.294	0.845	model1_6esxA.pdb.gz
4	6ckpA	0.80	1.52	0.274	0.861	model1_6ckpA.pdb.gz
5	2dj2A	0.79	2.31	0.322	0.915	model1_2dj2A.pdb.gz
6	6yt3B1	0.78	1.62	0.252	0.853	model1_6yt3B1.pdb.gz
7	3dxbD	0.78	1.98	0.250	0.868	model1_3dxbD.pdb.gz
8	3t58A1	0.78	2.11	0.242	0.907	model1_3t58A1.pdb.gz
9	3ed3A	0.78	2.41	0.284	0.891	model1_3ed3A.pdb.gz
10	6h1yA	0.78	1.04	0.245	0.822	model1_6h1yA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003824	0.99	catalytic activity
GO:0016853	0.68	isomerase activity
GO:0003756	0.67	protein disulfide isomerase activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.99	cellular process
GO:0006457	0.96	protein folding
GO:0006950	0.93	response to stress
GO:0033554	0.92	cellular response to stress
GO:0044699	0.67	single-organism process
GO:0034976	0.61	response to endoplasmic reticulum stress
GO:0008152	0.57	metabolic process
GO:0065007	0.56	biological regulation
GO:0050789	0.55	regulation of biological process
GO:0050794	0.53	regulation of cellular process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044424	1.00	intracellular part
GO:0044444	0.92	cytoplasmic part
GO:0043226	0.81	organelle
GO:0043227	0.80	membrane-bounded organelle
GO:0043231	0.79	intracellular membrane-bounded organelle
GO:0005783	0.61	endoplasmic reticulum

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.184	2dmlA	0.758	2.59	0.306	0.907	5.3.4.1	NA
2	0.180	1aiuA	0.742	1.06	0.238	0.783	1.8.4.10	NA
3	0.178	1nswA	0.758	1.21	0.288	0.806	1.8.1.9	NA
4	0.166	1t00A	0.757	1.65	0.209	0.830	1.8.1.8	NA
5	0.162	1syrA	0.731	1.23	0.257	0.783	1.8.1.8	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.18	1cqgA	0.717	1.34	0.228	0.783	1.35	III	complex1.pdb.gz	44,45,47,48,75,76,82,87,88,89,90,91,106,107,108
2	0.10	1i5gA	0.639	3.34	0.149	0.861	1.08	TS5	complex2.pdb.gz	44,45,47,88,89,90
3	0.06	1x9m1	0.763	0.95	0.272	0.798	1.38	III	complex3.pdb.gz	44,45,46,47,50,75,79,82,83,88,89,90,105,106,107,108,109,113,116,117,120,121
4	0.06	2o8v2	0.766	1.40	0.264	0.822	1.44	III	complex4.pdb.gz	43,44,45,46,47,49,75,76,87,88,89,90,91,106,107,108
5	0.06	2pu91	0.747	1.70	0.252	0.814	1.38	III	complex5.pdb.gz	42,43,44,45,46,47,49,83,87,88,89,90
6	0.06	3a2vA	0.684	2.68	0.069	0.891	0.81	PER	complex6.pdb.gz	45,46,47,48
7	0.05	1aiu0	0.742	1.06	0.238	0.783	1.22	III	complex7.pdb.gz	45,75,76,79,83,87,88,89,90
8	0.05	3qfaD	0.742	1.05	0.228	0.783	1.08	GOL	complex8.pdb.gz	41,42,43,48,49
9	0.04	1oaz2	0.700	1.82	0.218	0.783	0.89	III	complex9.pdb.gz	88,89,90,107,108
10	0.03	1o810	0.637	3.37	0.144	0.861	0.83	III	complex10.pdb.gz	84,85,97,99,100,101,102,104

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
