D-I-TASSER Q7Z4T8

D-I-TASSER results for Q7Z4T8

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q7Z4T8
Protein Name: Inactive polypeptide N-acetylgalactosaminyltransferase-like protein 5
Gene Name: GALNTL5

Input Sequence in FASTA format

>Q7Z4T8 (443 residues)
MRNAIIQGLFYGSLTFGIWTALLFIYLHHNHVSSWQKKSQEPLSAWSPGKKVHQQIIYGS
EQIPKPHVIVKRTDEDKAKSMLGTDFNHTNPELHKELLKYGFNVIISRSLGIEREVPDTR
SKMCLQKHYPARLPTASIVICFYNEECNALFQTMSSVTNLTPHYFLEEIILVDDMSKVDD
LKEKLDYHLETFRGKVKIIRNKKREGLIRARLIGASHASGDVLVFLDSHCEVNRVWLEPL
LHAIAKDPKMVVCPLIDVIDDRTLEYKPSPLVRGTFDWNLQFKWDNVFSYEMDGPEGSTK
PIRSPAMSGGIFAIRRHYFNEIGQYDKDMDFWGRENLELSLRIWMCGGQLFIIPCSRVGH
ISKKQTGKPSTIISAMTHNYLRLVHVWLDEYKEQFFLRKPGLKYVTYGNIRERVELRKRL
GCKSFQWYLDNVFPELEASVNSL

Predicted Contact and Distance Map Used in D-I-TASSER simulation

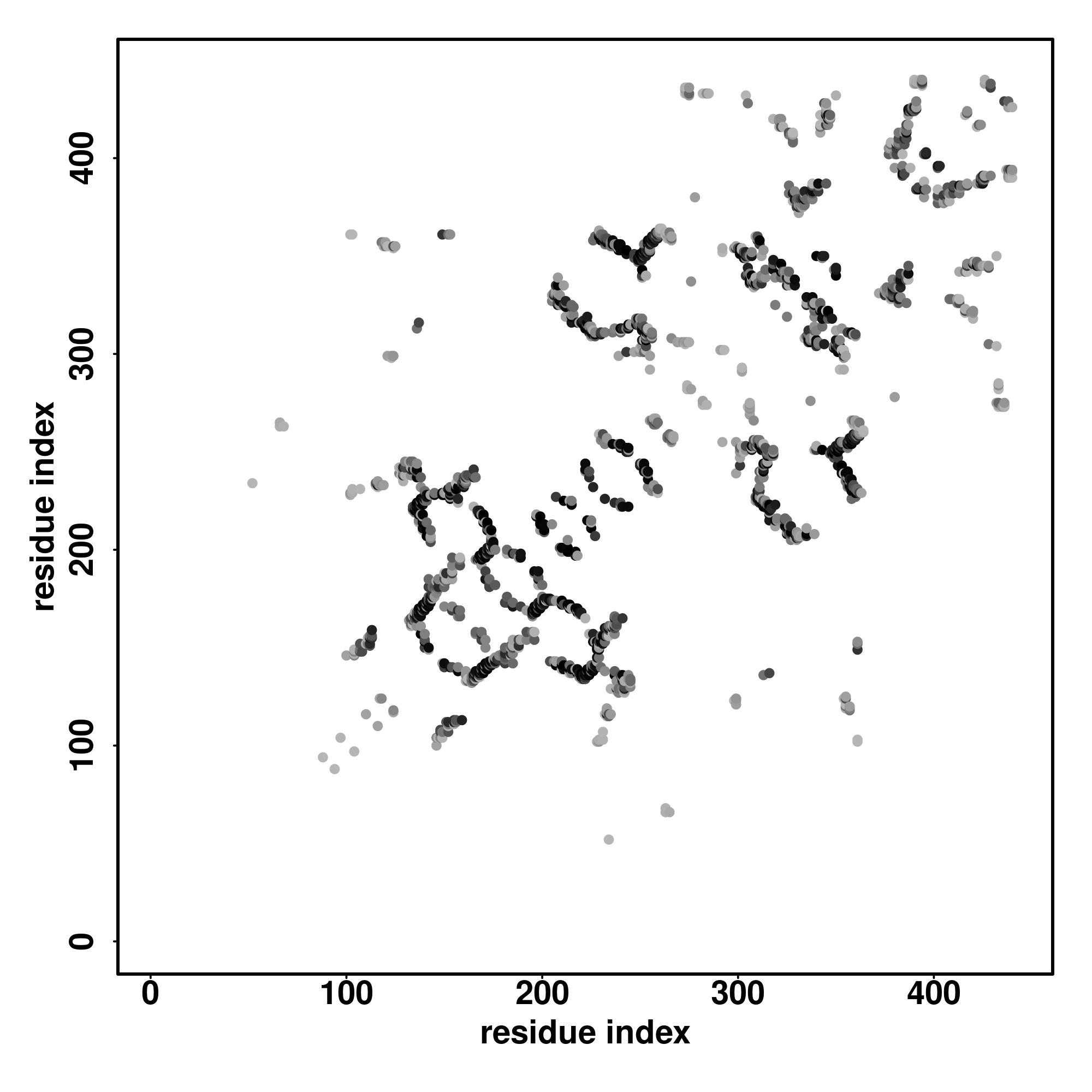

Contact Map

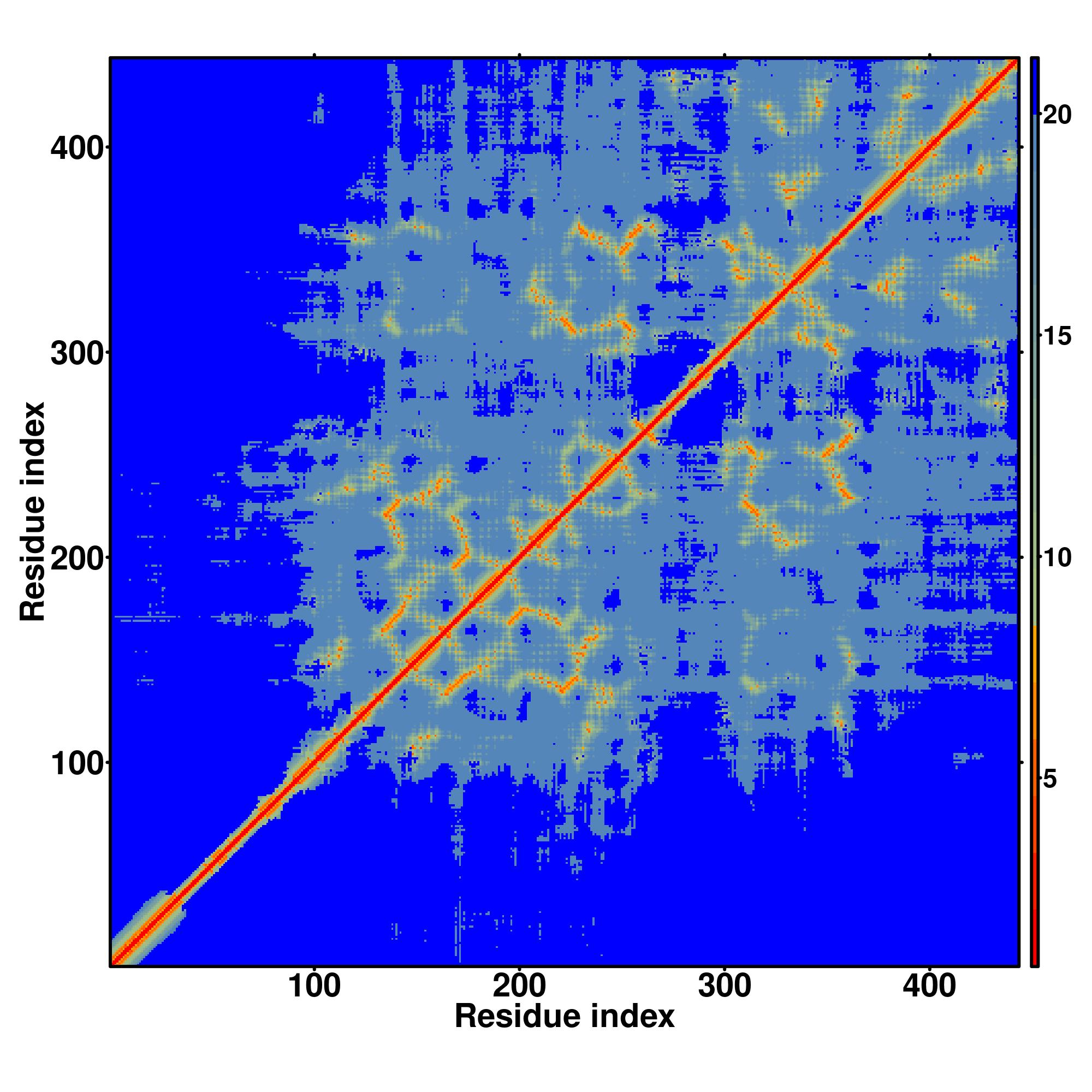

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q7Z4T8-D1	1-365	365		MRNAIIQGLFYGSLTFGIWTALLFIYLHHNHVSSWQKKSQEPLSAWSPGKKVHQQIIYGSEQIPKPHVIVKRTDEDKAKSMLGTDFNHTNPELHKELLKYGFNVIISRSLGIEREVPDTRSKMCLQKHYPARLPTASIVICFYNEECNALFQTMSSVTNLTPHYFLEEIILVDDMSKVDDLKEKLDYHLETFRGKVKIIRNKKREGLIRARLIGASHASGDVLVFLDSHCEVNRVWLEPLLHAIAKDPKMVVCPLIDVIDDRTLEYKPSPLVRGTFDWNLQFKWDNVFSYEMDGPEGSTKPIRSPAMSGGIFAIRRHYFNEIGQYDKDMDFWGRENLELSLRIWMCGGQLFIIPCSRVGHISKKQ
2	Q7Z4T8-D2	366-443	78		TGKPSTIISAMTHNYLRLVHVWLDEYKEQFFLRKPGLKYVTYGNIRERVELRKRLGCKSFQWYLDNVFPELEASVNSL

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.86

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6s22A	0.84	1.66	0.405	0.876	model1_6s22A.pdb.gz
2	6iwqA	0.84	2.84	0.380	0.905	model1_6iwqA.pdb.gz
3	6pxuA	0.82	2.42	0.392	0.876	model1_6pxuA.pdb.gz
4	5nqaA	0.82	1.54	0.432	0.847	model1_5nqaA.pdb.gz
5	2d7rA	0.81	2.60	0.372	0.862	model1_2d7rA.pdb.gz
6	6e4qA	0.80	2.15	0.426	0.838	model1_6e4qA.pdb.gz
7	2ffuA	0.75	2.54	0.413	0.806	model1_2ffuA.pdb.gz
8	1xhbA1	0.70	1.47	0.476	0.720	model1_1xhbA1.pdb.gz
9	2z86C1	0.44	3.23	0.220	0.497	model1_2z86C1.pdb.gz
10	3bcvA	0.35	3.06	0.190	0.391	model1_3bcvA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0016740	1.00	transferase activity
GO:0016757	0.99	transferase activity, transferring glycosyl groups
GO:0016758	0.89	transferase activity, transferring hexosyl groups
GO:0008194	0.89	UDP-glycosyltransferase activity
GO:0008376	0.86	acetylgalactosaminyltransferase activity
GO:0004653	0.85	polypeptide N-acetylgalactosaminyltransferase activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044723	1.00	single-organism carbohydrate metabolic process
GO:0009987	0.90	cellular process
GO:0044237	0.88	cellular metabolic process
GO:0043170	0.87	macromolecule metabolic process
GO:0044260	0.86	cellular macromolecule metabolic process
GO:0044763	0.85	single-organism cellular process
GO:0006464	0.85	cellular protein modification process
GO:0006486	0.83	protein glycosylation
GO:0006493	0.68	protein O-linked glycosylation

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0044424	0.98	intracellular part
GO:0044444	0.97	cytoplasmic part
GO:0044446	0.86	intracellular organelle part
GO:0044431	0.83	Golgi apparatus part
GO:0043227	0.82	membrane-bounded organelle
GO:0016020	0.81	membrane
GO:0043229	0.77	intracellular organelle
GO:0043231	0.76	intracellular membrane-bounded organelle
GO:0000139	0.63	Golgi membrane
GO:0044425	0.59	membrane part
GO:0031224	0.53	intrinsic component of membrane
GO:0016021	0.52	integral component of membrane
GO:0005794	0.52	Golgi apparatus

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.357	1xhbA	0.704	1.43	0.474	0.725	2.4.1.41	207,209,212,227,229,310,325,333,335
2	0.120	2d7iA	0.808	2.62	0.375	0.862	2.4.1.41	168
3	0.060	1fggA	0.370	3.33	0.108	0.422	2.4.1.135	NA
4	0.060	1s4nA	0.389	3.97	0.081	0.467	2.4.1.131	NA
5	0.060	2pa4B	0.384	4.03	0.053	0.467	2.7.7.9	398

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.68	2ffuA	0.753	2.54	0.413	0.806	1.07	UDP	complex1.pdb.gz	141,142,143,174,204,206,227,228,229,331,332,360,363
2	0.04	2wvlA	0.475	4.29	0.105	0.573	0.52	GDD	complex2.pdb.gz	140,141,142,170,172,210,211,214,227,228,229,309,310
3	0.04	1h7qA	0.436	3.43	0.117	0.501	0.54	TYD	complex3.pdb.gz	140,142,144,173,204,209,210,213,227,228
4	0.01	1h7lA	0.437	3.36	0.117	0.499	0.54	TYD	complex4.pdb.gz	140,173,227

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
