D-I-TASSER Q6NUT3

D-I-TASSER results for Q6NUT3

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q6NUT3
Protein Name: Major facilitator superfamily domain-containing protein 12
Gene Name: MFSD12

Input Sequence in FASTA format

>Q6NUT3 (480 residues)
MGPGPPAAGAAPSPRPLSLVARLSYAVGHFLNDLCASMWFTYLLLYLHSVRAYSSRGAGL
LLLLGQVADGLCTPLVGYEADRAASCCARYGPRKAWHLVGTVCVLLSFPFIFSPCLGCGA
ATPEWAALLYYGPFIVIFQFGWASTQISHLSLIPELVTNDHEKVELTALRYAFTVVANIT
VYGAAWLLLHLQGSSRVEPTQDISISDQLGGQDVPVFRNLSLLVVGVGAVFSLLFHLGTR
ERRRPHAEEPGEHTPLLAPATAQPLLLWKHWLREPAFYQVGILYMTTRLIVNLSQTYMAM
YLTYSLHLPKKFIATIPLVMYLSGFLSSFLMKPINKCIGRNMTYFSGLLVILAFAAWVAL
AEGLGVAVYAAAVLLGAGCATILVTSLAMTADLIGPHTNSGAFVYGSMSFLDKVANGLAV
MAIQSLHPCPSELCCRACVSFYHWAMVAVTGGVGVAAALCLCSLLLWPTRLRRWDRDARP

Predicted Contact and Distance Map Used in D-I-TASSER simulation

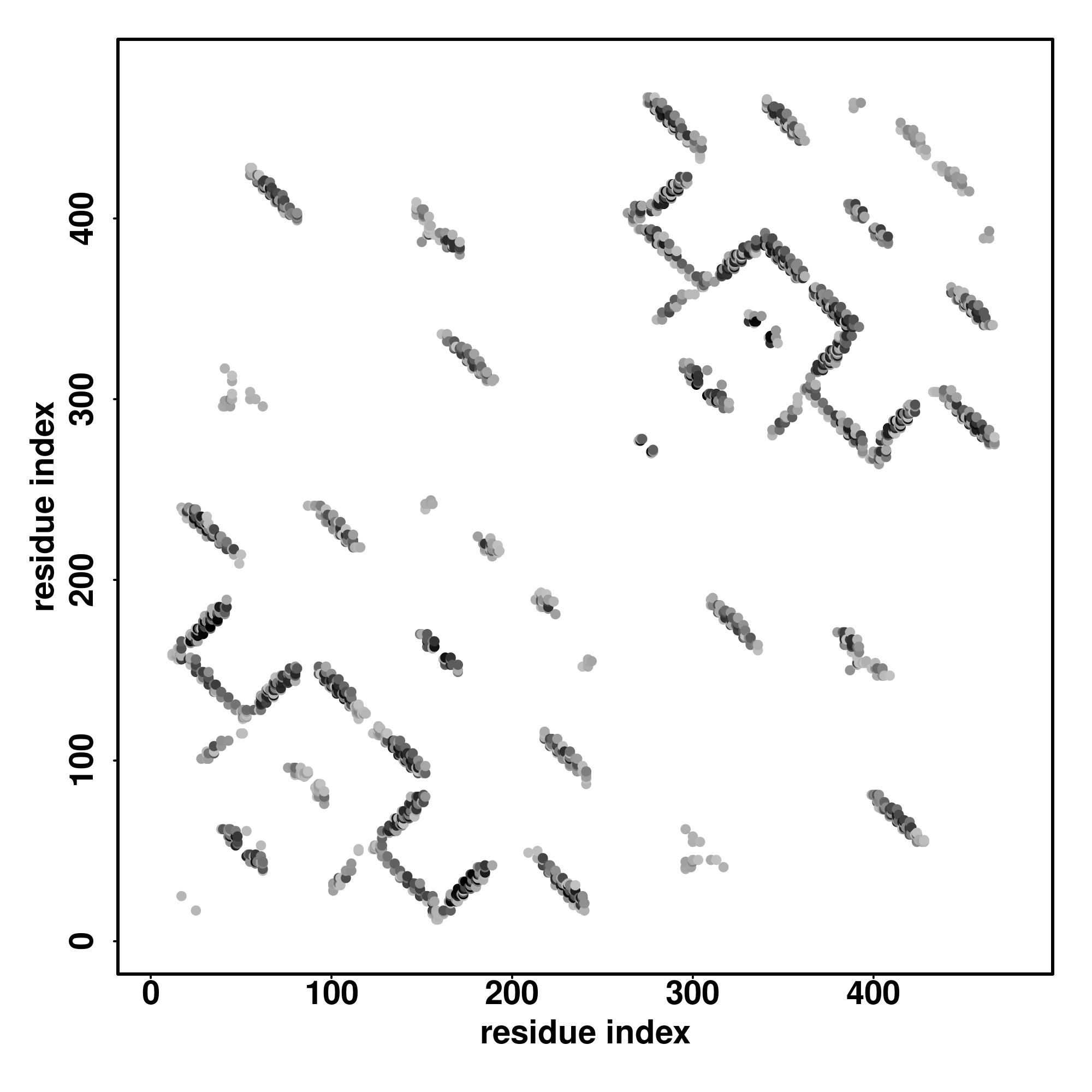

Contact Map

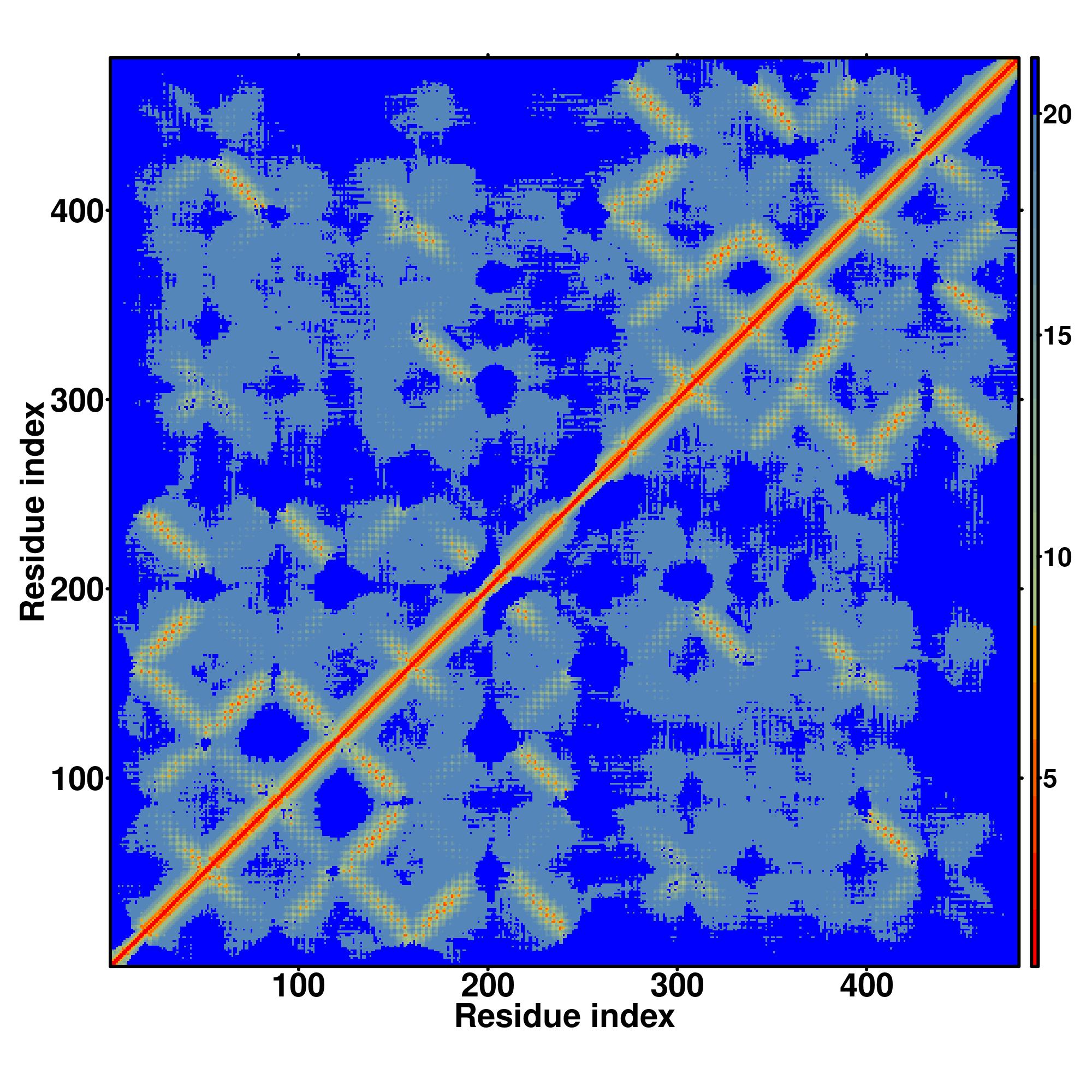

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q6NUT3-D1	1-245	245		MGPGPPAAGAAPSPRPLSLVARLSYAVGHFLNDLCASMWFTYLLLYLHSVRAYSSRGAGLLLLLGQVADGLCTPLVGYEADRAASCCARYGPRKAWHLVGTVCVLLSFPFIFSPCLGCGAATPEWAALLYYGPFIVIFQFGWASTQISHLSLIPELVTNDHEKVELTALRYAFTVVANITVYGAAWLLLHLQGSSRVEPTQDISISDQLGGQDVPVFRNLSLLVVGVGAVFSLLFHLGTRERRRP
2	Q6NUT3-D2	246-480	235		HAEEPGEHTPLLAPATAQPLLLWKHWLREPAFYQVGILYMTTRLIVNLSQTYMAMYLTYSLHLPKKFIATIPLVMYLSGFLSSFLMKPINKCIGRNMTYFSGLLVILAFAAWVALAEGLGVAVYAAAVLLGAGCATILVTSLAMTADLIGPHTNSGAFVYGSMSFLDKVANGLAVMAIQSLHPCPSELCCRACVSFYHWAMVAVTGGVGVAAALCLCSLLLWPTRLRRWDRDARP

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.87

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	4gbyA	0.76	3.46	0.096	0.885	model1_4gbyA.pdb.gz
2	7mjsX	0.76	3.60	0.181	0.883	model1_7mjsX.pdb.gz
3	7crzA	0.74	3.27	0.088	0.842	model1_7crzA.pdb.gz
4	6h7dA	0.73	3.24	0.101	0.844	model1_6h7dA.pdb.gz
5	4j05A	0.73	2.99	0.114	0.823	model1_4j05A.pdb.gz
6	4pypA	0.73	3.18	0.106	0.823	model1_4pypA.pdb.gz
7	6rw3A	0.73	3.21	0.122	0.833	model1_6rw3A.pdb.gz
8	7c76B	0.72	3.73	0.126	0.838	model1_7c76B.pdb.gz
9	6w4sF	0.72	3.37	0.111	0.835	model1_6w4sF.pdb.gz
10	7bc6A	0.72	3.01	0.106	0.806	model1_7bc6A.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0005215	0.99	transporter activity
GO:0022857	0.84	transmembrane transporter activity
GO:0022892	0.82	substrate-specific transporter activity
GO:0015293	0.76	symporter activity
GO:0022891	0.63	substrate-specific transmembrane transporter activity
GO:0015294	0.57	solute:cation symporter activity
GO:0051119	0.56	sugar transmembrane transporter activity
GO:0005402	0.55	cation:sugar symporter activity
GO:0005351	0.52	sugar:proton symporter activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0006810	0.95	transport
GO:0044699	0.92	single-organism process
GO:0044765	0.84	single-organism transport
GO:0009987	0.83	cellular process
GO:0071702	0.82	organic substance transport
GO:0044763	0.75	single-organism cellular process
GO:0006811	0.66	ion transport
GO:0006820	0.63	anion transport
GO:0015711	0.61	organic anion transport
GO:0008152	0.61	metabolic process
GO:0071704	0.60	organic substance metabolic process
GO:0044237	0.59	cellular metabolic process
GO:0055085	0.57	transmembrane transport
GO:0008643	0.56	carbohydrate transport
GO:0044710	0.50	single-organism metabolic process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0016021	1.00	integral component of membrane
GO:0016020	1.00	membrane
GO:0044424	0.93	intracellular part
GO:0044444	0.85	cytoplasmic part
GO:0044446	0.83	intracellular organelle part
GO:0005774	0.80	vacuolar membrane
GO:0005765	0.79	lysosomal membrane

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1gpeB	0.338	7.87	0.055	0.588	1.1.3.4	28,31
2	0.060	1h2aL	0.335	7.06	0.057	0.544	1.12.2.1	NA
3	0.060	2pffD	0.339	7.19	0.061	0.550	2.3.1.86	NA
4	0.060	1fa9A	0.304	7.68	0.054	0.523	2.4.1.1	NA
5	0.060	1e1yA	0.346	7.24	0.070	0.565	2.4.1.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	1zrtC	0.380	6.47	0.061	0.573	0.49	HEM	complex1.pdb.gz	23,24,25,26,28,29,97,98,100,104,146,149
2	0.01	2qjkJ	0.376	6.55	0.066	0.577	0.40	HEM	complex2.pdb.gz	24,25,28,29,94,95,99,100,150,153,156
3	0.01	1zrtC	0.380	6.47	0.061	0.573	0.45	HEM	complex3.pdb.gz	28,32,33,35,36,39,100,101,104,105,107,141,142,145
4	0.01	2yiuA	0.378	6.48	0.064	0.575	0.46	HEM	complex4.pdb.gz	28,31,33,90,93,94,97,98,100,101,104,145,148,152,156

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
