D-I-TASSER Q5TA45

D-I-TASSER results for Q5TA45

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q5TA45
Protein Name: Integrator complex subunit 11
Gene Name: INTS11

Input Sequence in FASTA format

>Q5TA45 (600 residues)
MPEIRVTPLGAGQDVGRSCILVSIAGKNVMLDCGMHMGFNDDRRFPDFSYITQNGRLTDF
LDCVIISHFHLDHCGALPYFSEMVGYDGPIYMTHPTQAICPILLEDYRKIAVDKKGEANF
FTSQMIKDCMKKVVAVHLHQTVQVDDELEIKAYYAGHVLGAAMFQIKVGSESVVYTGDYN
MTPDRHLGAAWIDKCRPNLLITESTYATTIRDSKRCRERDFLKKVHETVERGGKVLIPVF
ALGRAQELCILLETFWERMNLKVPIYFSTGLTEKANHYYKLFIPWTNQKIRKTFVQRNMF
EFKHIKAFDRAFADNPGPMVVFATPGMLHAGQSLQIFRKWAGNEKNMVIMPGYCVQGTVG
HKILSGQRKLEMEGRQVLEVKMQVEYMSFSAHADAKGIMQLVGQAEPESVLLVHGEAKKM
EFLKQKIEQELRVNCYMPANGETVTLPTSPSIPVGISLGLLKREMAQGLLPEAKKPRLLH
GTLIMKDSNFRLVSSEQALKELGLAEHQLRFTCRVHLHDTRKEQETALRVYSHLKSVLKD
HCVQHLPDGSVTVESVLLQAAAPSEDPGTKVLLVSWTYQDEELGSFLTSLLKKGLPQAPS

Predicted Contact and Distance Map Used in D-I-TASSER simulation

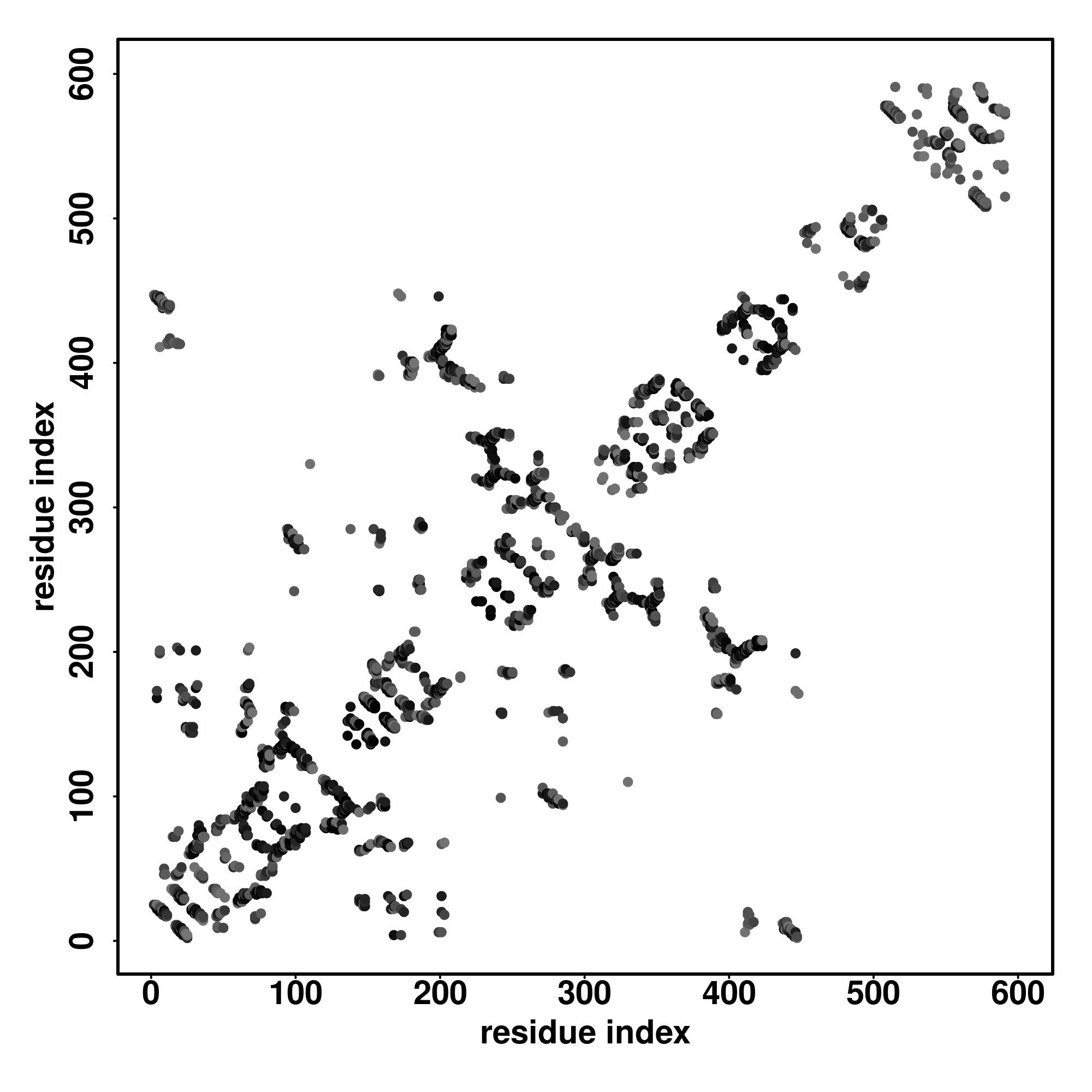

Contact Map

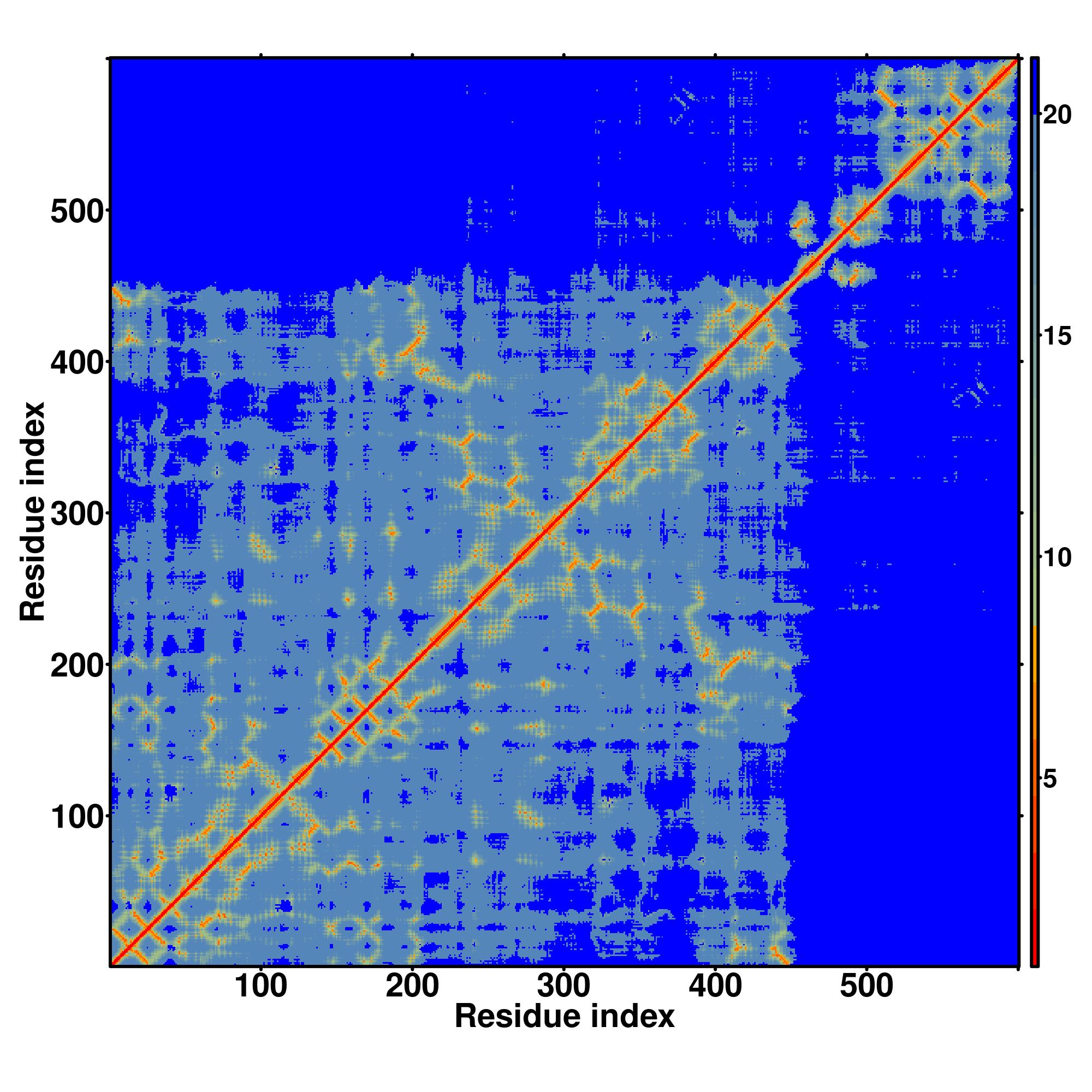

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q5TA45-D1	1-211,389-448	271		MPEIRVTPLGAGQDVGRSCILVSIAGKNVMLDCGMHMGFNDDRRFPDFSYITQNGRLTDFLDCVIISHFHLDHCGALPYFSEMVGYDGPIYMTHPTQAICPILLEDYRKIAVDKKGEANFFTSQMIKDCMKKVVAVHLHQTVQVDDELEIKAYYAGHVLGAAMFQIKVGSESVVYTGDYNMTPDRHLGAAWIDKCRPNLLITESTYATTIRFSAHADAKGIMQLVGQAEPESVLLVHGEAKKMEFLKQKIEQELRVNCYMPANGETVTLPT
2	Q5TA45-D2	212-388	177		DSKRCRERDFLKKVHETVERGGKVLIPVFALGRAQELCILLETFWERMNLKVPIYFSTGLTEKANHYYKLFIPWTNQKIRKTFVQRNMFEFKHIKAFDRAFADNPGPMVVFATPGMLHAGQSLQIFRKWAGNEKNMVIMPGYCVQGTVGHKILSGQRKLEMEGRQVLEVKMQVEYMS
3	Q5TA45-D3	449-600	152		SPSIPVGISLGLLKREMAQGLLPEAKKPRLLHGTLIMKDSNFRLVSSEQALKELGLAEHQLRFTCRVHLHDTRKEQETALRVYSHLKSVLKDHCVQHLPDGSVTVESVLLQAAAPSEDPGTKVLLVSWTYQDEELGSFLTSLLKKGLPQAPS

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.74

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	7bfqB	0.76	4.20	0.821	0.877	model1_7bfqB.pdb.gz
2	6v4xI	0.72	3.07	0.259	0.790	model1_6v4xI.pdb.gz
3	3af5A	0.72	1.57	0.308	0.742	model1_3af5A.pdb.gz
4	2ycbA	0.72	1.38	0.310	0.737	model1_2ycbA.pdb.gz
5	6i1dA	0.70	2.08	0.358	0.732	model1_6i1dA.pdb.gz
6	6q55A	0.69	2.40	0.358	0.735	model1_6q55A.pdb.gz
7	2xr1A	0.68	1.82	0.284	0.705	model1_2xr1A.pdb.gz
8	2i7vA	0.68	1.80	0.415	0.703	model1_2i7vA.pdb.gz
9	7cunI	0.66	4.50	0.142	0.780	model1_7cunI.pdb.gz
10	2dkfA	0.66	2.08	0.273	0.695	model1_2dkfA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:1901363	0.87	heterocyclic compound binding
GO:0097159	0.87	organic cyclic compound binding
GO:0003676	0.81	nucleic acid binding
GO:0003723	0.78	RNA binding
GO:0003824	0.65	catalytic activity
GO:0016787	0.60	hydrolase activity
GO:0016788	0.58	hydrolase activity, acting on ester bonds
GO:0004519	0.56	endonuclease activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.93	cellular process
GO:0008152	0.88	metabolic process
GO:0071704	0.87	organic substance metabolic process
GO:0044238	0.87	primary metabolic process
GO:0044237	0.87	cellular metabolic process
GO:0044260	0.86	cellular macromolecule metabolic process
GO:0006139	0.85	nucleobase-containing compound metabolic process
GO:0090304	0.84	nucleic acid metabolic process
GO:0016070	0.83	RNA metabolic process
GO:0006396	0.81	RNA processing
GO:0016071	0.50	mRNA metabolic process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044424	1.00	intracellular part
GO:0044446	0.95	intracellular organelle part
GO:0044428	0.94	nuclear part
GO:0032991	0.94	macromolecular complex
GO:0043234	0.93	protein complex
GO:0044451	0.92	nucleoplasm part
GO:0005847	0.56	mRNA cleavage and polyadenylation specificity factor complex

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.524	2dkfA	0.671	2.08	0.276	0.707	3.1.-.-	72
2	0.454	2i7tA	0.627	2.08	0.409	0.660	3.1.27.-	71,103,158,239,241,243,247,326,354,388,390,392
3	0.060	3b8eA	0.353	7.61	0.040	0.557	3.6.3.9	NA
4	0.060	1c7sA	0.277	7.65	0.047	0.440	3.2.1.52	NA
5	0.060	1y44A	0.353	3.17	0.158	0.390	3.1.26.11	9,78

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.30	3iemB	0.671	2.07	0.276	0.707	1.20	SSU	complex1.pdb.gz	15,37,38,71,72,107,110,111,205,240,241,242,271,327,353,392,414,416,419
2	0.05	3ielB	0.675	1.96	0.276	0.707	1.27	U5P	complex2.pdb.gz	15,205,206,240,244,352,353,390,391,392,414,416,419
3	0.05	3iemB	0.671	2.07	0.276	0.707	1.09	SSU	complex3.pdb.gz	5,7,28,48,49,58,60,83,441,443

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
