D-I-TASSER Q5T9S5

D-I-TASSER results for Q5T9S5

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: Q5T9S5
Protein Name: Coiled-coil domain-containing protein 18
Gene Name: CCDC18

Input Sequence in FASTA format

>Q5T9S5 (1454 residues)
MESSSSDYYNKDNEEESLLANVASLRHELKITEWSLQSLGEELSSVSPSENSDYAPNPSR
SEKLILDVQPSHPGLLNYSPYENVCKISGSSTDFQKKPRDKMFSSSAPVDQEIKSLREKL
NKLRQQNACLVTQNHSLMTKFESIHFELTQSRAKVSMLESAQQQAASVPILEEQIINLEA
EVSAQDKVLREAENKLEQSQKMVIEKEQSLQESKEECIKLKVDLLEQTKQGKRAERQRNE
ALYNAEELSKAFQQYKKKVAEKLEKVQAEEEILERNLTNCEKENKRLQERCGLYKSELEI
LKEKLRQLKEENNNGKEKLRIMAVKNSEVMAQLTESRQSILKLESELENKDEILRDKFSL
MNENRELKVRVAAQNERLDLCQQEIESSRVELRSLEKIISQLPLKRELFGFKSYLSKYQM
SSFSNKEDRCIGCCEANKLVISELRIKLAIKEAEIQKLHANLTANQLSQSLITCNDSQES
SKLSSLETEPVKLGGHQVESVKDQNQHTMNKQYEKERQRLVTGIEELRTKLIQIEAENSD
LKVNMAHRTSQFQLIQEELLEKASNSSKLESEMTKKCSQLLTLEKQLEEKIVAYSSIAAK
NAELEQELMEKNEKIRSLETNINTEHEKICLAFEKAKKIHLEQHKEMEKQIERLEAQLEK
KDQQFKEQEKTMSMLQQDIICKQHHLESLDRLLTESKGEMKKENMKKDEALKALQNQVSE
ETIKVRQLDSALEICKEELVLHLNQLEGNKEKFEKQLKKKSEEVYCLQKELKIKNHSLQE
TSEQNVILQHTLQQQQQMLQQETIRNGELEDTQTKLEKQVSKLEQELQKQRESSAEKLRK
MEEKCESAAHEADLKRQKVIELTGTARQVKIEMDQYKEELSKMEKEIMHLKRDGENKAMH
LSQLDMILDQTKTELEKKTNAVKELEKLQHSTETELTEALQKREVLETELQNAHGELKST
LRQLQELRDVLQKAQLSLEEKYTTIKDLTAELRECKMEIEDKKQELLEMDQALKERNWEL
KQRAAQVTHLDMTIREHRGEMEQKIIKLEGTLEKSELELKECNKQIESLNDKLQNAKEQL
REKEFIMLQNEQEISQLKKEIERTQQRMKEMESVMKEQEQYIATQYKEAIDLGQELRLTR
EQVQNSHTELAEARHQQVQAQREIERLSSELEDMKQLSKEKDAHGNHLAEELGASKVREA
HLEARMQAEIKKLSAEVESLKEAYHMEMISHQENHAKWKISADSQKSSVQQLNEQLEKAK
LELEEAQDTVSNLHQQVQDRNEVIEAANEALLTKESELTRLQAKISGHEKAEDIKFLPAP
FTSPTEIMPDVQDPKFAKCFHTSFSKCTKLRRSISASDLTFKIHGDEDLSEELLQDLKKM
QLEQPSTLEESHKNLTYTQPDSFKPLTYNLEADSSENNDFNTLSGMLRYINKEVRLLKKS
SMQTGAGLNQGENV

Predicted Contact and Distance Map Used in D-I-TASSER simulation

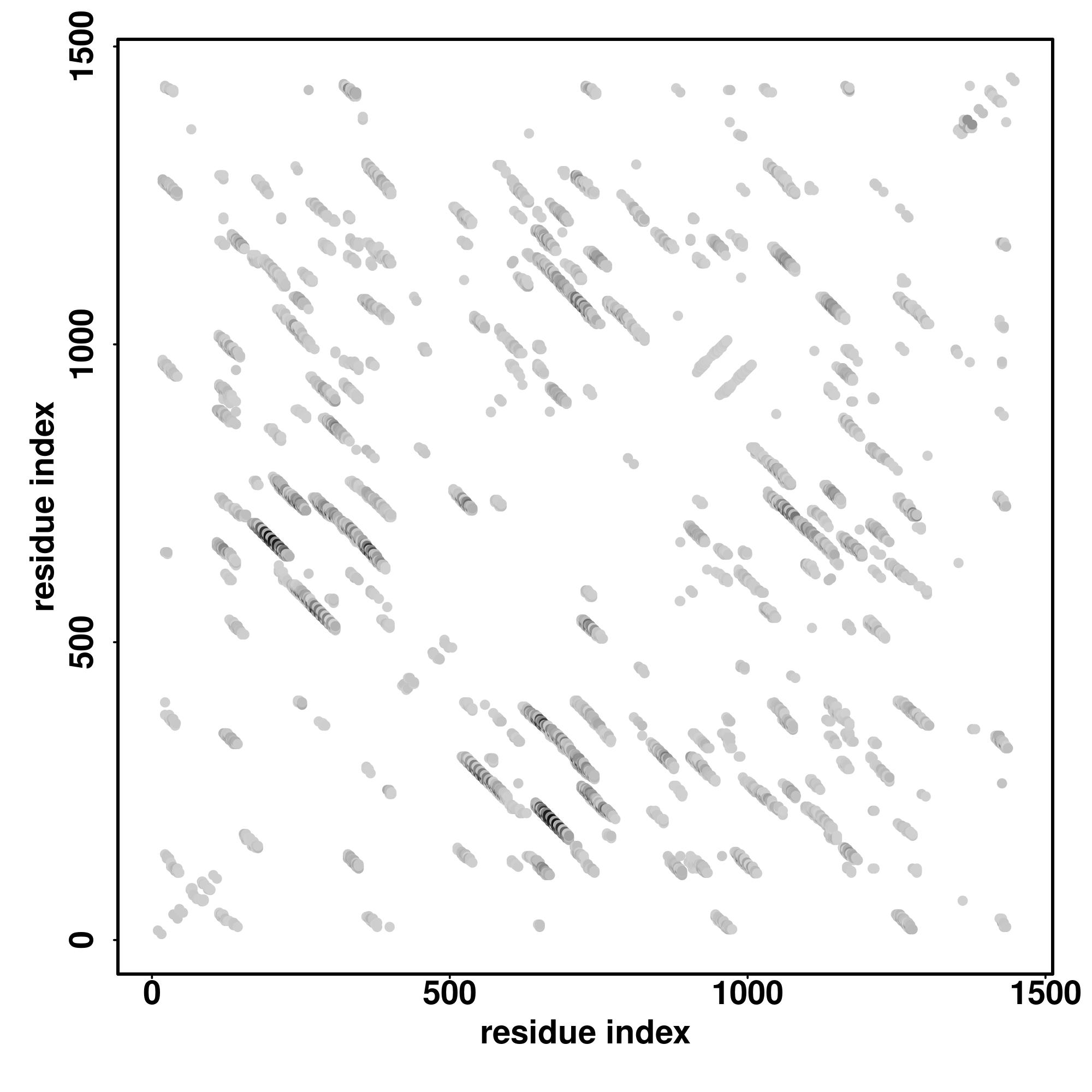

Contact Map

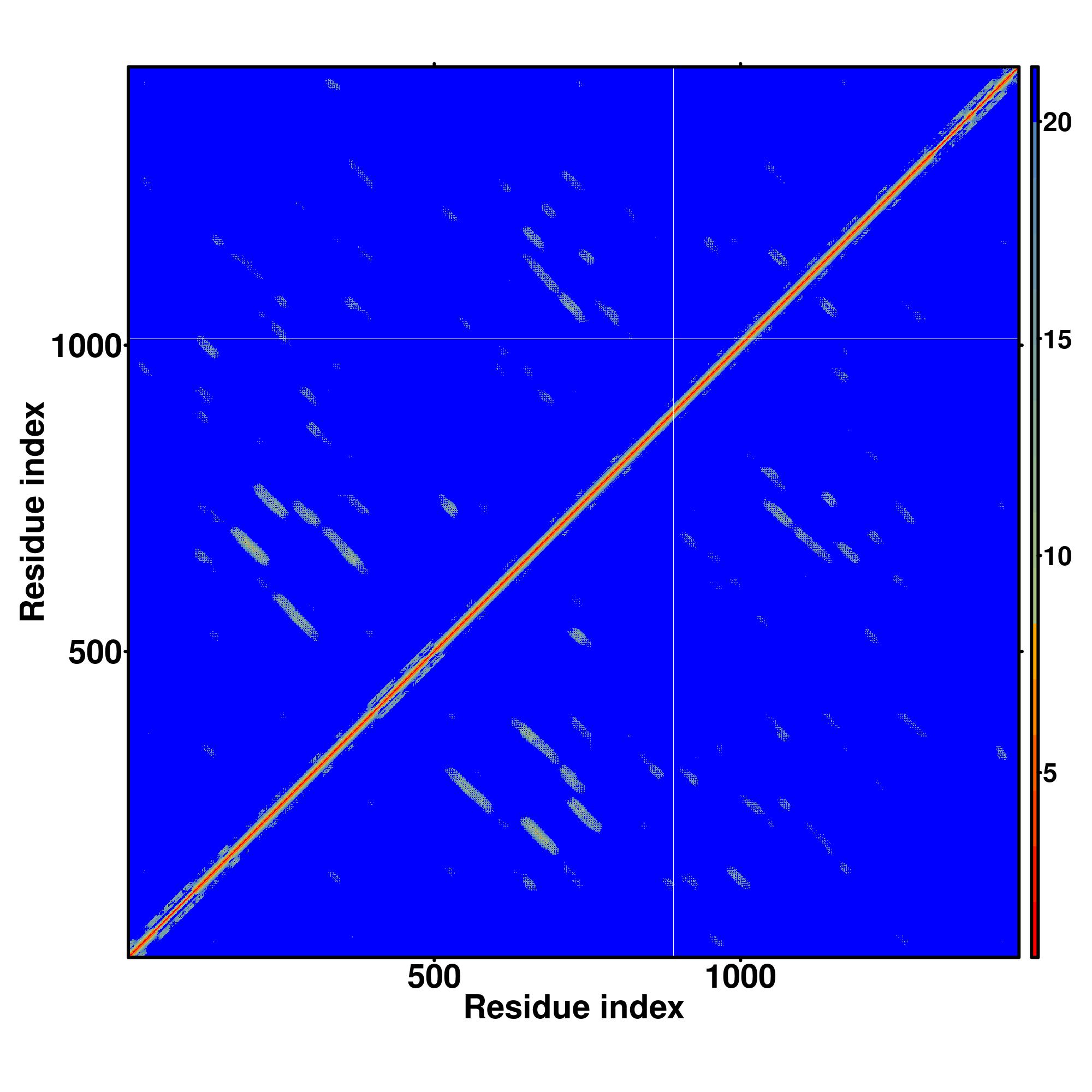

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	Q5T9S5-D1	1-1183	1183		MESSSSDYYNKDNEEESLLANVASLRHELKITEWSLQSLGEELSSVSPSENSDYAPNPSRSEKLILDVQPSHPGLLNYSPYENVCKISGSSTDFQKKPRDKMFSSSAPVDQEIKSLREKLNKLRQQNACLVTQNHSLMTKFESIHFELTQSRAKVSMLESAQQQAASVPILEEQIINLEAEVSAQDKVLREAENKLEQSQKMVIEKEQSLQESKEECIKLKVDLLEQTKQGKRAERQRNEALYNAEELSKAFQQYKKKVAEKLEKVQAEEEILERNLTNCEKENKRLQERCGLYKSELEILKEKLRQLKEENNNGKEKLRIMAVKNSEVMAQLTESRQSILKLESELENKDEILRDKFSLMNENRELKVRVAAQNERLDLCQQEIESSRVELRSLEKIISQLPLKRELFGFKSYLSKYQMSSFSNKEDRCIGCCEANKLVISELRIKLAIKEAEIQKLHANLTANQLSQSLITCNDSQESSKLSSLETEPVKLGGHQVESVKDQNQHTMNKQYEKERQRLVTGIEELRTKLIQIEAENSDLKVNMAHRTSQFQLIQEELLEKASNSSKLESEMTKKCSQLLTLEKQLEEKIVAYSSIAAKNAELEQELMEKNEKIRSLETNINTEHEKICLAFEKAKKIHLEQHKEMEKQIERLEAQLEKKDQQFKEQEKTMSMLQQDIICKQHHLESLDRLLTESKGEMKKENMKKDEALKALQNQVSEETIKVRQLDSALEICKEELVLHLNQLEGNKEKFEKQLKKKSEEVYCLQKELKIKNHSLQETSEQNVILQHTLQQQQQMLQQETIRNGELEDTQTKLEKQVSKLEQELQKQRESSAEKLRKMEEKCESAAHEADLKRQKVIELTGTARQVKIEMDQYKEELSKMEKEIMHLKRDGENKAMHLSQLDMILDQTKTELEKKTNAVKELEKLQHSTETELTEALQKREVLETELQNAHGELKSTLRQLQELRDVLQKAQLSLEEKYTTIKDLTAELRECKMEIEDKKQELLEMDQALKERNWELKQRAAQVTHLDMTIREHRGEMEQKIIKLEGTLEKSELELKECNKQIESLNDKLQNAKEQLREKEFIMLQNEQEISQLKKEIERTQQRMKEMESVMKEQEQYIATQYKEAIDLGQELRLTREQVQNSHTELAEARHQQVQAQREIERLSSELEDMKQLSKEKDA
2	Q5T9S5-D2	1184-1454	271		HGNHLAEELGASKVREAHLEARMQAEIKKLSAEVESLKEAYHMEMISHQENHAKWKISADSQKSSVQQLNEQLEKAKLELEEAQDTVSNLHQQVQDRNEVIEAANEALLTKESELTRLQAKISGHEKAEDIKFLPAPFTSPTEIMPDVQDPKFAKCFHTSFSKCTKLRRSISASDLTFKIHGDEDLSEELLQDLKKMQLEQPSTLEESHKNLTYTQPDSFKPLTYNLEADSSENNDFNTLSGMLRYINKEVRLLKKSSMQTGAGLNQGENV

Top 1 final models from D-I-TASSER

SpinHigh qualityWhite background

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.3187

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

SpinHigh qualityWhite background

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	3hr2B	0.23	7.11	0.045	0.291	model1_3hr2B.pdb.gz
2	3hr2A	0.21	8.02	0.037	0.278	model1_3hr2A.pdb.gz
3	1sjjA	0.13	5.49	0.074	0.151	model1_1sjjA.pdb.gz
4	2uvcG	0.12	9.40	0.031	0.177	model1_2uvcG.pdb.gz
5	2pffB	0.12	9.57	0.019	0.179	model1_2pffB.pdb.gz
6	3ghgK	0.11	5.06	0.041	0.127	model1_3ghgK.pdb.gz
7	3hmjG	0.11	9.31	0.032	0.158	model1_3hmjG.pdb.gz
8	2zuoM	0.11	8.13	0.048	0.147	model1_2zuoM.pdb.gz
9	1m1jE	0.11	5.12	0.069	0.122	model1_1m1jE.pdb.gz
10	3ghgJ	0.08	3.35	0.055	0.083	model1_3ghgJ.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003824	0.62	catalytic activity
GO:0043169	0.54	cation binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.95	cellular process
GO:0044699	0.84	single-organism process
GO:0044763	0.78	single-organism cellular process
GO:0065007	0.62	biological regulation
GO:0016043	0.62	cellular component organization
GO:0050789	0.57	regulation of biological process
GO:0006996	0.52	organelle organization
GO:0007017	0.51	microtubule-based process
GO:0050794	0.50	regulation of cellular process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044424	1.00	intracellular part
GO:0043226	0.98	organelle
GO:0043229	0.97	intracellular organelle
GO:0044422	0.94	organelle part
GO:0044444	0.93	cytoplasmic part
GO:0044446	0.91	intracellular organelle part
GO:0044430	0.83	cytoskeletal part
GO:0043227	0.82	membrane-bounded organelle
GO:0005737	0.82	cytoplasm
GO:0043232	0.81	intracellular non-membrane-bounded organelle
GO:0043231	0.72	intracellular membrane-bounded organelle
GO:0005856	0.70	cytoskeleton
GO:0032991	0.69	macromolecular complex
GO:0043234	0.68	protein complex
GO:0016020	0.68	membrane
GO:0031982	0.58	vesicle
GO:0031988	0.57	membrane-bounded vesicle
GO:0042995	0.55	cell projection
GO:0005886	0.54	plasma membrane
GO:0005829	0.54	cytosol
GO:0044425	0.52	membrane part
GO:0044421	0.52	extracellular region part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

SpinHigh qualityWhite background

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	2vz8B	0.094	8.85	0.023	0.133	2.3.1.85	NA
2	0.060	3btaA	0.077	8.15	0.040	0.104	3.4.24.69	NA
3	0.060	3hmjA	0.096	9.58	0.040	0.142	2.3.1.86	NA
4	0.060	1ynnJ	0.046	6.05	0.011	0.056	2.7.7.6	NA
5	0.060	1fo4A	0.059	8.38	0.019	0.083	1.17.1.4	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

SpinHigh qualityWhite background

Template proteins with similar binding site:

No Binding sites was predicted

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
