D-I-TASSER P27448

D-I-TASSER results for P27448

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: P27448
Protein Name: MAP/microtubule affinity-regulating kinase 3
Gene Name: MARK3

Input Sequence in FASTA format

>P27448 (753 residues)
MSTRTPLPTVNERDTENHTSHGDGRQEVTSRTSRSGARCRNSIASCADEQPHIGNYRLLK
TIGKGNFAKVKLARHILTGREVAIKIIDKTQLNPTSLQKLFREVRIMKILNHPNIVKLFE
VIETEKTLYLIMEYASGGEVFDYLVAHGRMKEKEARSKFRQIVSAVQYCHQKRIVHRDLK
AENLLLDADMNIKIADFGFSNEFTVGGKLDTFCGSPPYAAPELFQGKKYDGPEVDVWSLG
VILYTLVSGSLPFDGQNLKELRERVLRGKYRIPFYMSTDCENLLKRFLVLNPIKRGTLEQ
IMKDRWINAGHEEDELKPFVEPELDISDQKRIDIMVGMGYSQEEIQESLSKMKYDEITAT
YLLLGRKSSELDASDSSSSSNLSLAKVRPSSDLNNSTGQSPHHKVQRSVSSSQKQRRYSD
HAGPAIPSVVAYPKRSQTSTADSDLKEDGISSRKSSGSAVGGKGIAPASPMLGNASNPNK
ADIPERKKSSTVPSSNTASGGMTRRNTYVCSERTTADRHSVIQNGKENSTIPDQRTPVAS
THSISSAATPDRIRFPRGTASRSTFHGQPRERRTATYNGPPASPSLSHEATPLSQTRSRG
STNLFSKLTSKLTRRNMSFRFIKRLPTEYERNGRYEGSSRNVSAEQKDENKEAKPRSLRF
TWSMKTTSSMDPGDMMREIRKVLDANNCDYEQRERFLLFCVHGDGHAENLVQWEMEVCKL
PRLSLNGVRFKRISGTSIAFKNIASKIANELKL

Predicted Contact and Distance Map Used in D-I-TASSER simulation

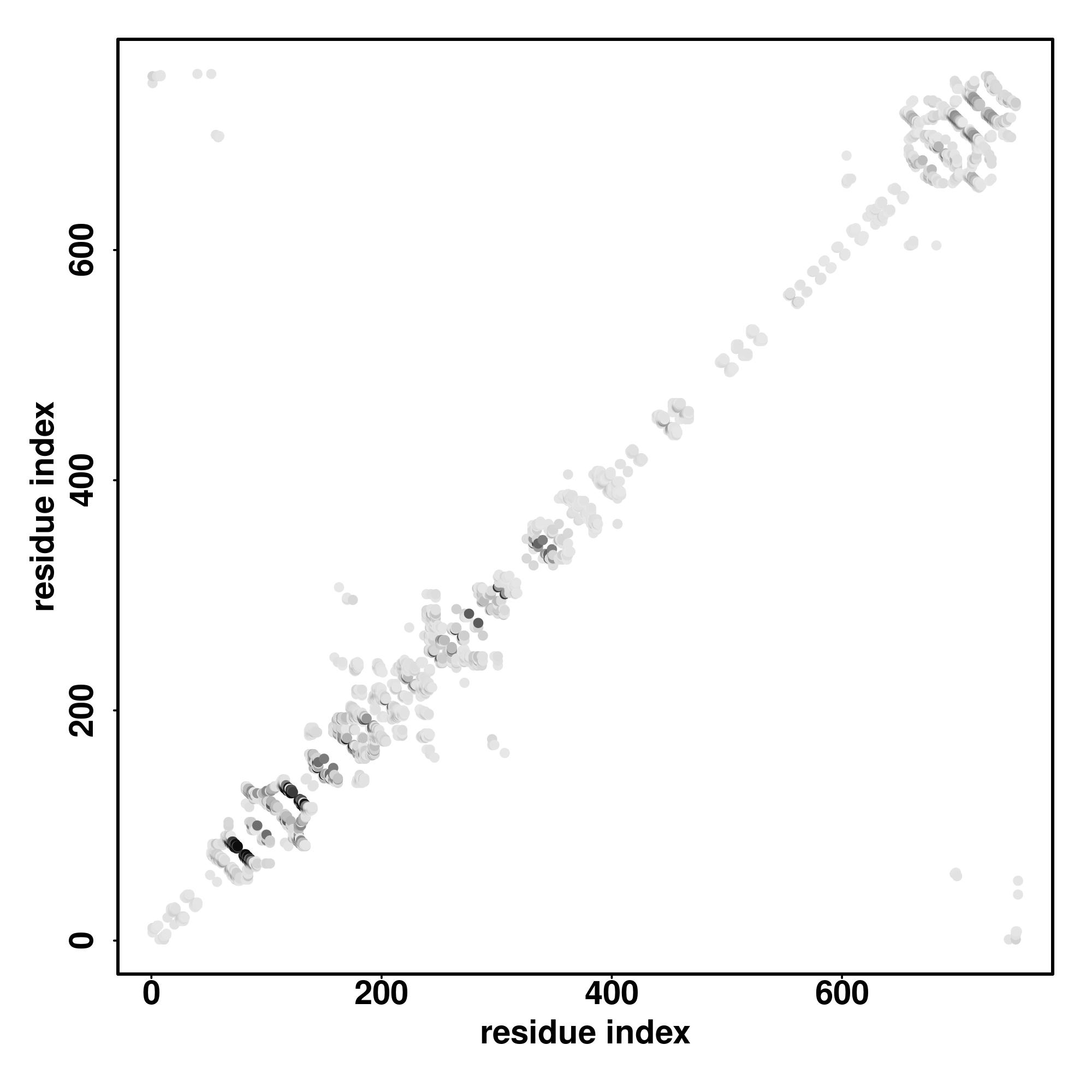

Contact Map

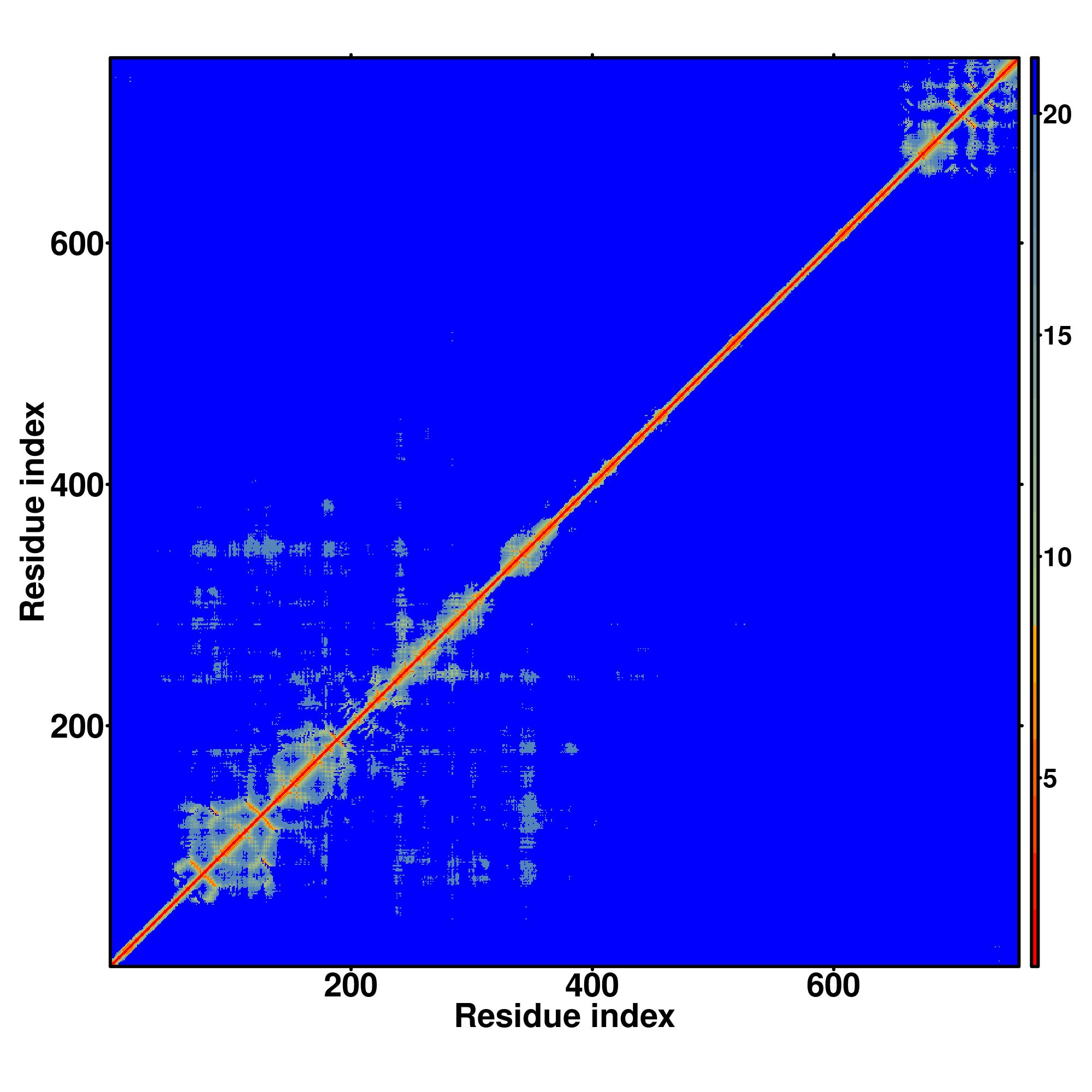

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	P27448-D1	1-319	319		MSTRTPLPTVNERDTENHTSHGDGRQEVTSRTSRSGARCRNSIASCADEQPHIGNYRLLKTIGKGNFAKVKLARHILTGREVAIKIIDKTQLNPTSLQKLFREVRIMKILNHPNIVKLFEVIETEKTLYLIMEYASGGEVFDYLVAHGRMKEKEARSKFRQIVSAVQYCHQKRIVHRDLKAENLLLDADMNIKIADFGFSNEFTVGGKLDTFCGSPPYAAPELFQGKKYDGPEVDVWSLGVILYTLVSGSLPFDGQNLKELRERVLRGKYRIPFYMSTDCENLLKRFLVLNPIKRGTLEQIMKDRWINAGHEEDELKPF
2	P27448-D2	320-474	155		VEPELDISDQKRIDIMVGMGYSQEEIQESLSKMKYDEITATYLLLGRKSSELDASDSSSSSNLSLAKVRPSSDLNNSTGQSPHHKVQRSVSSSQKQRRYSDHAGPAIPSVVAYPKRSQTSTADSDLKEDGISSRKSSGSAVGGKGIAPASPMLGN
3	P27448-D3	475-644	170		ASNPNKADIPERKKSSTVPSSNTASGGMTRRNTYVCSERTTADRHSVIQNGKENSTIPDQRTPVASTHSISSAATPDRIRFPRGTASRSTFHGQPRERRTATYNGPPASPSLSHEATPLSQTRSRGSTNLFSKLTSKLTRRNMSFRFIKRLPTEYERNGRYEGSSRNVSA
4	P27448-D4	645-753	109		EQKDENKEAKPRSLRFTWSMKTTSSMDPGDMMREIRKVLDANNCDYEQRERFLLFCVHGDGHAENLVQWEMEVCKLPRLSLNGVRFKRISGTSIAFKNIASKIANELKL

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.41

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	4tnbA	0.41	3.41	0.184	0.444	model1_4tnbA.pdb.gz
2	4yhjA	0.40	3.64	0.190	0.442	model1_4yhjA.pdb.gz
3	2acxA	0.40	3.17	0.190	0.430	model1_2acxA.pdb.gz
4	3c4wB	0.40	3.49	0.211	0.434	model1_3c4wB.pdb.gz
5	2bcjA	0.39	4.04	0.140	0.438	model1_2bcjA.pdb.gz
6	1koaA	0.38	3.94	0.192	0.426	model1_1koaA.pdb.gz
7	6c0tA	0.38	2.99	0.272	0.402	model1_6c0tA.pdb.gz
8	1kobA	0.38	3.61	0.233	0.417	model1_1kobA.pdb.gz
9	4myiA	0.37	3.87	0.269	0.414	model1_4myiA.pdb.gz
10	6ygnA	0.37	3.79	0.152	0.414	model1_6ygnA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003824	0.97	catalytic activity
GO:0004672	0.96	protein kinase activity
GO:0004674	0.86	protein serine/threonine kinase activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0009987	0.92	cellular process
GO:0065007	0.86	biological regulation
GO:0050789	0.85	regulation of biological process
GO:0050794	0.84	regulation of cellular process
GO:0008152	0.82	metabolic process
GO:0071704	0.81	organic substance metabolic process
GO:0044237	0.81	cellular metabolic process
GO:0044238	0.80	primary metabolic process
GO:0044260	0.79	cellular macromolecule metabolic process
GO:0006796	0.77	phosphate-containing compound metabolic process
GO:0006464	0.76	cellular protein modification process
GO:0006468	0.75	protein phosphorylation
GO:0007165	0.65	signal transduction
GO:0044699	0.54	single-organism process

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0044424	0.92	intracellular part
GO:0043226	0.59	organelle
GO:0043229	0.57	intracellular organelle
GO:0005737	0.55	cytoplasm
GO:0043227	0.53	membrane-bounded organelle
GO:0043231	0.52	intracellular membrane-bounded organelle

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	2z60A	0.327	2.84	0.234	0.352	2.7.10.2	482
2	0.060	2esmA	0.361	3.92	0.237	0.400	2.7.11.1	NA
3	0.060	3db8A	0.317	2.66	0.293	0.335	2.7.11.21	NA
4	0.060	2v7oA	0.349	3.22	0.315	0.377	2.7.11.17	NA
5	0.060	2vd5A	0.357	3.44	0.213	0.389	2.7.11.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.43	2uw7A	0.367	3.37	0.291	0.396	1.11	GVP	complex1.pdb.gz	63,64,65,68,69,70,83,132,133,134,135,139,182,183,185,195,196
2	0.21	2uw8A	0.366	3.47	0.298	0.397	0.92	GVQ	complex2.pdb.gz	62,63,64,69,70,83,183,195,531
3	0.21	3l9mA	0.366	3.30	0.292	0.394	0.88	L9M	complex3.pdb.gz	62,63,66,70,83,85,132,133,135,139,182,183,185
4	0.20	2gnjA	0.364	3.37	0.300	0.394	0.82	Y27	complex4.pdb.gz	62,64,65,66,70,83,133,134,135,183,196
5	0.17	1szmB	0.344	3.10	0.272	0.372	0.97	BI4	complex5.pdb.gz	62,64,70,83,85,132,136,137,138
6	0.11	3aglA	0.362	3.33	0.284	0.393	0.95	A03	complex6.pdb.gz	65,66,67,68,70,83,87,116,132,133,134,135,139,141,145,181,182,185,195,199,217,245,251
7	0.04	2uvzA	0.365	3.32	0.291	0.394	0.84	III	complex7.pdb.gz	139,141,142,145,180,181,182,199,212,213,214,215,216,217,245,249,250,251

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
