D-I-TASSER P26010-D2

D-I-TASSER results for P26010-D2

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>P26010 (134 residues)
EPRGQQEVLQDQPLSQGARGEGATQLAPQRVRVTLRPGEPQQLQVRFLRAESTVTLEHSS
LPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRA
LGFSEELIVELHTL

Predicted Secondary Structure

Sequence	20 40 60 80 100 120 \| \| \| \| \| \| EPRGQQEVLQDQPLSQGARGEGATQLAPQRVRVTLRPGEPQQLQVRFLRAESTVTLEHSSLPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRALGFSEELIVELHTL
Prediction	CCCCCSSSSSCCCCCCCCCCCCHHHCCCCCSSSSSCCCCHHHHHHHHHHHCCSSSSSCCCCCCCSSSSSSSSCCCCCSCCCCCCCCCSCCCCCCCCSSSSSSSSSSCCCCCCCCSSSSSSCCCCSSSSSSSSSC
Confidence	99774588505665456664423340898379996499446899999864338999608999956999998859996035755666521560279289999999973488998489999403541799999949
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 120 \| \| \| \| \| \| EPRGQQEVLQDQPLSQGARGEGATQLAPQRVRVTLRPGEPQQLQVRFLRAESTVTLEHSSLPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRALGFSEELIVELHTL
Prediction	83655352255441356554751453345423240375354214430650464040436743750403030405755546456454440560436540404030305613765430303024044504040558
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

Contact Map

Distance Map

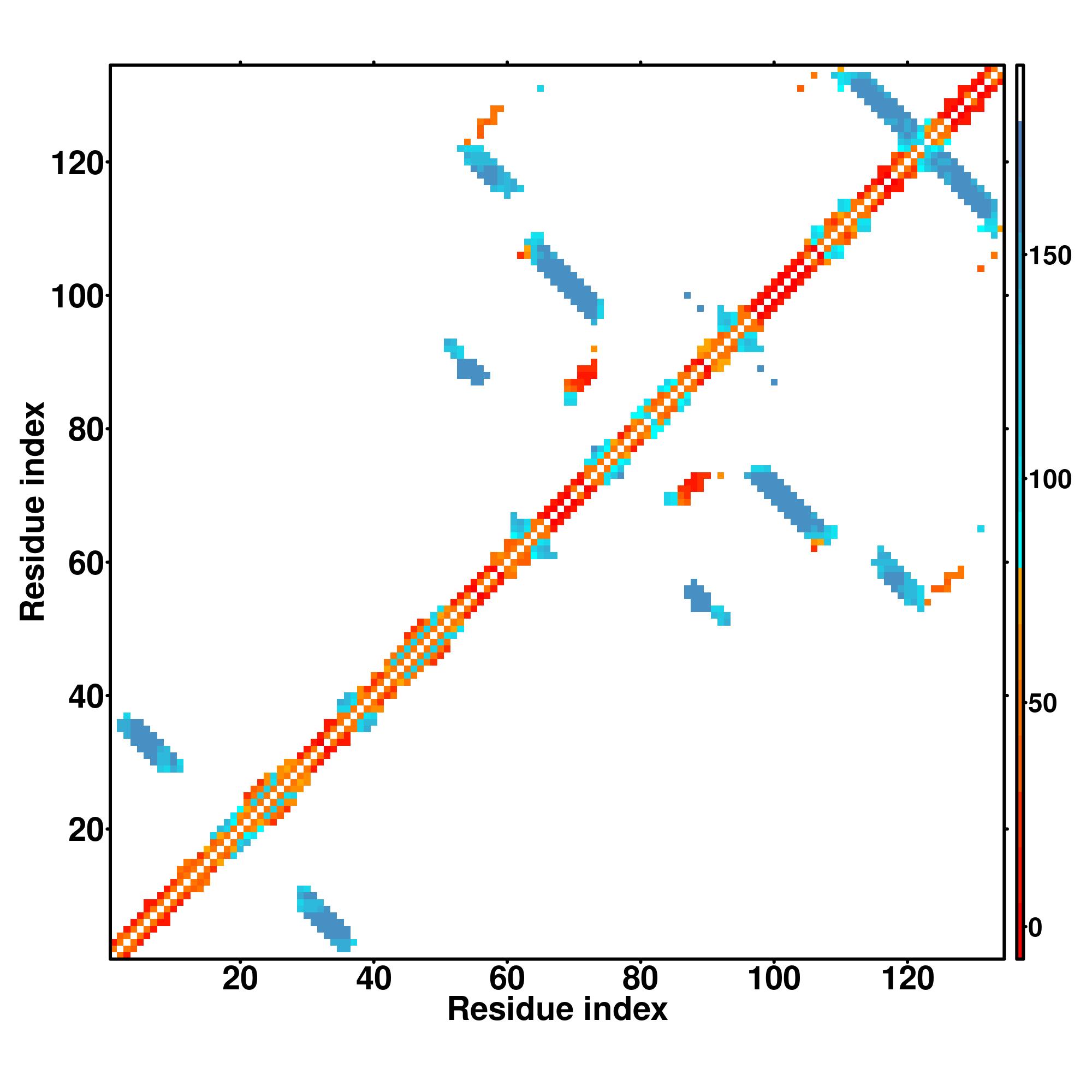

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100                 120

                   |                   |                   |                   |                   |                   |

SS
Seq

CCCCCSSSSSCCCCCCCCCCCCHHHCCCCCSSSSSCCCCHHHHHHHHHHHCCSSSSSCCCCCCCSSSSSSSSCCCCCSCCCCCCCCCSCCCCCCCCSSSSSSSSSSCCCCCCCCSSSSSSCCCCSSSSSSSSSC
EPRGQQEVLQDQPLSQGARGEGATQLAPQRVRVTLRPGEPQQLQVRFLRAESTVTLEHSSLPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRALGFSEELIVELHTL

3vi3B

0.25

0.19

6.03

1.00

DEthreader

-------------------NPRGSKDIKKNK-------KLKPIADYPITLSSEVILENGKLSEGVTISYKSYCKNGVNGT-GENG-RKCSNISIGDEVQFEISITSNKCPKDSDSFKIRPLGFTEEVEVILQYI

6bxbA4

0.29

0.28

8.41

2.13

SPARKS-K

--VSEARVLEDRPLSDKGDSSQVTQVSPQRIALRLRPDDSKNFSIQVRQVESKVELEVRDLPEELSLSFNATCLNNEVIPG----LKSCMGLKIGDTVSFSIEAKVRGCPQEKKSFTIKPVGFKDSLIVQVTFD

4g1eB

0.27

0.26

8.02

0.84

MapAlign

SPVSEARVLEDRPLSGSGDSSQVTQVSPQRIALRLRPDDSKLIVDAYGKIRSKVELEVRDLPEELSLSFNATCLNNEV----IPGLKSCMGLKIGDTVSFSIEAKVRGCPEKEKSFTIKPVGFKDSLIVQVTFD

3vi3B1

0.33

9.85

1.00

CEthreader

NPRGSKDIKKNKNVTNRSKPEDIHQIQPQQLVLRLRSGEPQTFTLKFKRAESEVILENGKLSEGVTISYKSYCKNGVNGT--GENGRKCSNISIGDEVQFEISITSNKCPKKSDSFKIRPLGFTEEVEVILQYI

3v4pB

0.65

18.53

1.58

MUSTER

QSAANIQPIFAVTSAALPVYQELSKLIPKSAVGELSEDVVQLIMDAYNSLSSTVTLEHSSLPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRALGFSEELIVELHTL

4um8B1

0.24

0.23

7.22

3.28

HHsearch

NPVSQVEILKNKPLSVGRQSSDIVQIAPQSLILKLRDNILQLIISAYEELRSEVELEVLGDTEGLNLSFTAICNNGTLF----QHQKKCSHMKVGDTASFSVTVNIPHCERRSRHIIIKPVGLGDALELLVSPE

3v4pB1

0.92

0.91

25.57

1.84

FFAS-3D

--RGQQEVLQDQPLSQGARGEGATQLAPQRVRVTLRPGEPQLIMDAYNSLSSTVTLEHSSLPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRALGFSEELIVELHTL

6djpB

0.13

4.38

1.05

EigenThreader

SRDFRLGFGSYVDKTVSPYISIMPPHGYIHVLSLTENITEFEKAVHRQKLISEVKVQVENQVQGIYFNITAICPDGSR------KMEGCRNVTSNDEVLFNVTVTMKKCDVTGGYAIIKPIGFNETAKIHIHRN

3v4pB

0.77

0.65

18.37

2.81

CNFpred

---------------------ELSKLIPKSAVGELSSNVVQLIMDAYNSLSSTVTLEHSSLPPGVHISYESQCEGPEKREGKAEDRGQCNHVRINQTVTFWVSLQATHCLPEPHLLRLRALGFSEELIVELHTL

3vi3B1

0.26

0.20

6.22

1.00

DEthreader

-------------------NPRGSKDIKKNK-------KLKPEIHRAED--SEVILENGKLSEGVTISYKSYCKNGVNGT-GENG-RKCSNISIGDEVQFEISITSNKCPKDSDSFKIRPLGFTEEVEVILQYI

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.7965

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	3v4pB	0.91	1.68	0.985	0.985	model1_3v4pB.pdb.gz
2	6bxbA	0.90	1.44	0.269	0.970	model1_6bxbA.pdb.gz
3	4um8B	0.90	1.46	0.277	0.970	model1_4um8B.pdb.gz
4	3vi3B	0.90	1.74	0.326	0.985	model1_3vi3B.pdb.gz
5	3fcsB	0.89	1.36	0.273	0.955	model1_3fcsB.pdb.gz
6	3k6sB1	0.81	2.00	0.355	0.925	model1_3k6sB1.pdb.gz
7	1olzA	0.48	3.83	0.048	0.672	model1_1olzA.pdb.gz
8	4es8A	0.47	4.54	0.103	0.791	model1_4es8A.pdb.gz
9	2x5jO	0.36	3.93	0.034	0.537	model1_2x5jO.pdb.gz
10	1opdA	0.36	3.43	0.116	0.500	model1_1opdA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0050839	0.57	cell adhesion molecule binding
GO:0046983	0.57	protein dimerization activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.97	single-organism process
GO:0044763	0.95	single-organism cellular process
GO:0050794	0.82	regulation of cellular process
GO:0051179	0.73	localization
GO:1902578	0.72	single-organism localization
GO:0016043	0.69	cellular component organization
GO:0050896	0.63	response to stimulus
GO:0007155	0.63	cell adhesion
GO:0007229	0.62	integrin-mediated signaling pathway
GO:0044765	0.59	single-organism transport
GO:0016192	0.59	vesicle-mediated transport
GO:0071704	0.58	organic substance metabolic process
GO:0071495	0.58	cellular response to endogenous stimulus
GO:0071310	0.58	cellular response to organic substance
GO:0048518	0.58	positive regulation of biological process
GO:0044710	0.58	single-organism metabolic process
GO:0071402	0.57	cellular response to lipoprotein particle stimulus
GO:0055098	0.57	response to low-density lipoprotein particle
GO:0043170	0.57	macromolecule metabolic process
GO:0007160	0.57	cell-matrix adhesion
GO:0006898	0.57	receptor-mediated endocytosis
GO:0098609	0.55	cell-cell adhesion
GO:0098602	0.55	single organism cell adhesion
GO:0048522	0.55	positive regulation of cellular process
GO:0060255	0.54	regulation of macromolecule metabolic process
GO:0048869	0.54	cellular developmental process
GO:0032879	0.54	regulation of localization
GO:0032502	0.54	developmental process
GO:0016337	0.54	single organismal cell-cell adhesion
GO:0044767	0.53	single-organism developmental process
GO:0051128	0.51	regulation of cellular component organization
GO:0044237	0.50	cellular metabolic process
GO:0034113	0.50	heterotypic cell-cell adhesion

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.92	cell part
GO:0016020	0.91	membrane
GO:0044425	0.79	membrane part
GO:0044459	0.76	plasma membrane part
GO:0043226	0.65	organelle
GO:0005886	0.63	plasma membrane
GO:0044421	0.57	extracellular region part
GO:0043227	0.57	membrane-bounded organelle
GO:0044424	0.56	intracellular part
GO:0031988	0.56	membrane-bounded vesicle
GO:0070062	0.52	extracellular exosome
GO:0043234	0.50	protein complex

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.066	2vn6A	0.586	3.44	0.068	0.821	3.2.1.4	54
2	0.066	2wwmD	0.495	3.01	0.122	0.627	2.7.11.1	99
3	0.066	2nqdA	0.543	2.93	0.125	0.702	3.4.22.15	57
4	0.066	2bk8A	0.505	2.93	0.069	0.642	2.7.11.1	NA
5	0.066	1u2hA	0.491	3.33	0.090	0.649	2.7.11.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
	1	0.05	2vdoB	0.878	1.40	0.278	0.940	0.39	III	complex1.pdb.gz	49,50,51,123
	2	0.03	1toxB	0.649	3.40	0.080	0.881	0.18	NAD	complex2.pdb.gz	53,54,55,75

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
