D-I-TASSER P23560-D2

D-I-TASSER results for P23560-D2

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>P23560 (110 residues)
LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCR
GIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIKRGR

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIKRGR
Prediction	CCCCCCSSSSSSCCCCCSSSSCCCCSSSSSSSSSCCCCCSSSSSSSSSSCCCCCCCCCCCCCSCCCCSSSSCCCCSSSSSSSSCCCCSSSSSSSSSCCSSSSSSSSCCCC
Confidence	95345501688636774246279978999878863997178999996406999889998755165513452154105666685489736789999766279999841489
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIKRGR
Prediction	74314343421446444414435444141245153774312110232414547457431213164314141454442030113456542213203041201010345668
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

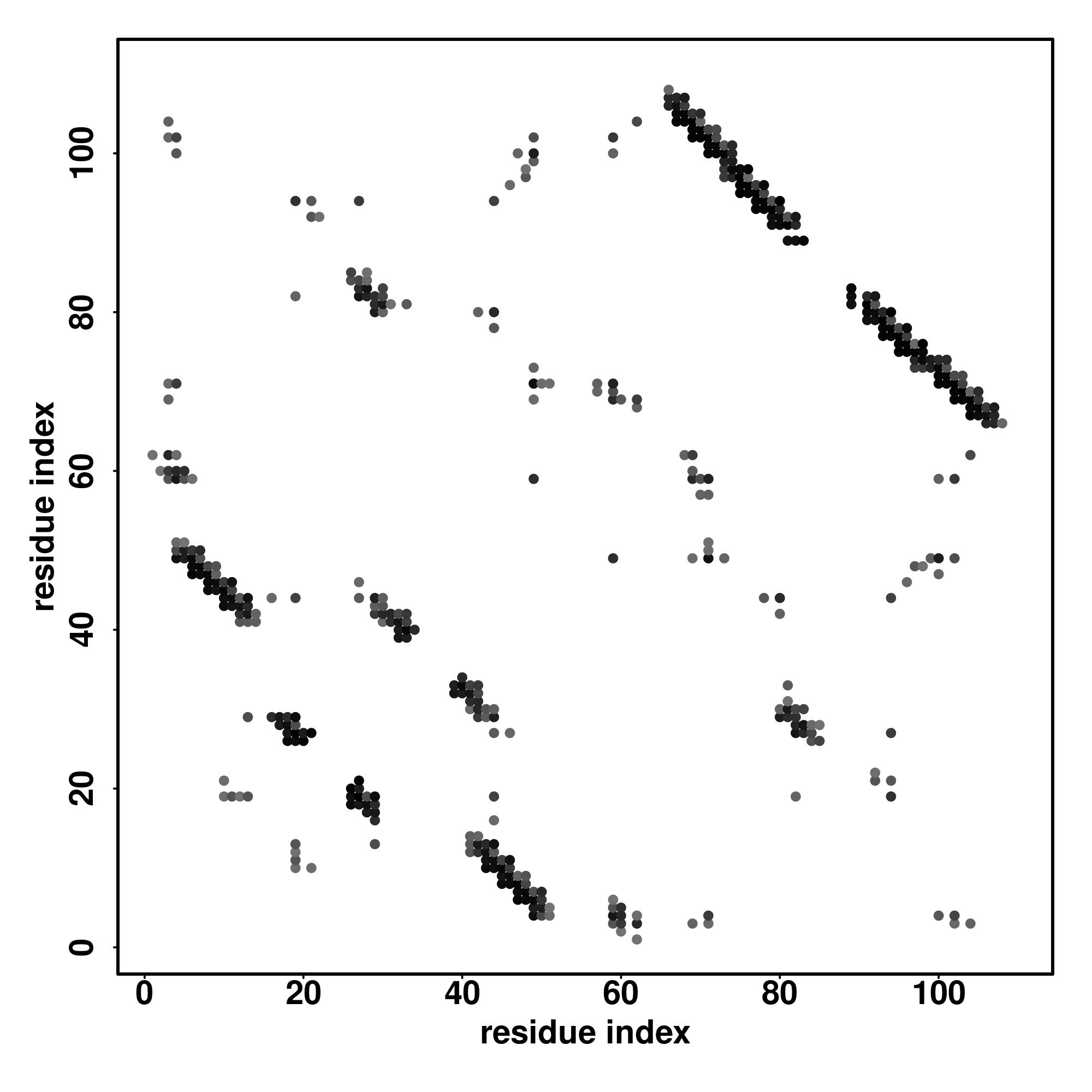

Contact Map

Distance Map

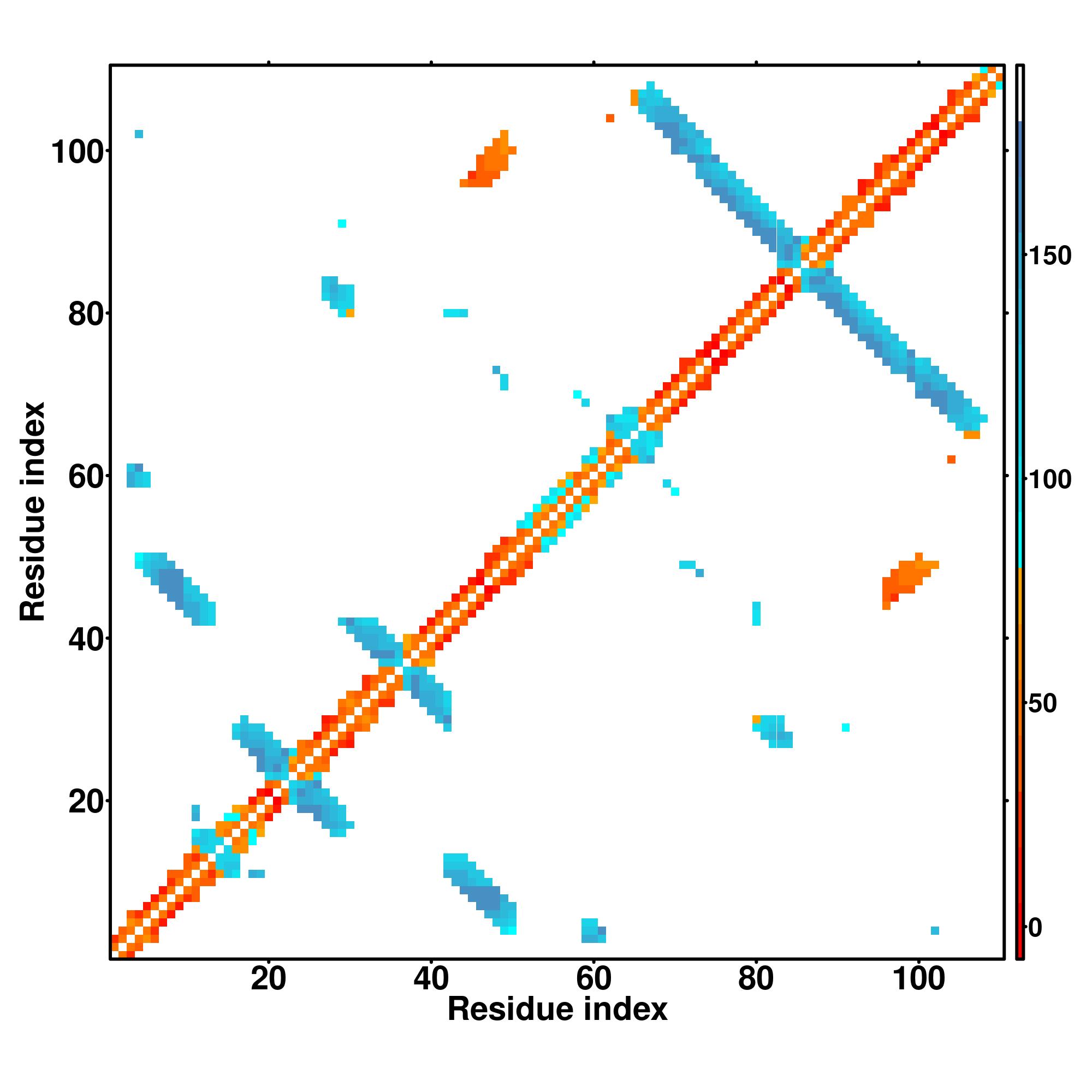

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCCCCSSSSSSCCCCCSSSSCCCCSSSSSSSSSCCCCCSSSSSSSSSSCCCCCCCCCCCCCSCCCCSSSSCCCCSSSSSSSSCCCCSSSSSSSSSCCSSSSSSSSCCCC
LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIKRGR

4ec7A

0.47

0.39

11.39

1.00

DEthreader

EHSCDSVSAWVT---KTTATDIKGNTVTVMENVNLDNKVYKEYFFETKCNPNPEPSGCR-------GIDSCTETDTFIKALTME-GNQASWRFIRIETACVCV-------

4ec7A

0.53

0.51

14.71

2.77

SPARKS-K

HSVCDSVSAWVT---KTTATDIKGNTVTVMENVNLDNKVYKEYFFETKCKNPNPEPSGCRGIDSSHWNSYCTETDTFIKALTMEGN-QASWRFIRIETACVCVITKKKGN

1bndA

1.00

0.97

27.24

1.24

MapAlign

LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIK---

1bndA

1.00

0.97

27.24

1.43

CEthreader

LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIK---

1bndA

1.00

0.97

27.24

2.98

MUSTER

LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIK---

4ec7A

0.53

0.51

14.71

4.13

HHsearch

HSVCDSVSAWVT---KTTATDIKGNTVTVMENVNLDNKVYKEYFFETKCKNPNPEPSGCRGIDSSHWNSYCTETDTFIKALTMEG-NQASWRFIRIETACVCVITKKKGN

1bndA

1.00

0.97

27.24

1.98

FFAS-3D

LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIK---

1bndA

1.00

0.97

27.24

1.08

EigenThreader

LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIK---

1b8mA

1.00

0.97

27.24

2.81

CNFpred

LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNPMGYTKEGCRGIDKRHWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTLTIK---

1bndA

0.95

0.85

23.97

1.00

DEthreader

LSVCDSISEWVTAADKKTAVDMSGGTVTVLEKVPVSKGQLKQYFYETKCNP----KEGCR-GIDKRWNSQCRTTQSYVRALTMDSKKRIGWRFIRIDTSCVCTL------

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.8126

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	1bndA	0.95	0.56	1.000	0.973	model1_1bndA.pdb.gz
2	1hcfA	0.91	1.26	0.557	0.964	model1_1hcfA.pdb.gz
3	4ec7A	0.89	1.60	0.528	0.964	model1_4ec7A.pdb.gz
4	3bukA	0.87	1.80	0.590	0.955	model1_3bukA.pdb.gz
5	2ifgF	0.86	0.91	0.596	0.900	model1_2ifgF.pdb.gz
6	1aocA	0.63	2.79	0.178	0.809	model1_1aocA.pdb.gz
7	2b0uA	0.52	3.32	0.143	0.736	model1_2b0uA.pdb.gz
8	3hh2A	0.52	3.32	0.110	0.727	model1_3hh2A.pdb.gz
9	3bmpA	0.52	3.14	0.160	0.718	model1_3bmpA.pdb.gz
10	1m4uL	0.52	3.54	0.107	0.727	model1_1m4uL.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0005102	0.71	receptor binding
GO:0008083	0.69	growth factor activity
GO:0005126	0.68	cytokine receptor binding
GO:0005165	0.67	neurotrophin receptor binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.94	single-organism process
GO:0009987	0.94	cellular process
GO:0065007	0.93	biological regulation
GO:0044763	0.93	single-organism cellular process
GO:0032502	0.93	developmental process
GO:0050794	0.92	regulation of cellular process
GO:0044767	0.91	single-organism developmental process
GO:0048869	0.89	cellular developmental process
GO:0048523	0.89	negative regulation of cellular process
GO:0051239	0.88	regulation of multicellular organismal process
GO:0043069	0.88	negative regulation of programmed cell death
GO:0007165	0.88	signal transduction
GO:0045664	0.87	regulation of neuron differentiation
GO:0043524	0.87	negative regulation of neuron apoptotic process
GO:0007166	0.87	cell surface receptor signaling pathway
GO:0007169	0.86	transmembrane receptor protein tyrosine kinase signaling pathway
GO:0016043	0.85	cellular component organization
GO:0007154	0.83	cell communication
GO:0030030	0.82	cell projection organization
GO:0007267	0.81	cell-cell signaling
GO:0048812	0.80	neuron projection morphogenesis

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0044424	0.99	intracellular part
GO:0043231	0.96	intracellular membrane-bounded organelle
GO:0044444	0.94	cytoplasmic part
GO:0005576	0.92	extracellular region
GO:0016023	0.90	cytoplasmic, membrane-bounded vesicle

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1jv3A	0.423	4.40	0.042	0.709	2.7.7.23	NA
2	0.060	2ckjA	0.386	4.98	0.050	0.754	1.17.1.4 1.17.3.2	NA
3	0.060	2hcsA	0.313	5.37	0.111	0.645	2.7.7.48 3.4.21.91	NA
4	0.060	1yfeA	0.401	4.86	0.040	0.736	4.2.1.2	NA
5	0.060	1sgfB	0.866	2.18	0.551	0.964	3.4.21.35	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
	1	0.89	1bnd1	0.954	0.56	1.000	0.973	1.97	III	complex1.pdb.gz	1,3,10,22,35,40,41,43,45,60,61,62,63,65,67,76,77,79,93,98,99,102,103,104,105,106

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
