D-I-TASSER P06340-D1

D-I-TASSER results for P06340-D1

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>P06340 (109 residues)
MALRAGLVLGFHTLMTLLSPQEAGATKADHMGSYGPAFYQSYGASGQFTHEFDEEQLFSV
DLKKSEAVWRLPEFGDFARFDPQGGLAGIAAIKAHLDILVERSNRSRAI

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| MALRAGLVLGFHTLMTLLSPQEAGATKADHMGSYGPAFYQSYGASGQFTHEFDEEQLFSVDLKKSEAVWRLPEFGDFARFDPQGGLAGIAAIKAHLDILVERSNRSRAI
Prediction	CCCCHHHHHHHHHHHHHHCCCCCCCSSCSSSSSSCCSSSSSCCCCCCCSSSCCCCSSSSSSCCCCCSSSSCCCCCCCCCCCCHHHHHHHHHHHHHHHHHHHHCCCCCCC
Confidence	9853338999999999852235653241145542103787349987610422798489985123834786764355556583043678999998799998531788789
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| MALRAGLVLGFHTLMTLLSPQEAGATKADHMGSYGPAFYQSYGASGQFTHEFDEEQLFSVDLKKSEAVWRLPEFGDFARFDPQGGLAGIAAIKAHLDILVERSNRSRAI
Prediction	7444312031333111012344364143423233134211334444312242364320212165553213133136244131331244033034204100433443447
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

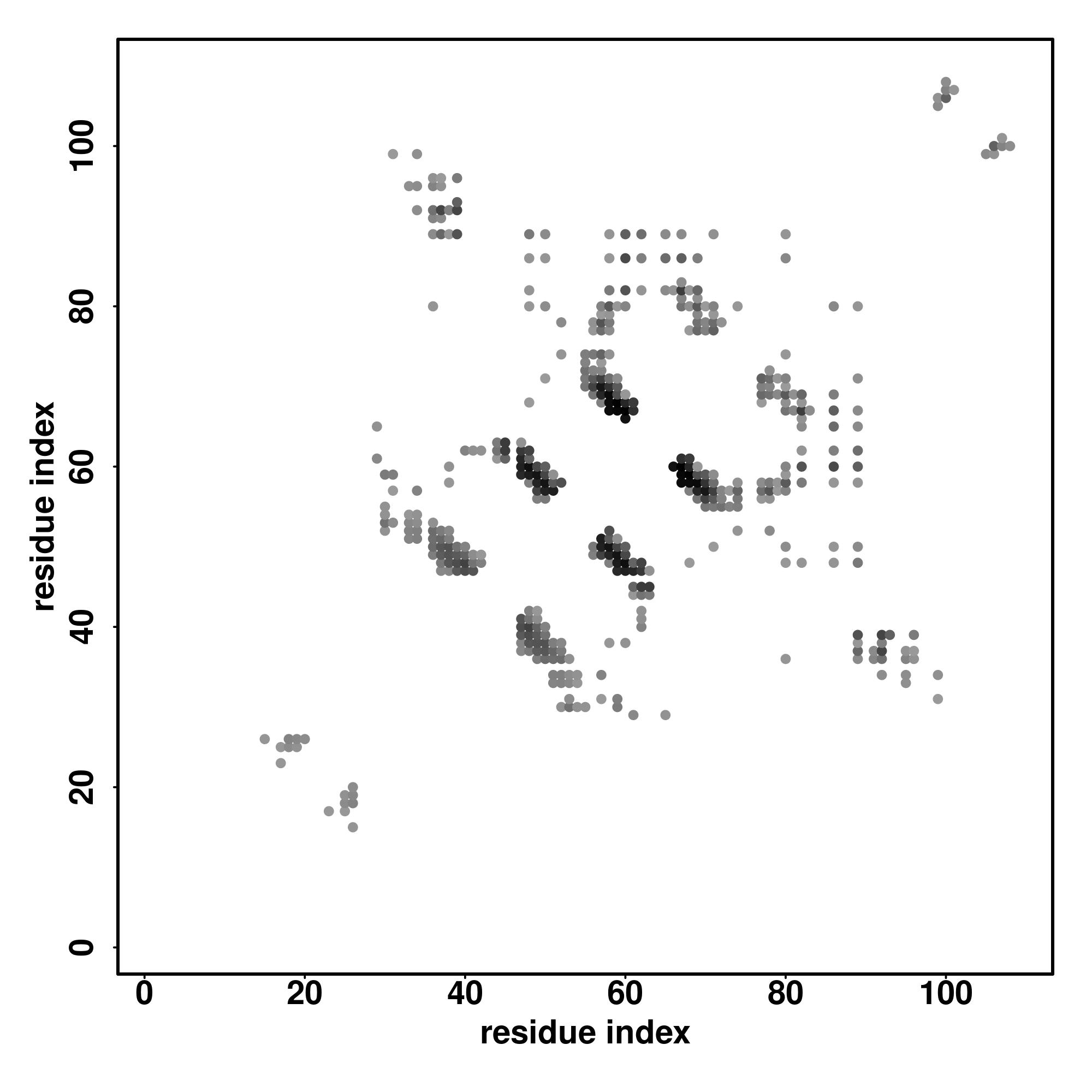

Contact Map

Distance Map

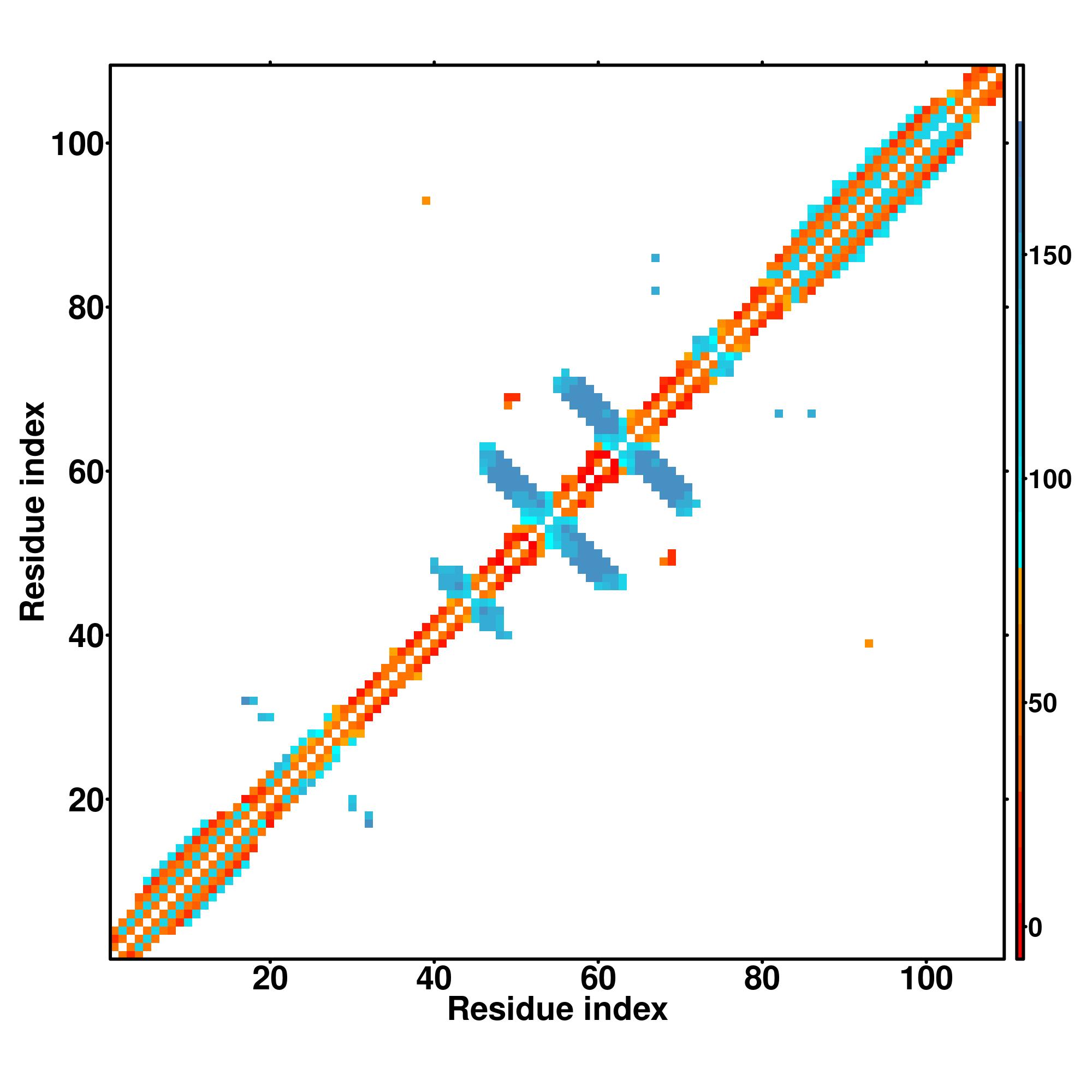

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCCHHHHHHHHHHHHHHCCCCCCCSSCSSSSSSCCSSSSSCCCCCCCSSSCCCCSSSSSSCCCCCSSSSCCCCCCCCCCCCHHHHHHHHHHHHHHHHHHHHCCCCCCC
MALRAGLVLGFHTLMTLLSPQEAGATKADHMGSYGPAFYQSYGASGQFTHEFDEEQLFSVDLKKSEAVWRLPEFGDFARFDPQGGLAGIAAIKAHLDILVERSNRSRAI

1d9kC1

0.56

0.42

12.15

3.15

SPARKS-K

-------------------------IEADHVGSYGITVYQSPGDIGQYTFEFDGDELFYVDLDKKETVWMLPEFAQLRRFEPQGGLQNIATGKHNLEILTKRSNSTP--

1d9kC1

0.56

0.42

12.15

2.47

MUSTER

-------------------------IEADHVGSYGITVYQSPGDIGQYTFEFDGDELFYVDLDKKETVWMLPEFAQLRRFEPQGGLQNIATGKHNLEILTKRSNSTP--

1d9kC1

0.56

0.42

12.15

3.60

HHsearch

-------------------------IEADHVGSYGITVYQSPGDIGQYTFEFDGDELFYVDLDKKETVWMLPEFAQLRRFEPQGGLQNIATGKHNLEILTKRSNSTP--

1d9kC1

0.56

0.42

12.15

1.91

FFAS-3D

-------------------------IEADHVGSYGITVYQSPGDIGQYTFEFDGDELFYVDLDKKETVWMLPEFAQLRRFEPQGGLQNIATGKHNLEILTKRSNSTP--

6kyuA1

0.05

2.10

1.00

DEthreader

EP-HSYVDGHL--ID--HY-DSETQRAEFDWQLM--YGCDLLEDSTRGFRQYGYFVAFDKD----TLTFTAAAQITKWEEGAERWKFYLNTCIEGLRKYVSYGKDV---

1ymmA1

0.46

0.34

9.90

2.97

SPARKS-K

--------------------------KEEHV-IIQAEFYLNPDQSGEFMFDFDGDEIFHVDMAKKETVWRLEEFGRFASFEAQGALANIAVDKANLEIMTKRSNYTP--

3fvhA1

0.12

0.11

3.93

0.61

MapAlign

DCHLSDMLQQLHSVNAREGDELARLPYLRTWFRTRSAIILHL-SNGSVQIFFQDHTKLILCPLMAAVTYIDEKR-DFRTYRLSLLLRYARTMVDKLLSSRSASNRL---

1a6zA1

0.10

3.72

0.46

CEthreader

LQLSQSLKGWDHMFTVDFWTIMENHNHSKESHTLQVILGCEMQEEGYWKYGYDGQDHLEFCPDTLDWRAAEPRAWPTKKIRARQNRAYLEDCPAQLQQLLELGRGVLDQ

1ymmA1

0.46

0.34

9.90

2.35

MUSTER

--------------------------KEEHV-IIQAEFYLNPDQSGEFMFDFDGDEIFHVDMAKKETVWRLEEFGRFASFEAQGALANIAVDKANLEIMTKRSNYTP--

1ymmA1

0.46

0.34

9.90

3.53

HHsearch

--------------------------KEEHVI-IQAEFYLNPDQSGEFMFDFDGDEIFHVDMAKKETVWRLEEFGRFASFEAQGALANIAVDKANLEIMTKRSNYTP--

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.5191

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	1d9kC	0.74	0.90	0.560	0.771	model1_1d9kC.pdb.gz
2	1uvqA	0.71	1.42	0.482	0.780	model1_1uvqA.pdb.gz
3	3lqzA	0.69	1.54	0.470	0.761	model1_3lqzA.pdb.gz
4	1ymmA	0.69	1.36	0.439	0.743	model1_1ymmA.pdb.gz
5	3usaC	0.66	1.71	0.902	0.752	model1_3usaC.pdb.gz
6	1c16A	0.57	2.60	0.150	0.734	model1_1c16A.pdb.gz
7	1exuA	0.56	3.41	0.093	0.826	model1_1exuA.pdb.gz
8	2bc4C	0.55	2.79	0.217	0.743	model1_2bc4C.pdb.gz
9	1i3rB	0.55	3.47	0.056	0.798	model1_1i3rB.pdb.gz
10	1cicD	0.36	3.96	0.047	0.569	model1_1cicD.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0003823	0.92	antigen binding
GO:0004872	0.64	receptor activity
GO:0038023	0.60	signaling receptor activity
GO:0042605	0.57	peptide antigen binding
GO:0004888	0.54	transmembrane signaling receptor activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0002682	1.00	regulation of immune system process
GO:0002376	0.96	immune system process
GO:0019886	0.95	antigen processing and presentation of exogenous peptide antigen via MHC class II
GO:0050794	0.94	regulation of cellular process
GO:0050863	0.90	regulation of T cell activation
GO:0051239	0.72	regulation of multicellular organismal process
GO:0048518	0.66	positive regulation of biological process
GO:0045580	0.66	regulation of T cell differentiation
GO:0048522	0.65	positive regulation of cellular process
GO:0050870	0.62	positive regulation of T cell activation

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044459	1.00	plasma membrane part
GO:0042613	0.96	MHC class II protein complex
GO:0016020	0.88	membrane
GO:0005886	0.83	plasma membrane
GO:0044424	0.82	intracellular part
GO:0044444	0.81	cytoplasmic part
GO:0043227	0.52	membrane-bounded organelle
GO:0005764	0.51	lysosome

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1ffuB	0.475	4.57	0.061	0.835	1.2.99.2	NA
2	0.060	2h31A	0.469	3.52	0.093	0.661	4.1.1.21 6.3.2.6	91,99
3	0.060	7reqD	0.477	4.68	0.048	0.908	5.4.99.2	49
4	0.060	3iw0A	0.467	4.39	0.069	0.862	1.14.-.-	NA
5	0.060	1kutB	0.473	3.42	0.075	0.661	6.3.2.6	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.76	1f3jA	0.730	1.07	0.571	0.771	0.97	III	complex1.pdb.gz	34,50,57,78,79,80,88,91,92,94,95,102
2	0.72	1mujA	0.727	1.36	0.553	0.780	0.92	III	complex2.pdb.gz	34,48,50,69,76,77,78,79,80,84,87,88,91,94,95,98,99,102
3	0.53	2q6wD	0.700	1.08	0.444	0.743	1.02	III	complex3.pdb.gz	35,37,48,50,57,58,79,80,88,91,92,95,98,99
4	0.51	2fseC	0.686	1.16	0.450	0.734	1.09	III	complex4.pdb.gz	34,69,78,79,80,84,88,95,98
5	0.47	1d5xA	0.690	1.27	0.444	0.743	1.32	III	complex5.pdb.gz	34,37,57,58,79,80,88,91
6	0.43	3pgdA	0.689	1.11	0.450	0.734	1.04	III	complex6.pdb.gz	34,79,80,81,84,85,88,91,95,98,99,102
7	0.26	1uvqA	0.706	1.42	0.482	0.780	0.89	III	complex7.pdb.gz	34,48,50,57,78,79,80,88,91,94,95,98,100,101,102
8	0.25	1r5wA	0.681	1.52	0.432	0.743	1.68	III	complex8.pdb.gz	62,63,65,81,83,84
9	0.24	1d5z0	0.700	1.08	0.444	0.743	1.33	III	complex9.pdb.gz	39,44,62,63,64,65,83,86,87,89,90,93,94,97
10	0.08	1j8h5	0.707	1.18	0.451	0.752	1.27	III	complex10.pdb.gz	83,86,87,88,90,91,93

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]
