D-I-TASSER P01857-D1

D-I-TASSER results for P01857-D1

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>P01857 (111 residues)
ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSS
GLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTCPP

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTCPP
Prediction	CCCCCCSSSSSCCCCCCCCCCSSSSSSSSCCCSCCCSSSSSCCCCSCCCSSSCCCCSCCCCSSSSSSSSSSCHHHCCCCCSSSSSSSCCCCSSSSSSSCCCCCCCCCCCCC
Confidence	988298588429996336899499999724650997499982687035678767511589929999999954777499839999995888916899975899999998998
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTCPP
Prediction	866543403103114754774301000013433265140305465455534424434567331212030303465177540303031685655152516477277666668
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

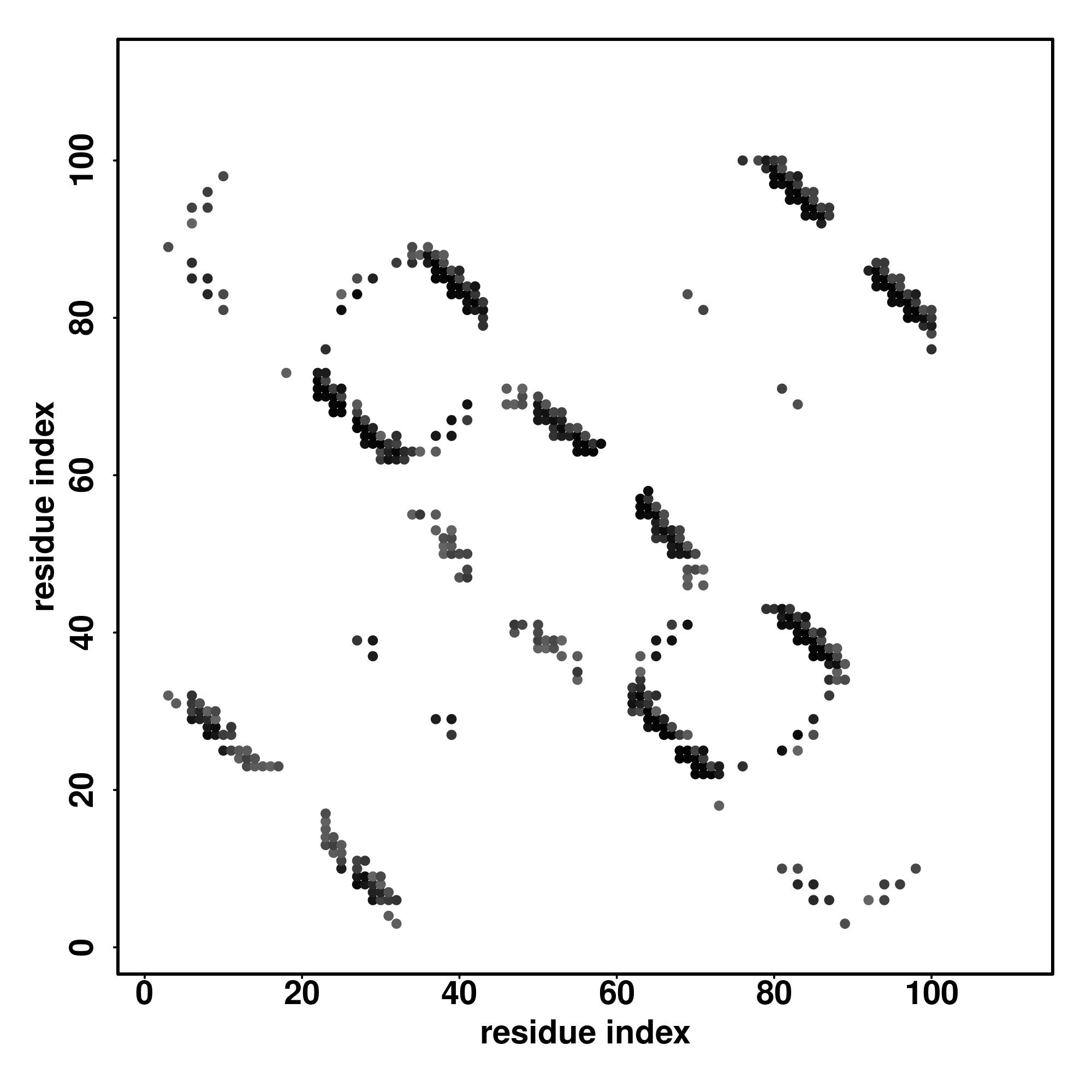

Contact Map

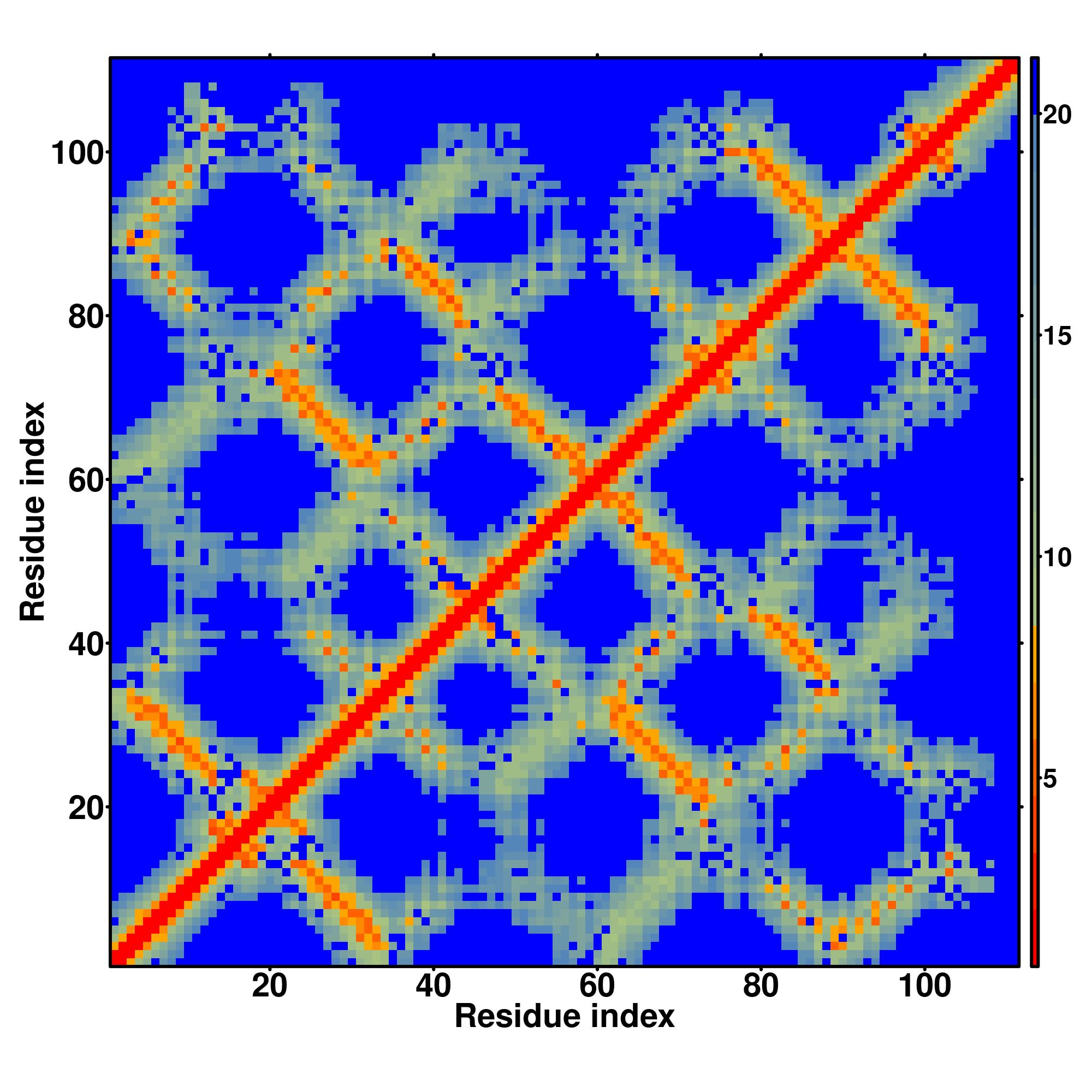

Distance Map

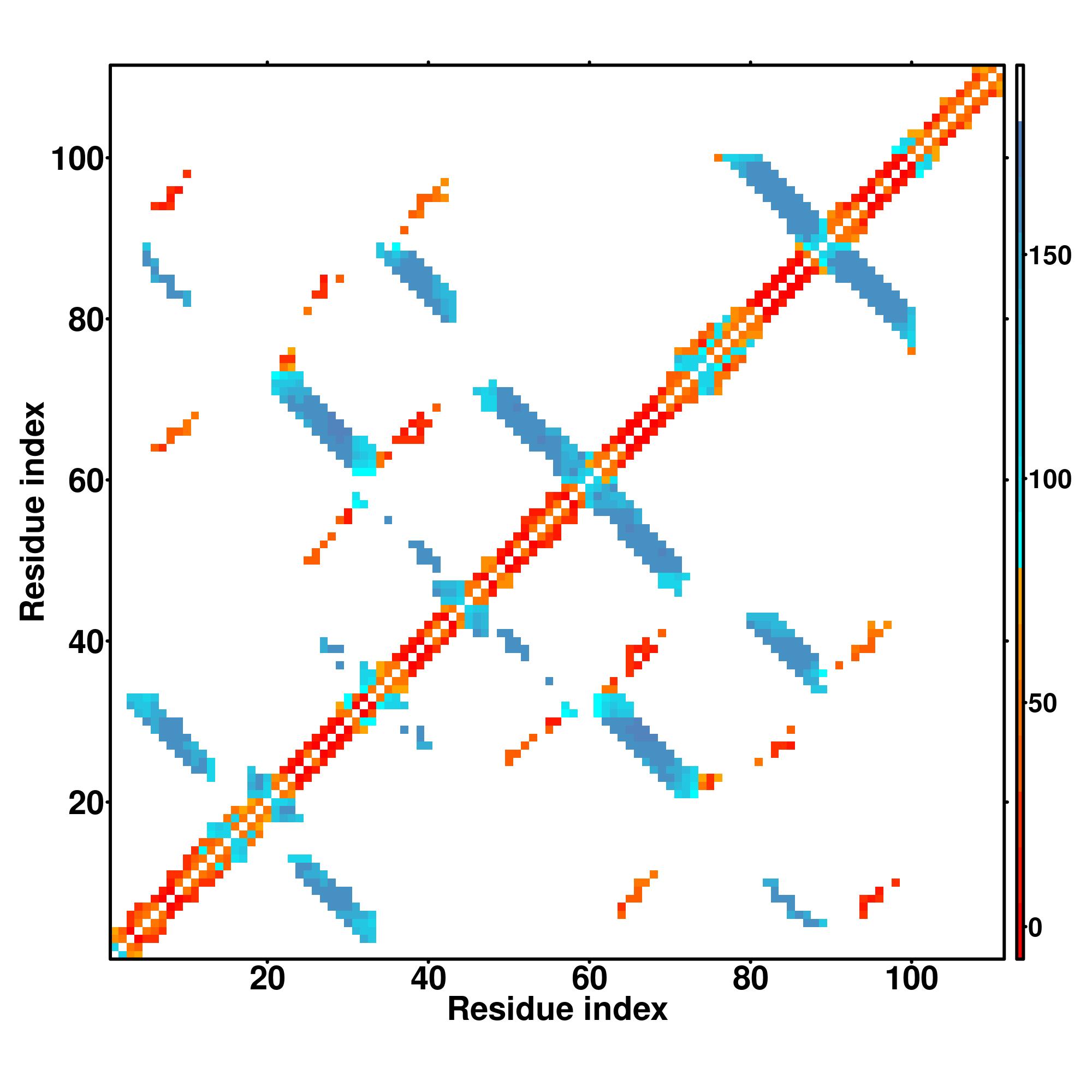

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCCCCSSSSSCCCCCCCCCCSSSSSSSSCCCSCCCSSSSSCCCCSCCCSSSCCCCSCCCCSSSSSSSSSSCHHHCCCCCSSSSSSSCCCCSSSSSSSCCCCCCCCCCCCC
ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTCPP

6hygA

0.28

0.27

8.26

1.33

DEthreader

GQPREPQVYTLPPSREEMTKNQVSLSCAVKGFYPSDIAVEWESNQPENNYKTTPPVLDSDGSFFLVSKLTVDKSRWQGNVFSCSVMHEALNHYTQKSLSL-S---LPPLLS

6utkD2

0.95

0.93

26.03

1.49

SPARKS-K

-STKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKGLEV--

6xqpF

0.23

0.21

6.49

0.45

MapAlign

-NVFPPEVAVFEPSEAEIHTQKATLVCLATGFYPDHVELSWWVNGKEVGVCTDQPLKENDSRYALSSRLRVSATFWPRNHFRCQVQFYGPVQIVSAEAWG-----------

6wl2C2

0.25

0.23

7.25

0.25

CEthreader

RNVTPPKVSLREPSKAEINKQKATLQCQARGFFPDHVELSWWVNGKEVGVSTDPAYKESNYSYSLSSRLRVSATFWHNPHFRCQVQFHGLSQNISAEAWGRAD--------

1hzhH3

0.99

27.76

1.65

MUSTER

ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKAEPKSCDKTHTCPP

1hzhH3

0.99

27.76

0.65

HHsearch

ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKAEPKSCDKTHTCPP

7cjfA2

0.91

0.83

23.29

1.88

FFAS-3D

ASTKGPSVFPLAPCSRSTSESTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTKTYTCNVDHKPSNTKVDKRVESK----------

7jg1A

0.24

7.57

0.43

EigenThreader

VNTFPPQVHLLPPPSEELALELLSLTCLVRAFNPKEVLVRWLHGNEELSYLVFEPLKEGATTYLVTSVLRVSAETWQGDQYSCMVGHEAPMNFTQKTIDRLSGKPTNVSVS

2xtjE

0.98

0.92

25.75

1.99

CNFpred

ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSEF-------

6wm9B

0.94

0.89

25.03

1.33

DEthreader

ASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVE--PKSCDK----

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.8047

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	6wm9B	0.87	1.60	0.971	0.946	model1_6wm9B.pdb.gz
2	6x4tB	0.87	1.11	0.971	0.928	model1_6x4tB.pdb.gz
3	1tjhH2	0.87	1.46	0.990	0.937	model1_1tjhH2.pdb.gz
4	7dpmA	0.86	1.31	0.990	0.928	model1_7dpmA.pdb.gz
5	4rqqH	0.86	1.16	0.980	0.919	model1_4rqqH.pdb.gz
6	4ye4H	0.86	1.08	0.980	0.910	model1_4ye4H.pdb.gz
7	6oo0H	0.86	1.43	0.971	0.928	model1_6oo0H.pdb.gz
8	7jn5H	0.86	1.35	0.922	0.928	model1_7jn5H.pdb.gz
9	7cjfA2	0.86	1.34	0.902	0.919	model1_7cjfA2.pdb.gz
10	6w4wH	0.85	1.13	0.990	0.910	model1_6w4wH.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0034987	0.93	immunoglobulin receptor binding
GO:0003823	0.92	antigen binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0050896	1.00	response to stimulus
GO:0006955	0.99	immune response
GO:0009987	0.93	cellular process
GO:0071704	0.92	organic substance metabolic process
GO:0065007	0.92	biological regulation
GO:0050789	0.92	regulation of biological process
GO:0050794	0.91	regulation of cellular process
GO:0048518	0.91	positive regulation of biological process
GO:0044699	0.91	single-organism process
GO:0002252	0.91	immune effector process
GO:0048522	0.90	positive regulation of cellular process
GO:0044238	0.90	primary metabolic process
GO:0043207	0.90	response to external biotic stimulus
GO:0043170	0.90	macromolecule metabolic process
GO:0006959	0.90	humoral immune response
GO:0050776	0.89	regulation of immune response
GO:0044763	0.89	single-organism cellular process
GO:0002684	0.89	positive regulation of immune system process
GO:0042742	0.88	defense response to bacterium
GO:0006958	0.88	complement activation, classical pathway
GO:0050871	0.87	positive regulation of B cell activation
GO:0007165	0.87	signal transduction
GO:0006911	0.87	phagocytosis, engulfment
GO:0006910	0.87	phagocytosis, recognition
GO:0050853	0.86	B cell receptor signaling pathway
GO:0045087	0.86	innate immune response

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.98	cell part
GO:0044421	0.97	extracellular region part
GO:0043234	0.91	protein complex
GO:0019814	0.90	immunoglobulin complex
GO:0042571	0.88	immunoglobulin complex, circulating
GO:0009897	0.88	external side of plasma membrane
GO:0072562	0.85	blood microparticle
GO:0016020	0.62	membrane
GO:0005886	0.56	plasma membrane

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.077	2wwmD	0.543	3.13	0.100	0.793	2.7.11.1	NA
2	0.067	1u2hA	0.555	3.21	0.077	0.811	2.7.11.1	NA
3	0.067	2gqhA	0.562	3.15	0.054	0.766	2.7.11.1	NA
4	0.066	2bk8A	0.582	2.98	0.144	0.757	2.7.11.1	80,99
5	0.066	2dm7A	0.569	3.29	0.064	0.784	2.7.11.1	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.61	1hzhH	0.847	1.55	0.919	0.928	1.05	UUU	complex1.pdb.gz	9,11,14,24,26,30,31,58,60,62,64
2	0.14	1d5i1	0.834	1.48	0.940	0.901	0.83	III	complex2.pdb.gz	9,10,11,12,15,24,28,51,53,54,56,57,58,70
3	0.12	2j6e0	0.819	1.67	0.307	0.910	1.19	III	complex3.pdb.gz	9,11,14,16,17,20,26,49,53,57,58,59,64,66,68,96
4	0.07	2h3n0	0.790	1.62	0.316	0.883	1.25	III	complex4.pdb.gz	9,11,12,24,26,28,51,53,54,56,58,66,68

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
