D-I-TASSER O75023-D1

D-I-TASSER results for O75023-D1

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>O75023 (119 residues)
MTLTLSVLICLGLSVGPRTCVQAGTLPKPTLWAEPASVIARGKPVTLWCQGPLETEEYRL
DKEGLPWARKRQNPLEPGAKAKFHIPSTVYDSAGRYRCYYETPAGWSEPSDPLELVATG

Predicted Secondary Structure

Sequence	20 40 60 80 100 \| \| \| \| \| MTLTLSVLICLGLSVGPRTCVQAGTLPKPTLWAEPASVIARGKPVTLWCQGPLETEEYRLDKEGLPWARKRQNPLEPGAKAKFHIPSTVYDSAGRYRCYYETPAGWSEPSDPLELVATG
Prediction	CCCHHHHHHHHHHCCCHHHHHSCCCCCCCSSSSSCCCCCCCCCCSSSSSSCCCCCSSSSSSSCCCCCCCSSCCCCCCCCSSSSSSCCCCHHHCSSSSSSSCCCCCCSCCCCCSSSSSSC
Confidence	97178999998722462243101569998799737985579984899997478862999998897453111143466632489836778666948999970799630788866998619
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 100 \| \| \| \| \| MTLTLSVLICLGLSVGPRTCVQAGTLPKPTLWAEPASVIARGKPVTLWCQGPLETEEYRLDKEGLPWARKRQNPLEPGAKAKFHIPSTVYDSAGRYRCYYETPAGWSEPSDPLELVATG
Prediction	74343333323113223333345461431202042434055653010102044623302022254442453554454544440303414572013020214446421442432403348
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

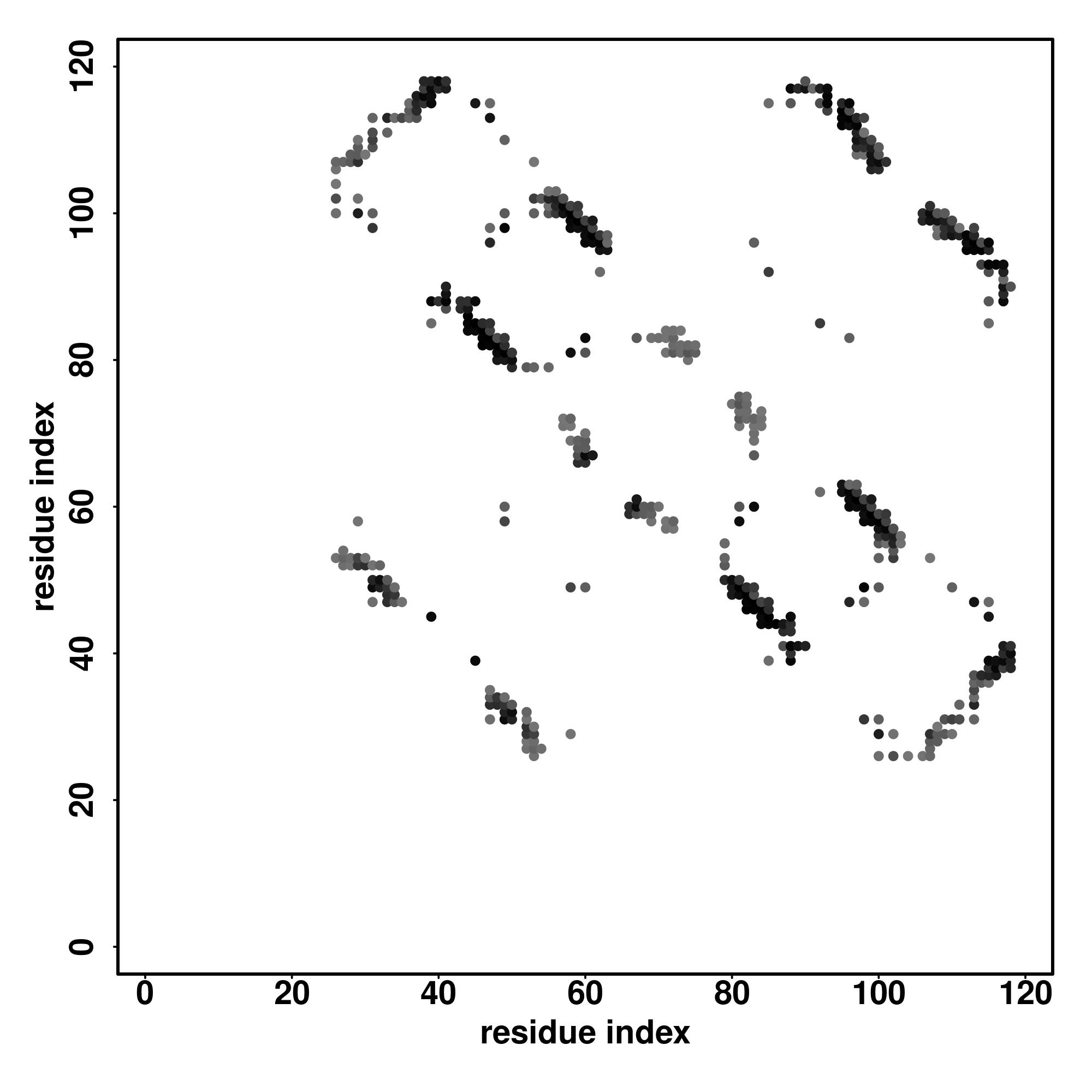

Contact Map

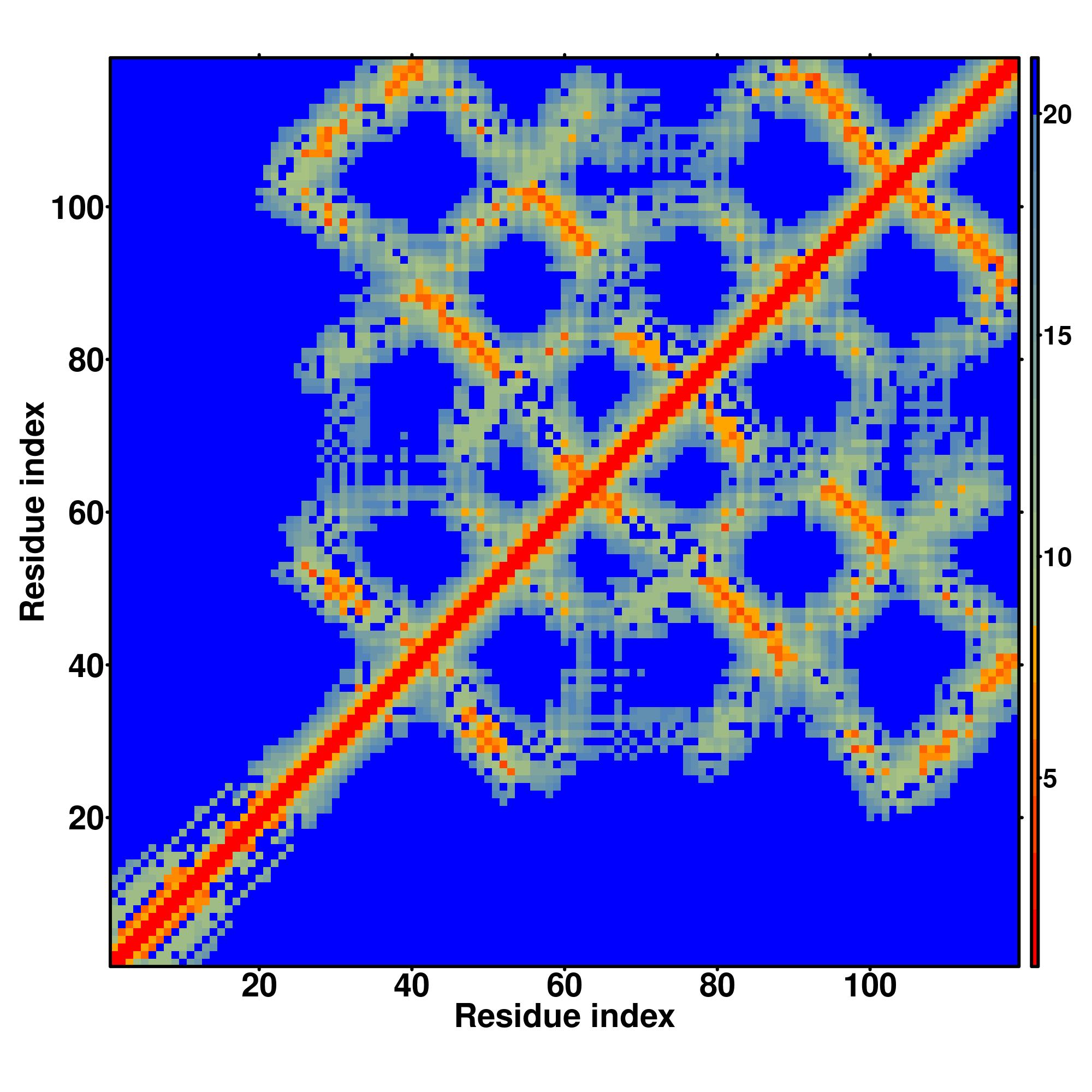

Distance Map

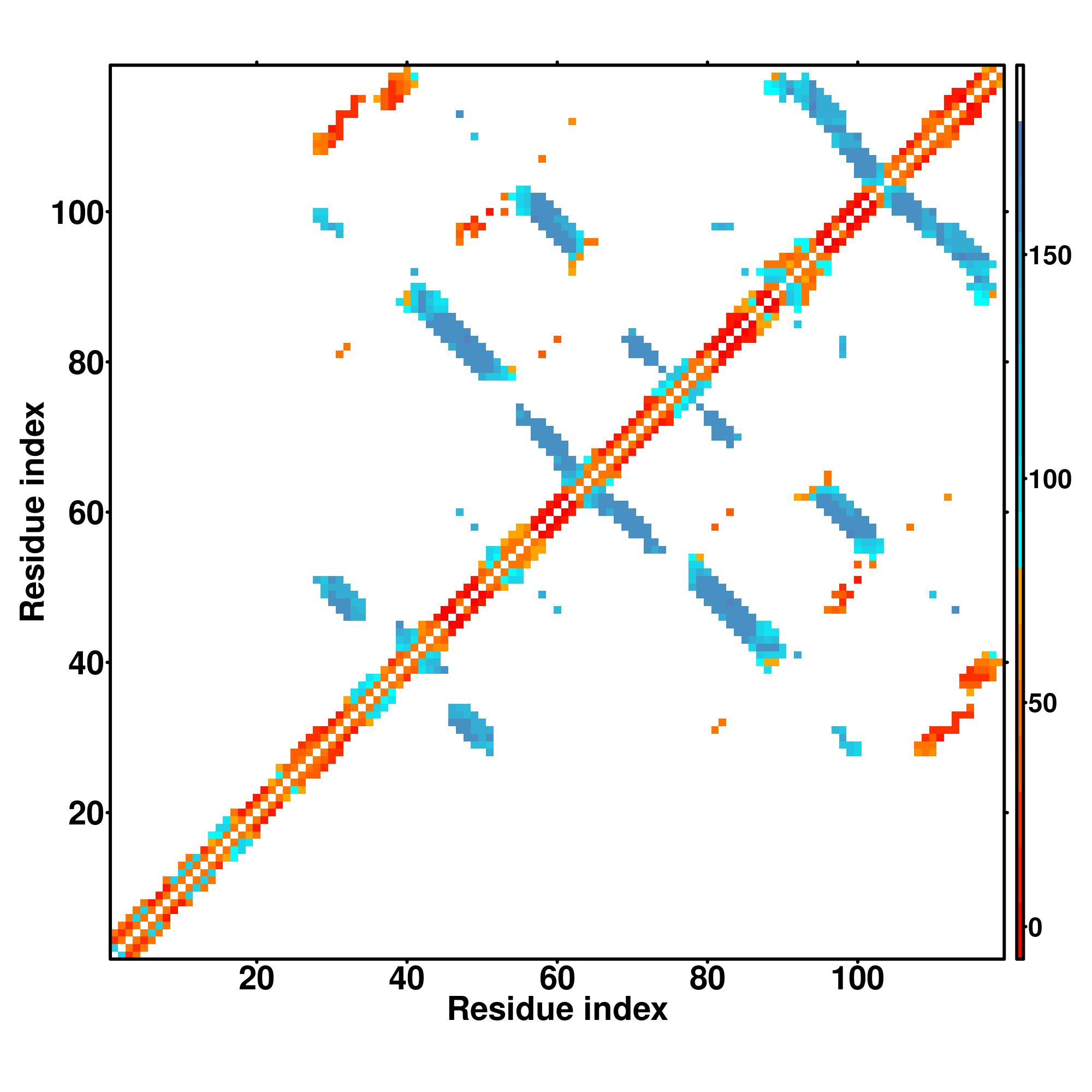

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80                 100

                   |                   |                   |                   |                   |

SS
Seq

CCCHHHHHHHHHHCCCHHHHHSCCCCCCCSSSSSCCCCCCCCCCSSSSSSCCCCCSSSSSSSCCCCCCCSSCCCCCCCCSSSSSSCCCCHHHCSSSSSSSCCCCCCSCCCCCSSSSSSC
MTLTLSVLICLGLSVGPRTCVQAGTLPKPTLWAEPASVIARGKPVTLWCQGPLETEEYRLDKEGLPWARKRQNPLEPGAKAKFHIPSTVYDSAGRYRCYYETPAGWSEPSDPLELVATG

3dmkA

0.19

0.18

5.71

1.17

DEthreader

IIGALAGSII--KI-PPTQTVDRFDPPVIRQAFQ-EETMEPGPSVFLKCVAGGNTPEISWELDGKKIANVGQYVTVGDVVSYLNITSVHANDGGLYKCIAKS-KVGVAEH-SAKLNVYG

6aedA1

0.52

0.40

11.66

1.14

SPARKS-K

------------------------IQPKPTLWAEPDSVITQGSPVTLSCQGSLEAQEYRLYREKKSASWITRIRPELVKNGQFHIPSITWEHTGRYGCQYYSRARWSELSDPLVLV---

5nstB1

0.36

0.30

9.01

1.55

FFAS-3D

-------------------SQRDTDLPRPSISAEPGTVIPLGSHVTFVCRGPVGVQTFRLERERNYLYSDTEDVSPSESEARFRIDSVNAGNAGLFRCIYYKSRKWSEQSDYLELVVKG

2d3vA

0.68

0.54

15.31

1.64

CNFpred

-------------------------LSKATLWAEPGSVISRGNSVTIRCQGTLEAQEYRLVKEGSPEPWDTQNPLEPKNKARFSIPSMTEHHAGRYRCYYYSPAGWSEPSDPLELVVTG

5fcsH

0.09

0.08

3.24

1.17

DEthreader

Y-GGTNKRAPTPARFSITGAQAETVEVQLVQSG--AEVKKPGASVKVSCKASYFSYGISWVRQLEWMGWITMTTDTSTSTAYMELRSLRSDDTAVYYCATIDT-AFDIWGQGTMVTVSS

1p6fA1

0.46

0.35

10.30

1.14

SPARKS-K

------------------------TLPKPFIWAEPHFMVPKEKQVTICCQGNYGAVEYQLHFEGSLFAVDRPKPPERINKVKFYIPDMNSRMAGQYSCIYRVGELWSEPSNLLDLV---

3dmkA

0.15

0.14

4.82

0.50

MapAlign

--CFVRNDRESAEASAELKLGGRFDPPVIRQAF-QEETMEPGPSVFLKCVAGGPTPEISWELDGKKIYQVGQYVTNGDVVSYLNITSVHANDGGLYKCIAKSKVGVA-EH-SAKLNVYG

3vh8G

0.31

9.39

0.39

CEthreader

RGSHPHSPTGWSAPSNPVVIMVTGNHRKPSLLAHPGPLVKSGERVILQCWSDIMFEHFFLHKEGISPSRLVGQIHDGVSKANFSIGPMMLALAGTYRCYGSVPYQLSAPSDPLDIVVTG

3p2tA

0.69

0.55

15.77

1.00

MUSTER

------------------------PLPKPTLWAEPGSVISWGNSVTIWCQGTLEAREYRLDKEESPAPWDRQNPLEPKNKARFSIPSMTEDYAGRYRCYYRSPVGWSQPSDPLELVMTG

6grqA

0.39

0.31

9.18

0.42

HHsearch

------------------------SLPKPILRVQPDSVVSRWTKVTFFCEETIGANEYRLYKDGKLYKTVTK-NKKPANKAEFSLSNVDLSNAGQYECSYSTQYKSSGYSDPLKLVVTG

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.7184

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	7k80G	0.75	2.38	0.303	0.857	model1_7k80G.pdb.gz
2	6grqA	0.74	2.49	0.441	0.866	model1_6grqA.pdb.gz
3	7khfH	0.74	2.86	0.261	0.882	model1_7khfH.pdb.gz
4	3p2tA	0.73	3.03	0.284	0.891	model1_3p2tA.pdb.gz
5	3kgrA	0.73	1.42	0.379	0.798	model1_3kgrA.pdb.gz
6	6aedA	0.73	2.68	0.254	0.866	model1_6aedA.pdb.gz
7	5nstB1	0.73	2.02	0.356	0.815	model1_5nstB1.pdb.gz
8	1b6uA	0.73	2.65	0.282	0.874	model1_1b6uA.pdb.gz
9	1p6fA	0.72	2.49	0.254	0.849	model1_1p6fA.pdb.gz
10	4ll9A	0.71	1.48	0.277	0.790	model1_4ll9A.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0004872	0.78	receptor activity
GO:0004871	0.64	signal transducer activity
GO:0004867	0.64	serine-type endopeptidase inhibitor activity
GO:0038023	0.59	signaling receptor activity
GO:0004888	0.57	transmembrane signaling receptor activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0065007	0.89	biological regulation
GO:0050789	0.89	regulation of biological process
GO:0050896	0.80	response to stimulus
GO:0050794	0.80	regulation of cellular process
GO:0009987	0.70	cellular process
GO:0006950	0.65	response to stress
GO:0048523	0.64	negative regulation of cellular process
GO:0006952	0.64	defense response
GO:0080090	0.63	regulation of primary metabolic process
GO:0060255	0.63	regulation of macromolecule metabolic process
GO:0031323	0.63	regulation of cellular metabolic process
GO:0031324	0.60	negative regulation of cellular metabolic process
GO:0010605	0.60	negative regulation of macromolecule metabolic process
GO:0007165	0.60	signal transduction
GO:0051248	0.58	negative regulation of protein metabolic process
GO:0002682	0.55	regulation of immune system process
GO:0002376	0.54	immune system process
GO:0016043	0.52	cellular component organization
GO:0006461	0.51	protein complex assembly

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	0.92	cell part
GO:0016020	0.80	membrane
GO:0044425	0.79	membrane part
GO:0016021	0.71	integral component of membrane
GO:0005576	0.70	extracellular region
GO:0005886	0.67	plasma membrane
GO:0044459	0.60	plasma membrane part
GO:0044424	0.58	intracellular part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.206	2dm7A	0.584	2.04	0.170	0.698	2.7.11.1	NA
2	0.181	2edwA	0.597	2.19	0.157	0.714	2.7.11.1	49,59,63
3	0.112	1zvyA	0.650	1.83	0.114	0.740	3.2.1.17	NA
4	0.088	2eo1A	0.599	2.66	0.144	0.748	2.7.11.1	46,65,93
5	0.087	2edtA	0.588	2.11	0.182	0.698	2.7.11.1	93

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.06	1kcrL	0.634	2.06	0.126	0.731	0.76	III	complex1.pdb.gz	51,59,61,99,100,107,108
2	0.04	1vdg0	0.676	2.74	0.252	0.832	0.67	III	complex2.pdb.gz	24,26,27,28,30,50,51,52,53,95,111,112,114
3	0.04	2z93D	0.642	2.05	0.136	0.740	0.69	END	complex3.pdb.gz	62,64,98,100,109,111
4	0.04	1wc7A	0.637	2.08	0.125	0.740	0.61	PP3	complex4.pdb.gz	57,58,60,101,105,107
5	0.03	1kb53	0.643	1.98	0.125	0.740	0.61	III	complex5.pdb.gz	51,58,59,60,66
6	0.03	2gsiE	0.646	2.02	0.114	0.740	0.69	III	complex6.pdb.gz	64,94,95,115
7	0.03	2w65D	0.633	2.22	0.114	0.740	0.73	III	complex7.pdb.gz	94,113,115
8	0.02	1ub5L	0.627	2.23	0.102	0.740	0.74	SPB	complex8.pdb.gz	91,92,93,94,118
9	0.02	1dbbL	0.625	2.21	0.101	0.740	0.76	STR	complex9.pdb.gz	43,92,116
10	0.02	1indH	0.639	1.85	0.092	0.731	0.64	EOT	complex10.pdb.gz	24,26,106

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
