D-I-TASSER O60462-D6

D-I-TASSER results for O60462-D6

[Click result.zip to download all results on this page]

Input Sequence in FASTA format

>O60462 (81 residues)
STDKEKSWLYTLDPILITIIAMSSLGVLLGATCAGLLLYCTCSYSGLSSRSCTTLENYNF
ELYDGLKHKVKMNHQKCCSEA

Predicted Secondary Structure

Sequence	20 40 60 80 \| \| \| \| STDKEKSWLYTLDPILITIIAMSSLGVLLGATCAGLLLYCTCSYSGLSSRSCTTLENYNFELYDGLKHKVKMNHQKCCSEA
Prediction	CCCCCCCSSSSCCCHHHHHHHHHHHHHHHHHHHHHHHHSSSSCCCCCCCCCHHHHHHCCSSSSCCHHHHHHHCCCCCCCCC
Confidence	998888523542625767788878889999986523202232368877543235651373644151355542111121349
	H:Helix; S:Strand; C:Coil

Predicted Solvent Accessibility

Sequence	20 40 60 80 \| \| \| \| STDKEKSWLYTLDPILITIIAMSSLGVLLGATCAGLLLYCTCSYSGLSSRSCTTLENYNFELYDGLKHKVKMNHQKCCSEA
Prediction	877565411321333102023333322221331330000011334424554253156241422431455351556533578
	Values range from 0 (buried residue) to 8 (highly exposed residue)

Predicted Contact, Hydrogen and Distance Map Used in D-I-TASSER simulation

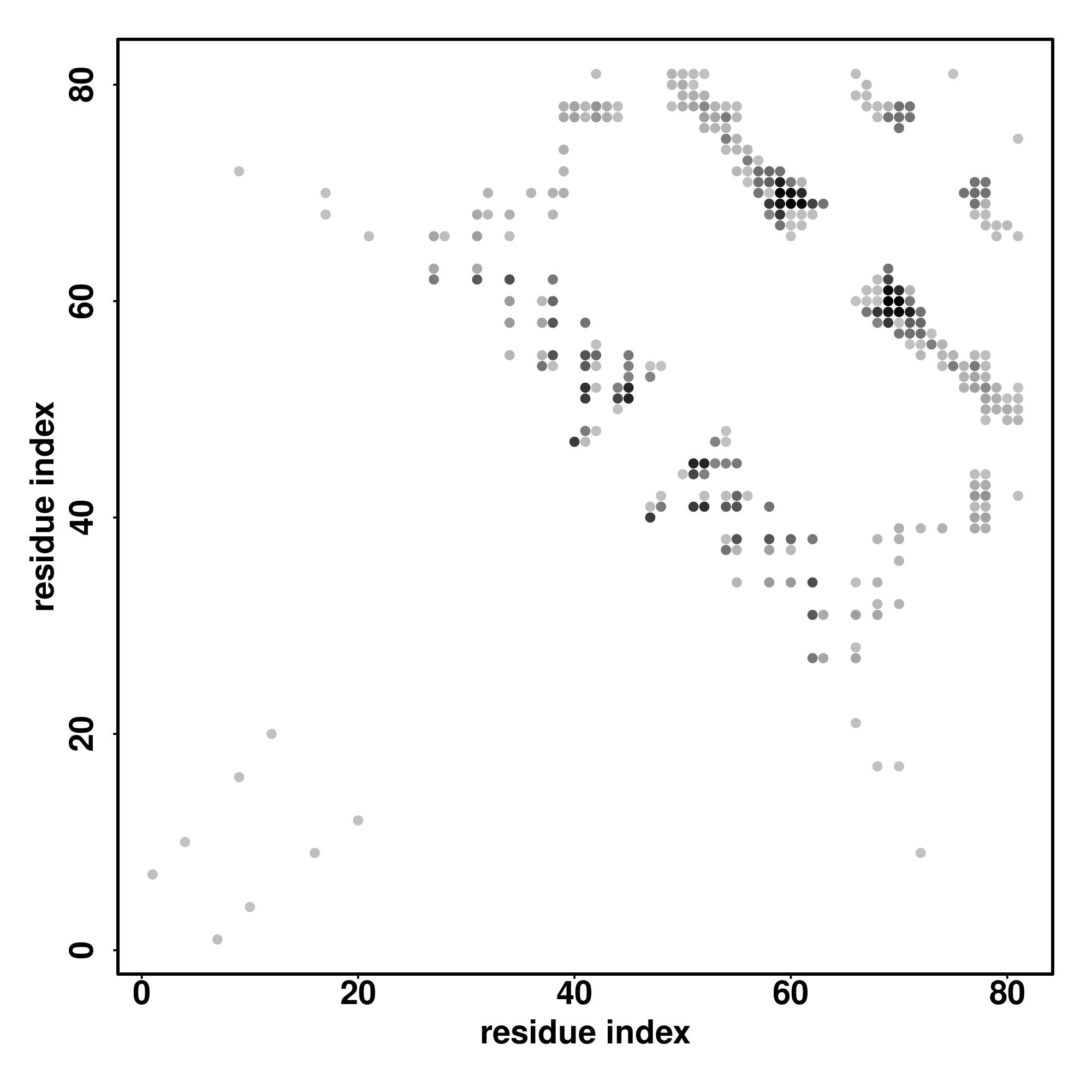

Contact Map

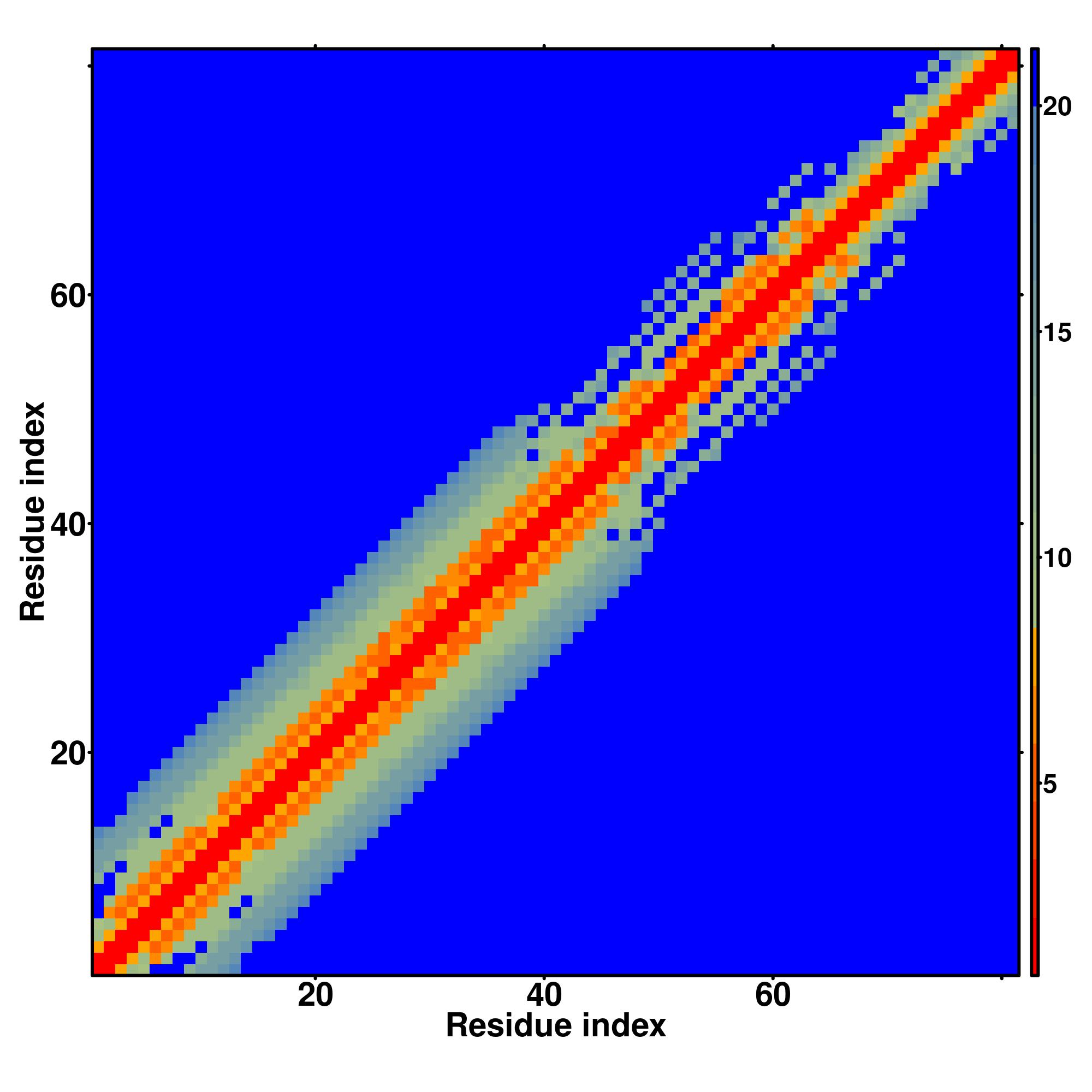

Distance Map

Hydrogen bond networks

D-I-TASSER simulation is guided by the consensus contact map (left figure), distance map (middle figure) and Hydrogen bond network (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Top 10 threading templates used by D-I-TASSER

Rank

PDB
hit

ID1

ID2

Cov

Norm.
Zscore

Download
alignment

                  20                  40                  60                  80

                   |                   |                   |                   |

SS
Seq

CCCCCCCSSSSCCCHHHHHHHHHHHHHHHHHHHHHHHHSSSSCCCCCCCCCHHHHHHCCSSSSCCHHHHHHHCCCCCCCCC
STDKEKSWLYTLDPILITIIAMSSLGVLLGATCAGLLLYCTCSYSGLSSRSCTTLENYNFELYDGLKHKVKMNHQKCCSEA

5aj3d

0.07

2.99

1.33

DEthreader

EARAAERKAQEDAAEHRELMAWNQAENQRLHELRLARLRQEAL-EQERRAEEAVLQAREAQAWAQLKEQEVLQLQEEAKTF

3j0fI2

0.01

1.21

0.43

CEthreader

HEIVQHYYHRHPVYTILAVASATVAMMIGVTVAVLCACKARRECLTPYALAPNAVIPTSLALLCCVRSANA----------

4hpqC

0.07

3.00

0.57

EigenThreader

EKLLENSRKFLTGAKLICQESNDHLTTTKLRIREWQKFQSKLHFVLDCIQQQTKFLSEILLREGIGRNLIEEEWSQTVLVR

4q65A2

0.08

0.05

1.93

0.36

FFAS-3D

VNTVPTAMFQSINAFAVMLCGKFALGLGLMSAGFCILTLSARWSAMYG---------------------------------

5u0p2

0.09

0.07

2.85

0.72

SPARKS-K

---MSLEEQRTRDELKHKLLDLNQLLKLLHPETNSFYTHLKSSNDTENNETKSINGKS------AKEPHHSEHDNDNF---

5gpjA

0.16

0.09

2.89

0.60

CNFpred

MSHRIRERTDALDAAGNTTAAIGKGFAIGSAALVSLALFGAFVSR------------------------------------

5lm1A

0.09

3.30

1.33

DEthreader

TE--VQYAAVRRVLSDLDQKWNSTLQTLVASYEAYEDLMKKSQEGR-DFADLESKVAALLERTQSTCQAREAARQQLLDRE

3wc3A

0.12

4.32

0.58

MapAlign

FRDSDAAFANNLLAHSRTLYDFALNGPNRYAANAAFIALVSAKYNILASESEQFARSQIHYMLGDAGRSYVVGFGNNPPQ-

2kluA

0.15

0.12

4.17

0.53

MUSTER

GPLVPRG--------SMALIVLGGVAGLLLFIGLGIFFSVRSRHRRRQAERMSQIKRLLSE-----KKTSQSPHQKTHSPI

3j0cA

0.15

0.07

2.51

0.60

HHsearch

VSKTAWTWLTSLLGGSAVIIIIGLV---LAT--IVAMY-VLTNQK----HN------------------------------

(a)	ID1 is the number of template residues identical to query divided by number of aligned residues.
(b)	ID2 is the number of template residues identical to query divided by query sequence length.
(c)	Cov is equal the number of aligned template residues divided by query sequence length.
(d)	Norm. Zscore is the normalized Z-score of the threading alignments. A Normalized Z-score >1 means a good alignment and is highlighted in bold.
(e)	Download alignment lists the threading program used to identify the template, and provide the 3D structure of aligned regions of threading templates (threading[1-10].pdb.gz).
(f)	Template residues identical to query sequence are highlighted in color.

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.584

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	4dylA1	0.69	3.32	0.037	1.000	model1_4dylA1.pdb.gz
2	2v0oA	0.69	2.84	0.063	0.951	model1_2v0oA.pdb.gz
3	2yfaA	0.69	2.51	0.039	0.901	model1_2yfaA.pdb.gz
4	6h7wB	0.69	2.95	0.112	0.963	model1_6h7wB.pdb.gz
5	3haiA	0.68	2.86	0.063	0.963	model1_3haiA.pdb.gz
6	3i9wA2	0.68	3.00	0.063	0.963	model1_3i9wA2.pdb.gz
7	3m3wA	0.68	2.77	0.050	0.938	model1_3m3wA.pdb.gz
8	3i9yA	0.67	2.94	0.103	0.926	model1_3i9yA.pdb.gz
9	3i2wB	0.67	2.76	0.039	0.938	model1_3i2wB.pdb.gz
10	5c1fA	0.67	2.79	0.076	0.938	model1_5c1fA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:0004872	0.59	receptor activity
GO:0004871	0.52	signal transducer activity
GO:0038023	0.51	signaling receptor activity
GO:0004888	0.50	transmembrane signaling receptor activity

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044763	1.00	single-organism cellular process
GO:0065007	0.94	biological regulation
GO:0050789	0.93	regulation of biological process
GO:0050794	0.92	regulation of cellular process
GO:0006928	0.89	movement of cell or subcellular component
GO:0048583	0.69	regulation of response to stimulus
GO:0016477	0.69	cell migration
GO:0048869	0.65	cellular developmental process
GO:0023051	0.65	regulation of signaling
GO:0010646	0.65	regulation of cell communication
GO:0009966	0.64	regulation of signal transduction
GO:0032502	0.62	developmental process
GO:0001755	0.62	neural crest cell migration
GO:0044767	0.57	single-organism developmental process
GO:0030154	0.57	cell differentiation
GO:0007411	0.57	axon guidance
GO:0030947	0.56	regulation of vascular endothelial growth factor receptor signaling pathway
GO:0001570	0.56	vasculogenesis

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0016020	0.91	membrane
GO:0005886	0.90	plasma membrane
GO:0097458	0.81	neuron part
GO:0030424	0.80	axon
GO:0044425	0.62	membrane part

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.125	3e7kH	0.505	1.74	0.100	0.593	2.7.11.1	36
2	0.091	1cxzB	0.551	2.07	0.081	0.679	2.7.11.13	37
3	0.071	2wieA	0.535	2.82	0.082	0.741	3.6.3.14	NA
4	0.066	1a91A	0.554	2.41	0.069	0.728	3.6.3.14	NA
5	0.060	2iw5A	0.615	2.43	0.025	0.815	1.-.-.-	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Click to view	Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
	1	0.03	1i490	0.659	2.90	0.066	0.926	0.43	III	complex1.pdb.gz	12,16,19,23,26,29,30,33,36,37,41,43,51,53,54,57
	2	0.02	3hajA	0.687	2.99	0.063	0.975	0.92	CA	complex2.pdb.gz	27,28,30,62,63

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
