D-I-TASSER O43763

D-I-TASSER results for O43763

[Click result.zip to download all results on this page]

Summary of the Protein

Uniprot ID: O43763
Protein Name: T-cell leukemia homeobox protein 2
Gene Name: TLX2

Input Sequence in FASTA format

>O43763 (284 residues)
MEPGMLGPHNLPHHEPISFGIDQILSGPETPGGGLGLGRGGQGHGENGAFSGGYHGASGY
GPAGSLAPLPGSSGVGPGGVIRVPAHRPLPVPPPAGGAPAVPGPSGLGGAGGLAGLTFPW
MDSGRRFAKDRLTAALSPFSGTRRIGHPYQNRTPPKRKKPRTSFSRSQVLELERRFLRQK
YLASAERAALAKALRMTDAQVKTWFQNRRTKWRRQTAEEREAERHRAGRLLLHLQQDALP
RPLRPPLPPDPLCLHNSSLFALQNLQPWAEDNKVASVSGLASVV

Predicted Contact and Distance Map Used in D-I-TASSER simulation

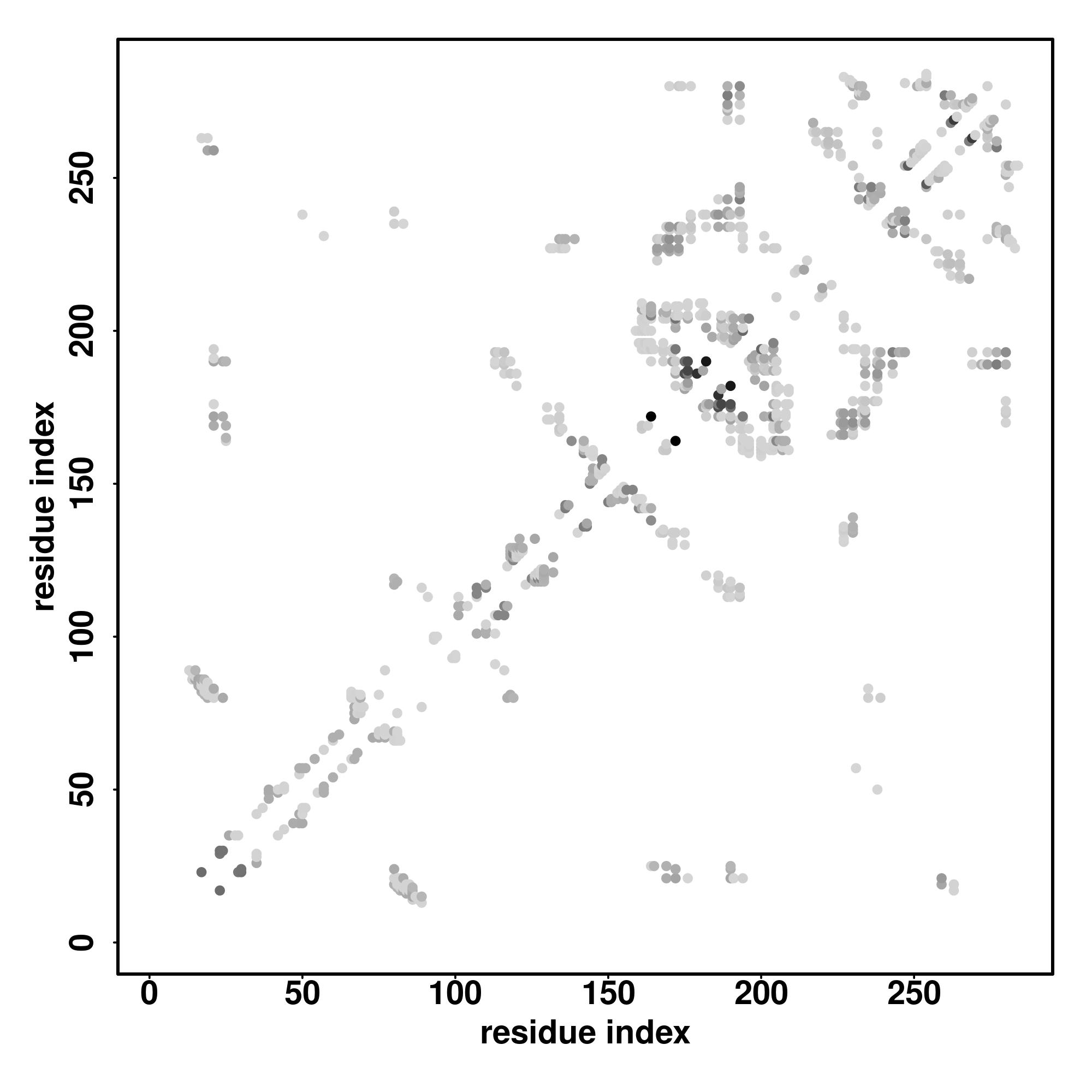

Contact Map

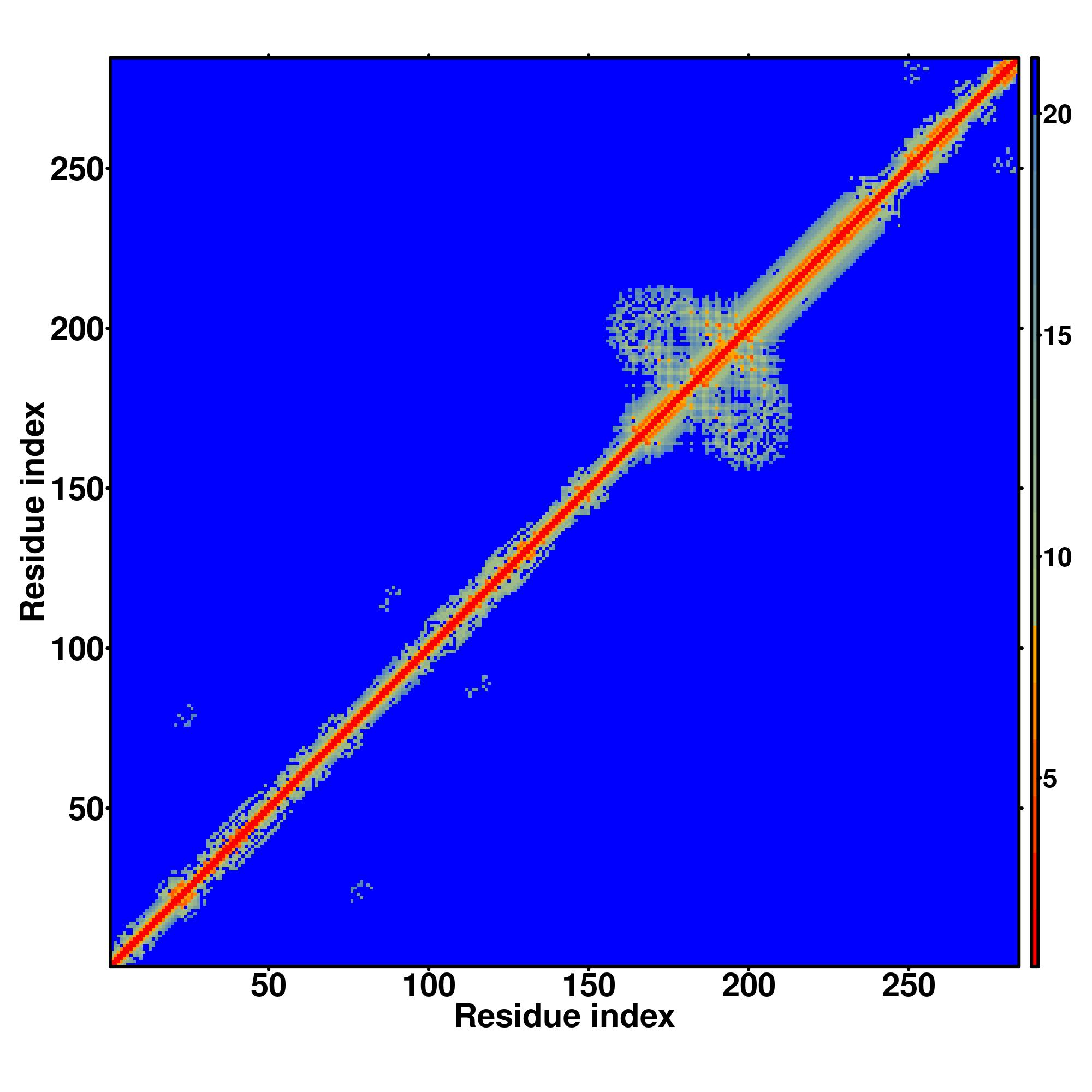

Distance Map

D-I-TASSER simulation is guided by the consensus contact map (left figure) and distance map (right figure) derived based on confidence scores of AttentionPotential. In the contact, distance map and hydrogen bond networks, the axes mark the residue index along the sequence. For the contact map, each dot represents a residue pair with predicted contact, while for the distance map and hydrogen bond network, a color scale represents a distance of 1-20+ angstroms or a angle of 0-180 degree.

Information of Domain

No. of Domain	Domain	Domain Boundary	Length of Domain	Models of Domain	Sequence
1	O43763-D1	1-284	284		MEPGMLGPHNLPHHEPISFGIDQILSGPETPGGGLGLGRGGQGHGENGAFSGGYHGASGYGPAGSLAPLPGSSGVGPGGVIRVPAHRPLPVPPPAGGAPAVPGPSGLGGAGGLAGLTFPWMDSGRRFAKDRLTAALSPFSGTRRIGHPYQNRTPPKRKKPRTSFSRSQVLELERRFLRQKYLASAERAALAKALRMTDAQVKTWFQNRRTKWRRQTAEEREAERHRAGRLLLHLQQDALPRPLRPPLPPDPLCLHNSSLFALQNLQPWAEDNKVASVSGLASVV

Top 1 final models from D-I-TASSER

Click to view	Rank^a	Download	Estimated TM-score^b
	1	model1.pdb.gz	0.5654

(a)

D-I-TASSER simulations generate a large ensemble of structural conformations, i.e. decoys. These decoys are clustered by SPICKER based on pairwise structure similarity to report up to five final models from the five largest clusters. Models are ranked in descending order of cluster size. If the simulations converge well, it is possible to have less than 5 models generated, which is usually an indication of good model quality.

(b)

The model confidence is quantitatified by estimated TM-score (eTM-score), calculated based on significance of threading template alignments, contact map satisfaction rate, mean absolute error between distance of model and distance of AttentionPotential, and convergence of D-I-TASSER simulations. eTM-score is typically in the range of [0, 1], with higher eTM-score signifies higher model confidence.

Proteins with similar structure

Top 10 structural analogs in PDB (as identified by TM-align)

Rank	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	Download Alignment
1	3kdpA	0.46	5.72	0.046	0.718	model1_3kdpA.pdb.gz
2	3ixzA	0.46	5.54	0.031	0.708	model1_3ixzA.pdb.gz
3	1st6A	0.44	5.15	0.045	0.648	model1_1st6A.pdb.gz
4	3ba6A	0.43	5.62	0.056	0.662	model1_3ba6A.pdb.gz
5	6rqgA	0.42	5.37	0.042	0.648	model1_6rqgA.pdb.gz
6	5hb4B	0.42	5.64	0.040	0.665	model1_5hb4B.pdb.gz
7	4ii2A	0.42	6.46	0.055	0.739	model1_4ii2A.pdb.gz
8	4zhjA	0.42	6.13	0.032	0.701	model1_4zhjA.pdb.gz
9	3cmmC	0.42	6.35	0.058	0.715	model1_3cmmC.pdb.gz
10	6kldA	0.41	6.24	0.049	0.687	model1_6kldA.pdb.gz

(a)	Query structure is shown in cartoon, while the structural analog is displayed using backbone trace.
(b)	Ranking of proteins is based on TM-score of the structural alignment between the query structure and known structures in the PDB library.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of the alignment by TM-align and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Gene Ontology (GO) Terms

Molecular Function (MF)

GO term	Cscore^GO	Name
GO:1901363	0.82	heterocyclic compound binding
GO:0097159	0.82	organic cyclic compound binding
GO:0003676	0.78	nucleic acid binding
GO:0003677	0.77	DNA binding
GO:0003700	0.71	transcription factor activity, sequence-specific DNA binding
GO:0043565	0.62	sequence-specific DNA binding
GO:0044212	0.55	transcription regulatory region DNA binding
GO:0000976	0.50	transcription regulatory region sequence-specific DNA binding

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Molecular Function. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Biological Process (BP)

GO term	Cscore^GO	Name
GO:0044699	0.85	single-organism process
GO:0065007	0.83	biological regulation
GO:0050789	0.82	regulation of biological process
GO:0032502	0.80	developmental process
GO:0050794	0.79	regulation of cellular process
GO:0009987	0.72	cellular process
GO:0044767	0.70	single-organism developmental process
GO:0019222	0.68	regulation of metabolic process
GO:0080090	0.67	regulation of primary metabolic process
GO:0060255	0.67	regulation of macromolecule metabolic process
GO:0031323	0.67	regulation of cellular metabolic process
GO:0010468	0.66	regulation of gene expression
GO:2000112	0.65	regulation of cellular macromolecule biosynthetic process
GO:0051252	0.65	regulation of RNA metabolic process
GO:0006355	0.64	regulation of transcription, DNA-templated
GO:0048856	0.63	anatomical structure development
GO:0044763	0.55	single-organism cellular process
GO:0006357	0.50	regulation of transcription from RNA polymerase II promoter

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Biological Process. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Cellular Component (CC)

GO term	Cscore^GO	Name
GO:0044464	1.00	cell part
GO:0044424	0.99	intracellular part
GO:0043231	0.92	intracellular membrane-bounded organelle
GO:0005634	0.91	nucleus

Download full result of the above consensus prediction.

Click the graph to show a high resolution version.

(a)

Cscore^GO is the confidence score of predicted GO terms. Cscore^GO values range in between [0-1]; where a higher value indicates a better confidence in predicting the function using the template.

(b)

The graph shows the predicted terms within the Gene Ontology hierachy for Cellular Component. Confidently predicted terms are color coded by Cscore^GO:

[0.4,0.5)

[0.5,0.6)

[0.6,0.7)

[0.7,0.8)

[0.8,0.9)

[0.9,1.0]

Predicted Enzyme Commission (EC) Numbers

Top 5 enzyme homologs in PDB

Rank	Cscore^EC	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	EC Number	Predicted Active Site Residues
1	0.060	1gq2A	0.374	6.12	0.057	0.627	1.1.1.40	NA
2	0.060	3d3lA	0.380	6.10	0.051	0.620	1.13.11.31	NA
3	0.060	2iukA	0.339	6.93	0.036	0.620	1.13.11.12	NA
4	0.060	2dvmA	0.395	6.22	0.110	0.665	1.1.1.38	NA
5	0.060	3f9mA	0.383	5.92	0.055	0.620	2.7.1.2	NA

	Click on the radio buttons to visualize predicted active site residues.
(a)	Cscore^EC is the confidence score for the Enzyme Commission (EC) number prediction. Cscore^EC values range in between [0-1]; where a higher score indicates a more reliable EC number prediction.
(b)	TM-score is a measure of global structural similarity between query and template protein.
(c)	RMSD^a is the RMSD between residues that are structurally aligned by TM-align.
(d)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(e)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

Predicted Ligand Binding Sites

Template proteins with similar binding site:

Rank	Cscore^LB	PDB Hit	TM-score	RMSD^a	IDEN^a	Cov.	BS-score	Lig. Name	Download Complex	Predicted binding site residues
1	0.01	1t01A	0.320	5.56	0.060	0.493	0.19	III	complex1.pdb.gz	223,227,230,234,238,239
2	0.01	2o9jA	0.445	5.39	0.037	0.683	0.16	CZA	complex2.pdb.gz	24,25,45,49
3	0.01	1zw3A	0.311	5.59	0.048	0.482	0.17	III	complex3.pdb.gz	222,225,229,233,236
4	0.01	2easA	0.451	5.28	0.045	0.683	0.14	CZA	complex4.pdb.gz	25,75,77,78
5	0.01	3tj6A	0.304	5.99	0.072	0.496	0.21	III	complex5.pdb.gz	14,20,24,27,30,45
6	0.01	3rf3A	0.327	5.63	0.047	0.507	0.21	III	complex6.pdb.gz	220,224,227,228,231,234,235,238
7	0.01	3tj5A	0.317	5.66	0.047	0.496	0.13	III	complex7.pdb.gz	79,235,238
8	0.01	2ibfA	0.315	5.72	0.045	0.496	0.15	III	complex8.pdb.gz	7,8,9,10,12,13,16,20,21,24

	Click on the radio buttons to visualize predicted binding site and residues.
(a)	Cscore^LB is the confidence score of predicted binding site. Cscore^LB values range in between [0-1]; where a higher score indicates a more reliable ligand-binding site prediction.
(b)	BS-score is a measure of local similarity (sequence & structure) between template binding site and predicted binding site in the query structure. Based on large scale benchmarking analysis, we have observed that a BS-score >1 reflects a significant local match between the predicted and template binding site.
(c)	TM-score is a measure of global structural similarity between query and template protein.
(d)	RMSD^a the RMSD between residues that are structurally aligned by TM-align.
(e)	IDEN^a is the percentage sequence identity in the structurally aligned region.
(f)	Cov. represents the coverage of global structural alignment and is equal to the number of structurally aligned residues divided by length of the query protein.

[Click result.zip to download all results on this page]

References:
1.	Wei Zheng, Chengxin Zhang, Yang Li, Robin Pearce, Eric W. Bell, Yang Zhang. Folding non-homology proteins by coupling deep-learning contact maps with I-TASSER assembly simulations. In preparation, 2020.
